Sync records for a record created from materialized view

Certified Associate Developer

Issue with Dynamic Identifiers in Materialized View Causing Sync Failures

We are consuming data from an external view that only returns records where:

  • BPM_PROCESSING_STATUS IS NULL
  • BPM_CASEID IS NULL

This external view is built on top of a base table that contains all records.


Current Implementation

  • When a case is created in Appian, we update the base table using a Query Database Smart Service, populating:

    • BPM_CASEID
    • BPM_PROCESSING_STATUS (e.g., PENDINGFORAPPROVAL, REFERREDBACK, PROCESSED)
  • Since we do not have access to define a primary key on the source table/view (due to grant restrictions), we:

    1. Created a Materialized View on top of the external view
    2. Added a synthetic identifier column:
      SQL
      1
      ROW_NUMBER() OVER (ORDER BY UNIQUE_ID) AS ID
      Show more lines
    3. Built an Appian Record Type using this materialized view (to leverage record filters, etc.)
    4. Created a stored procedure to refresh the materialized view
    5. Used:
      • Execute Stored Procedure Smart Service
      • Sync Records Smart Service

Problem

The identifier (ROW_NUMBER) is not stable.

  • Initially, suppose we have 3000345 records
  • When cases are created for some UINs, those records are updated in the base table
  • As a result, they no longer satisfy the condition (BPM_CASEID IS NULL, BPM_PROCESSING_STATUS IS NULL)
  • Hence, they disappear from the external view and the materialized view

Example:

  • Record count reduces from 3000345 → 3000335
  • Previously generated IDs such as:
    • 3000271, 3000313, 3000341
  • After refresh:
    • Some of these IDs (e.g., 3000341) no longer exist

Impact

  • The Record Type identifier changes dynamically
  • When we run Sync Records, Appian attempts to sync using old identifiers
  • Since those IDs no longer exist, sync fails

Attempted Workaround

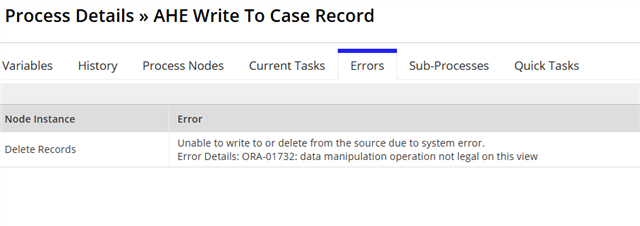

  • Tried using Delete Record Smart Service
  • However, deletion is not allowed since the source is a materialized view

Key Concern

We need a way to:

  • Refresh the record data immediately
  • Ensure users do not create duplicate cases for the same UIN

Question

Is there a recommended approach in Appian to handle:

  1. Dynamic datasets where records disappear after updates
  2. Unstable identifiers (ROW_NUMBER-based)
  3. Immediate refresh/sync of record data
  4. Preventing duplicate case creation for the same UIN



  Discussion posts and replies are publicly visible

Parents
  • 0
    Certified Lead Developer

    Use a stable source key (UNIQUE_ID/UIN) as the record identifier - ROW_NUMBER() changes on every refresh, which is why sync fails. Appian only needs the key to be unique, non-null, and stable, not a real primary key.
    Keep all rows in the source and add a status column to mark them processed instead of filtering them out.
    Use record filters to hide processed rows. This stops records from disappearing, so sync never references missing Ids and avoids Delete Records, which can't run on a materialized view.
    Enforce UIN uniqueness in the database or stored procedure, not in Appian sync logic.

Reply
  • 0
    Certified Lead Developer

    Use a stable source key (UNIQUE_ID/UIN) as the record identifier - ROW_NUMBER() changes on every refresh, which is why sync fails. Appian only needs the key to be unique, non-null, and stable, not a real primary key.
    Keep all rows in the source and add a status column to mark them processed instead of filtering them out.
    Use record filters to hide processed rows. This stops records from disappearing, so sync never references missing Ids and avoids Delete Records, which can't run on a materialized view.
    Enforce UIN uniqueness in the database or stored procedure, not in Appian sync logic.
