SharePoint Integration - Client Credentials + Certificate

Hello,

We are currently integrating Appian with our SharePoint Online tenant. We created a SPN with delegated permissions in Azure as stated in your documentation (https://docs.appian.com/suite/help/25.1/Integrating_Sharepoint_with_Appian_CS.html).

That integration works fine with Authorization Code authentication (Client ID + Secret)

https://docs.appian.com/suite/help/25.1/sharepoint-connected-system.html#sharepoint-authorization-code-authentication

but this is not the authentication mechanism we would like to use. Our goal is to use Client Credentials with a certificate: (https://docs.appian.com/suite/help/25.1/sharepoint-connected-system.html#sharepoint-client-credentials-entra-id-authentication)

We generated a certificate and got all the requested information: private key in pem format, thumbprint, etc.

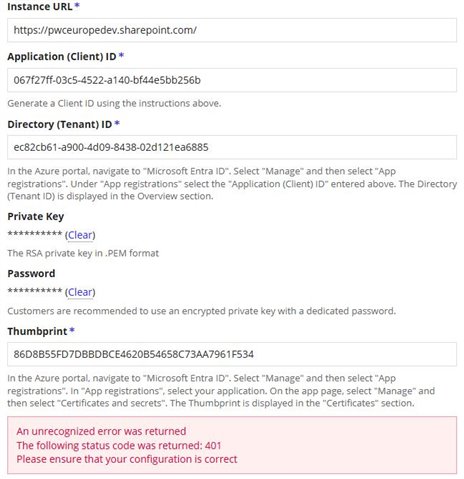

The authentication is failing with 401 error:

If we change the delegated permissions to application permissions, then it works fine:

Our preference is to use delegated permissions so user permissions are used to access the sharepoint site and the app can only read / write sites the user has access to. Could you explain us how we can make it work with delegated permissions ?

Thanks for your help,

Joachim
