Hello, I am working on an integration where I need to set a custom value for "boundary". The HTTP request is of Content-Type: multipart form data. The other system expects the boundary value to be "cpi".

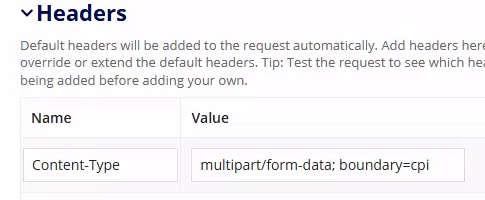

In Headers, I set Content-Type as "multipart/form-data; boundary=cpi". However, in the HTTP request that Appian generates, Appian seems to be using a random boundary value, and ignoring the value that I have set.

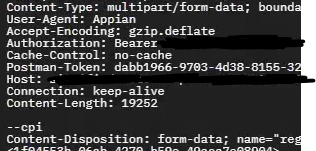

HTTP request that I see:
I see this data in API trace logs.
The integration works through Postman, and I see the correct boundary set. Postman screenshot.
Thank you in advance for your help.
Regards,Harish
Discussion posts and replies are publicly visible
By the specification, the boundary can be any string. Expecting a specific value is not a good idea.
ChatGPT knows this:
In an HTTP `multipart/form-data` request, the boundary is a crucial component that separates different parts of the data being sent. Here are the key requirements and considerations regarding the boundary:
1. **Unique Boundary**: The boundary string must be unique within the content being sent. It should not appear in the actual data to avoid confusion in parsing.
2. **Format**: The boundary string must start with two hyphens (`--`). For example, if the boundary is `myBoundary`, it should be represented as `--myBoundary` at the beginning of each part.
3. **Content-Type Header**: The boundary must be specified in the `Content-Type` header of the request. The header should look like this: ``` Content-Type: multipart/form-data; boundary=myBoundary ```
4. **Length**: The boundary string should be reasonably short but long enough to ensure uniqueness. A common practice is to use a random string or a combination of characters that is unlikely to appear in the data.
5. **Termination**: The last boundary must be followed by an additional two hyphens to indicate the end of the multipart data. For example: ``` --myBoundary-- ```
6. **Character Set**: The boundary string can include any ASCII characters except for control characters and the delimiter characters (such as space, tab, and the hyphen itself). It is common to use alphanumeric characters and some special characters.
7. **No Whitespace**: The boundary string should not contain any whitespace characters.
By adhering to these requirements, the multipart data can be correctly parsed by the server receiving the request.
Thank you Harsha Sharma and Stefan Helzle for your replies.
As per HTTP specification, user / user agent should be able to specify the boundary / override the value Appian sets. I would infer the same from how Postman works.
In this integration that I am working on, the external system expects 'cpi' as boundary value as the data shared is fairly well defined. I guess it now becomes more of an Appian tech support question, if they can factor in this input.
