I have a process where I have two script nodes. The First creates a parent record type and stores it to a PV!:
'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance'( 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{707eb7ae-ea9f-446e-9f88-d818ff7227fb}parentType': typename(typeof(pv!event)), 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{74c50dc1-dd17-43f3-92b6-98bf5753125a}parentId': pv!eventId, 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{c939f3ac-6a45-4ca5-9441-44aa056523ca}targetCompletionDate': pv!event['recordType!{f07fa26e-a28d-44ca-ab58-7ba4db20200b}WPA1 Event.fields.{987c7817-ad5b-4c64-b91e-0ab1087a91ea}endDate'], 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{d18891c0-c267-4d9a-8370-4bb662b7be83}createdBy': loggedInUser(), 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{d2bbcf03-34b1-431a-8ca5-8228506a444a}createdOn': now(), 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{bd6e3937-0113-48bd-b62f-22e2f1b3b12f}modifiedBy': loggedInUser(), 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{11f44723-e150-4e68-ba0a-1a06096682ea}modifiedOn': now(), 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{bd5f02c8-e3b6-41e7-aa0a-57469ad481e9}isActive': "false", 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{93b08b29-87c8-4a1f-a46f-7245e8f03587}statusId': 1, 'recordType!{f68fc74f-edcf-4bec-b576-6aa21d7ae8df}WPA1 Workflow Instance.fields.{506fae0f-ba80-4b84-b95b-6bf96a442528}workflowTemplateId': pv!workflowTemplate['recordType!{bb035f50-d14a-4303-9c20-48d3e48deab0}WPA1 Workflow Template.fields.{900e52c7-75ad-4e6c-85ef-6359c8362fc8}id'] )
Next I have and MNI Process Script which builds related records and appends them to the related record list of the record above:
'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance'( 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.relationships.{d25c8435-93f4-4b34-abad-05cbcba1af32}workflowInstance': pv!workflowInstance, 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.fields.{3386d000-5e7d-44fe-8d2a-ed6a4894e167}taskTemplateId': ac!templateTask['recordType!{26443545-ab3d-444f-9cd1-fbb7ce8d789a}WPA1 Task Template.fields.{59029bb2-8b0f-458e-88cb-14f4d2d18946}id'], 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.fields.{adf3c23e-9ba1-4445-ae28-8936f5c44f43}startDate': a!subtractDateTime( startDateTime: pv!event['recordType!{f07fa26e-a28d-44ca-ab58-7ba4db20200b}WPA1 Event.fields.{987c7817-ad5b-4c64-b91e-0ab1087a91ea}endDate'], days: ( 7 * ac!templateTask['recordType!{26443545-ab3d-444f-9cd1-fbb7ce8d789a}WPA1 Task Template.fields.{d5a9a527-bbff-429d-9849-e10b960214e4}assignedWeek'] + ac!templateTask['recordType!{26443545-ab3d-444f-9cd1-fbb7ce8d789a}WPA1 Task Template.fields.{784ab85a-387c-4967-b018-dd9adddacab2}durationDays'] ) ), 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.fields.{021e528c-060d-4eda-8bf6-d2752fc81441}dueDate': a!subtractDateTime( startDateTime: pv!event['recordType!{f07fa26e-a28d-44ca-ab58-7ba4db20200b}WPA1 Event.fields.{987c7817-ad5b-4c64-b91e-0ab1087a91ea}endDate'], days: 7 * ac!templateTask['recordType!{26443545-ab3d-444f-9cd1-fbb7ce8d789a}WPA1 Task Template.fields.{d5a9a527-bbff-429d-9849-e10b960214e4}assignedWeek'] ), 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.fields.{2866d3a9-4513-4c8c-8d73-4b84cc901bbc}name': ac!templateTask['recordType!{26443545-ab3d-444f-9cd1-fbb7ce8d789a}WPA1 Task Template.fields.{69cdc449-1e76-4725-8192-7a846f2ece52}name'], 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.fields.{fb95b4cf-a710-433a-9985-c51f1fc0a9d1}description': ac!templateTask['recordType!{26443545-ab3d-444f-9cd1-fbb7ce8d789a}WPA1 Task Template.fields.{51bb04e4-0885-412c-a597-5a811a2e1ac3}description'], 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.fields.{34de3af6-707a-4e2e-8aeb-4a5068aca485}createdBy': loggedInUser(), 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.fields.{24e8cbf2-6e65-4147-912c-356d56ee09e9}createdOn': now(), 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.fields.{2e064add-6ec2-4045-b89f-f7334e62a237}modifiedBy': loggedInUser(), 'recordType!{95d43233-0ac2-44c2-a213-4217c2782a30}WPA1 Task Instance.fields.{6c9b73fe-ab0d-40d7-998a-6c3f4b62bab1}modifiedOn': now() )

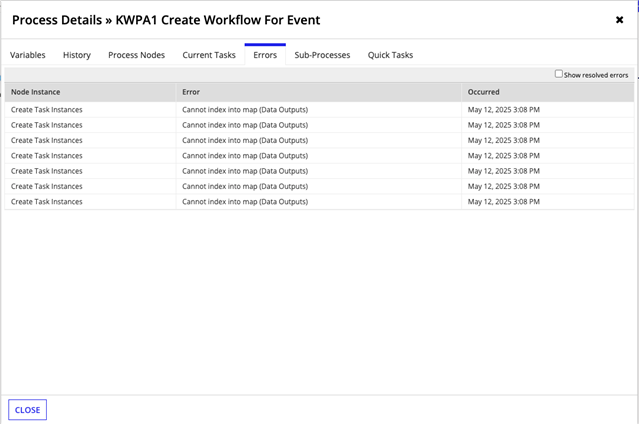

When i execute this process however the MNI Process is failing with the following errors:
I'm not referencing any maps that I know of, so I'm not sure where to look to solve this issue.
Any idea where my issue is?
Discussion posts and replies are publicly visible
Why do you need to do this via MNI in a script task instead of a forEach in an expression rule?
Seems that some of the instances is receiving a null.... check it...
To better debug this and for future scalability as well I would suggest you create an expression rule for the script tasks expression.
You can pass pv!event, pv!eventIId etc all the process variables, configure the code using a!foreach() and test that your expression rule works as expected with null handlings, date formats etc so that it returns expected output always.
Hi,

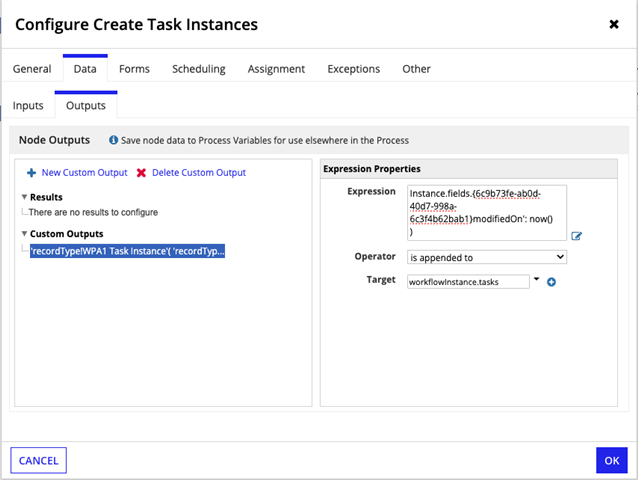

From what I can tell, the issue is related to using "is appended to list" in the output of a node that is configured as a Multiple Node Instance (MNI) with the "Run all instances at the same time" option enabled.
When this setting is used, all node instances execute in parallel, and if they all try to append to the same process variable simultaneously, you can run into race conditions.
Instead of "is appended to list", switch to "is stored at index" and store each result at tp!instanceIndex. This ensures each instance writes to a specific index in the array, avoiding concurrency issues.
tp!instanceIndex
As Mathie and Harsa mentioned, it’s usually better to avoid MNI altogether for these scenarios. Using a!forEach() in a script task or expression rule is much safer and more maintainable, since it runs sequentially and avoids shared variable conflicts.
a!forEach()
Hope this helps!
Thanks for all the tips and areas to look for. I'm currently working on a POC / Demo project just learning the ins and outs for our future projects. I specifically was trying out the MNI approach. I'm going to continueto work on that approach for my understanding even though I fully agree the foreach method separated into it's own rule would be the most scalable / maintainable approach in the future for this specific situation.
Alberto, this change fixed my issue right away. Thanks.
