Hi Martin Rodriguez   couple of questions from my side

• Where are you doing this in the interface Rule inputs?
  If yes, then you are mapping it in the wrong way. The field you use to save the value must be configured in its value and saveInto fields with recordType!yourrecord.relationship.relatedrecord.fields.fieldValue.
• Did you establish mapping between the parent record and the child record?

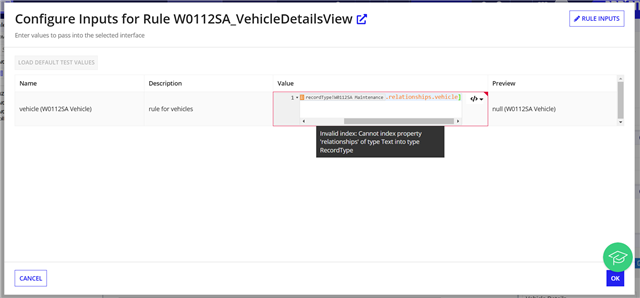

Hi! I'm doing it when I drag and drop the previous interface I previously created (W#SA_VehicleDetailsView) into the Vehicle Details section. That's when the Configure Inputs dialog appears and I'm supposed to write the expression that you see in the screencapture.
Also, when typing 'relationships' the only options I'm given are 'eventHistory' and 'subscriber'

Need see your interface code please

W0112SA_MaintenanceRequest

From the above image, you can see there is a tab called expression, could you click that tab on your interface, and post the code please

a!formLayout(
label: "New Maintenance Request",
contents: {
a!sectionLayout(
contents: {}
),
a!sectionLayout(
label: "Vehicle Details",
contents: {}
)
},
buttons: a!buttonLayout(
primaryButtons: {
a!buttonWidget(
label: "Submit",
submit: true,
style: "SOLID"
)
},
secondaryButtons: {
a!buttonWidget(
label: "Cancel",
value: true,
saveInto: ri!cancel,
submit: true,
style: "OUTLINE",
validate: false
)
}
)
)

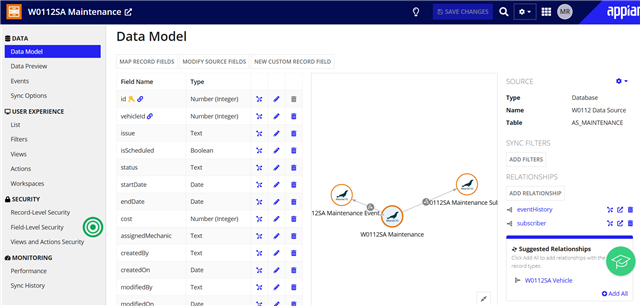

Can you open  check the record type? W0112SA_MaintenanceRequest  is that is having any relationship

Yes, however the record type is W0112SA Maintenance, W0112SA_MaintenanceRequest is the name of the interface.

Hello Martin Rodriguez , It looks like you are passing the type instead of the value. Construct the record values. This is a rule input for Interface from what it looks like. You need to either pass a value or leave it blank and not just pass the record type.

Thank you. How can I do that? Do I have to go back and modify the record type?
