Vertical milestone suggestion

Certified Senior Developer

Hi Team,

if I configure the horizontal milestone it looks good like having more length in between values,

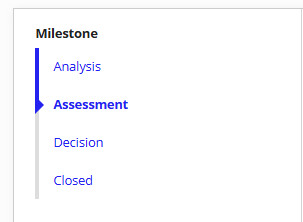

but have a requirement same style we need to achieve in vertical style

 '

but here we can increase length of each value like how we have in horizontal ,

please suggest me better approach,

Thanks

  Discussion posts and replies are publicly visible

Top Replies

Parents
  • 0
    Certified Lead Developer

    As a!milestoneField() has default horizontal orientation.
    So for your requirement you need to build custom UI.

    Check below interface code for your reference

    {
      a!localVariables(
        local!verticalSteps: {
          a!map(name: "Analysis",      isCompleted: true, isActive:false),
          a!map(name: "Assessment", isCompleted: false, isActive:true),
          a!map(name: "Decision",     isCompleted: false, isActive:false),
          a!map(name: "Closed",             isCompleted: false, isActive:false)
        },
        /* Style Configuration */
        local!activeColor: "ACCENT",
        /* Blue/Purple */
        local!inactiveColor: "#D1D5DB",
        a!sectionLayout(
          label: "Milestone",
          labelSize: "MEDIUM",
          labelColor: "STANDARD",
          contents: {
            a!forEach(
              items: local!verticalSteps,
              expression: {
                a!columnsLayout(
                  columns: {
                    a!columnLayout(
                      contents: {
                        if(
                          fv!item.isCompleted,
                          a!richTextDisplayField(
                            align: "CENTER",
                            value: {
                              /* Circle Icon */
                              a!richTextItem(
                                text:"⬤",
                                size: "MEDIUM_PLUS",
                                color:local!activeColor,
                                style: "STRONG"
                                )
                            }
                          ),
                          if(
                            fv!item.isActive,
                          a!richTextDisplayField(
                            align: "CENTER",
                            value: {
                              /* Circle Icon */
                              a!richTextItem(
                                text:"𐤏",
                                size: "MEDIUM_PLUS",
                                color:local!activeColor,
                                style: "STRONG"
                              )
                            }
                          ),
                          a!richTextDisplayField(
                            align: "CENTER",
                            value: {
                              /* Circle Icon */
                              a!richTextItem(
                                text:"○",
                                size: "MEDIUM_PLUS",
                                color:local!inactiveColor
                              )
                            }
                          )
                          )
                        )
                      },
                      width: "EXTRA_NARROW"
                    ),
                    a!columnLayout(
                      contents: {
                        a!richTextDisplayField(
                          labelPosition: "COLLAPSED",
                          value: {
                            a!richTextItem(
                              text: fv!item.name,
                              size: "STANDARD",
                              style: if(
                               or(fv!item.isCompleted,fv!item.isActive),
                                "STRONG",
                                "PLAIN"
                              )
                            )
                          },
                          preventWrapping: true,
                          marginBelow: "NONE"
                        )

                      }
                    )
                  },
                  alignVertical: "MIDDLE",
                  marginAbove: if(
                    fv!isFirst,
                    "STANDARD",
                    "NONE"
                  ),
                  marginBelow: "NONE",
                  spacing: "NONE",
                  stackWhen: "NEVER"
                ),
                a!columnsLayout(
                  columns: {
                    a!columnLayout(
                      contents: {
                        a!imageField(
                          labelPosition: "COLLAPSED",
                          images: {
                            a!documentImage(
                              document: a!EXAMPLE_VERTICAL_CONNECTOR_IMAGE()
                            )
                          },
                          size: "TINY",
                          align: "CENTER",
                        )
                      },
                      width: "EXTRA_NARROW"
                    ),
                    a!columnLayout()
                  },
                  alignVertical: "MIDDLE",
                  showWhen: not(fv!isLast),
                  marginBelow: "NONE",
                  spacing: "NONE",
                  stackWhen: "NEVER"
                )
              }
            )
          }
        )
      )
    }




Reply
  • 0
    Certified Lead Developer

    As a!milestoneField() has default horizontal orientation.
    So for your requirement you need to build custom UI.

    Check below interface code for your reference

    {
      a!localVariables(
        local!verticalSteps: {
          a!map(name: "Analysis",      isCompleted: true, isActive:false),
          a!map(name: "Assessment", isCompleted: false, isActive:true),
          a!map(name: "Decision",     isCompleted: false, isActive:false),
          a!map(name: "Closed",             isCompleted: false, isActive:false)
        },
        /* Style Configuration */
        local!activeColor: "ACCENT",
        /* Blue/Purple */
        local!inactiveColor: "#D1D5DB",
        a!sectionLayout(
          label: "Milestone",
          labelSize: "MEDIUM",
          labelColor: "STANDARD",
          contents: {
            a!forEach(
              items: local!verticalSteps,
              expression: {
                a!columnsLayout(
                  columns: {
                    a!columnLayout(
                      contents: {
                        if(
                          fv!item.isCompleted,
                          a!richTextDisplayField(
                            align: "CENTER",
                            value: {
                              /* Circle Icon */
                              a!richTextItem(
                                text:"⬤",
                                size: "MEDIUM_PLUS",
                                color:local!activeColor,
                                style: "STRONG"
                                )
                            }
                          ),
                          if(
                            fv!item.isActive,
                          a!richTextDisplayField(
                            align: "CENTER",
                            value: {
                              /* Circle Icon */
                              a!richTextItem(
                                text:"𐤏",
                                size: "MEDIUM_PLUS",
                                color:local!activeColor,
                                style: "STRONG"
                              )
                            }
                          ),
                          a!richTextDisplayField(
                            align: "CENTER",
                            value: {
                              /* Circle Icon */
                              a!richTextItem(
                                text:"○",
                                size: "MEDIUM_PLUS",
                                color:local!inactiveColor
                              )
                            }
                          )
                          )
                        )
                      },
                      width: "EXTRA_NARROW"
                    ),
                    a!columnLayout(
                      contents: {
                        a!richTextDisplayField(
                          labelPosition: "COLLAPSED",
                          value: {
                            a!richTextItem(
                              text: fv!item.name,
                              size: "STANDARD",
                              style: if(
                               or(fv!item.isCompleted,fv!item.isActive),
                                "STRONG",
                                "PLAIN"
                              )
                            )
                          },
                          preventWrapping: true,
                          marginBelow: "NONE"
                        )

                      }
                    )
                  },
                  alignVertical: "MIDDLE",
                  marginAbove: if(
                    fv!isFirst,
                    "STANDARD",
                    "NONE"
                  ),
                  marginBelow: "NONE",
                  spacing: "NONE",
                  stackWhen: "NEVER"
                ),
                a!columnsLayout(
                  columns: {
                    a!columnLayout(
                      contents: {
                        a!imageField(
                          labelPosition: "COLLAPSED",
                          images: {
                            a!documentImage(
                              document: a!EXAMPLE_VERTICAL_CONNECTOR_IMAGE()
                            )
                          },
                          size: "TINY",
                          align: "CENTER",
                        )
                      },
                      width: "EXTRA_NARROW"
                    ),
                    a!columnLayout()
                  },
                  alignVertical: "MIDDLE",
                  showWhen: not(fv!isLast),
                  marginBelow: "NONE",
                  spacing: "NONE",
                  stackWhen: "NEVER"
                )
              }
            )
          }
        )
      )
    }
