I have created a web api for uploading documents into appian application
a!localVariables( local!body:http!request.body, local!key: http!request.pathSegments, local!keyNumber:regexfirstmatch(pattern: "\d+", searchString: local!key), local!requestStructure: rule!PRE_FormatRcoDocumentRequestFromMyWorldRequest(jsonRequest: todocument(local!body), key: local!key), if( or( a!isNullOrEmpty(local!requestStructure), a!isNullOrEmpty(local!key) ), a!httpResponse( statusCode: 400, headers: { a!httpHeader( name: "Content-Type", value: "application/json" ) }, body: a!toJson(a!map(error: local!requestStructure)) ), a!startProcess( processModel: cons!PRE_PM_UPLOAD_DOCUMENTS, processParameters: { uploadDocuments:local!requestStructure, intakeMain:'recordType!{9228ede4-797f-443e-ba77-59aeed242b7a}PRELUDE Intake Main'( 'recordType!{9228ede4-797f-443e-ba77-59aeed242b7a}PRELUDE Intake Main.fields.{61b2bc9e-c8e3-4635-bde7-b9c829a75682}idIntakeMain': local!key ) }, isSynchronous: true(), onSuccess: a!httpResponse( statusCode: 200, headers: { a!httpHeader( name: "Content-Type", value: "application/json" ) }, body: if( a!isNotNullOrEmpty(fv!processInfo), a!toJson( { rule!PRE_CreateResponseForMyWorldRcoComment(fv!processInfo.pv.RecordsUpdated), } ), null() ) ), onError: a!httpResponse( statusCode: 500, headers: { a!httpHeader( name: "Content-Type", value: "application/json" ) }, body: a!toJson( { error: "There was an error starting the process" } ) ) ) ), )

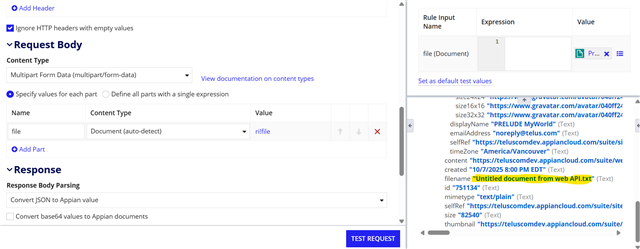

In this scenario png file is getting converted as txt and following text is getting added into the file(I have attached the file for more clarification)
--TnQmfygKfP801A_kE1bGL-7YAFk_k6gl9 Content-Disposition: form-data; name="file"; filename="Profile Picture.jpg" Content-Type: image/png Content-Transfer-Encoding: binary
