Question

AI skill document extraction

  • August 24, 2023
  • 3 replies
  • 0 views

Hi All,

We have a scenario to extract data from PDF. In interface we have a screen to upload file and on submit starting a process using a!start process to extract data from that file. It is working fine from developer mode.

when we add that screen to site document is not passing to that process, we are getting error like invalid content ID.

Thank you.

Priyanka

    3 replies

    venkateswarak7510
    venkateswarak7510
    August 24, 2023

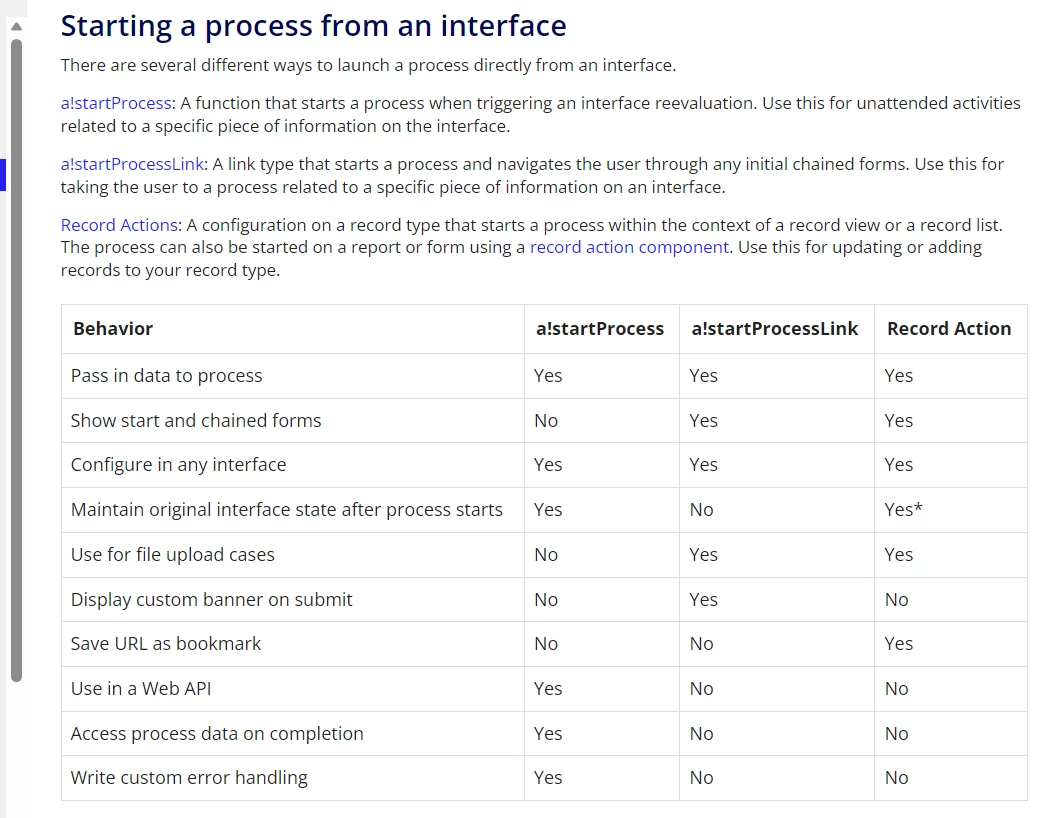

    We should not use start process for data extraction as file will not be uploaded to appian until the action is completed so if you want to extract file upload file and complete action in the interface or you can use a!submituploadedfiles() function in a!save before starting the process



      P
      priyankab453189Author
      August 24, 2023

      We are using same button for submitting file and starting a process. Is there any alternative way.

      sriramk5349
      sriramk5349
      August 24, 2023

      Hi,

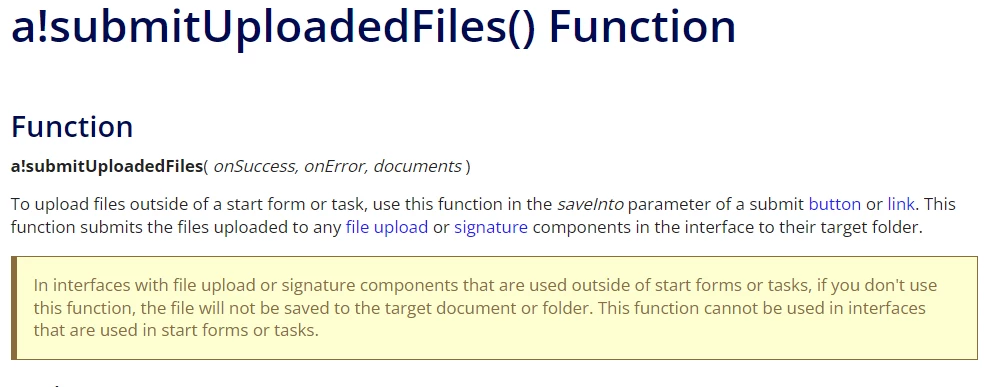

      a!submitUploadedFiles() Function - Appian 23.3, Please go through the link. In examples, you can see how to Upload a file outside of a start form or task and start a process.


    a!buttonArrayLayout(
      buttons: {
        a!buttonWidget(
          label: "Submit",
          style: "PRIMARY",
          saveInto: a!startProcess(
            /* Replace this with a constant of type Process Model that writes the image ID */
            processModel: cons!PROCESS_MODEL_CONSTANT,
            processParameters: {
              vehicle: local!data
            },
            /* Only upload the files if the process completes successfully */
            onSuccess: a!submitUploadedFiles(
              onSuccess: a!save(local!submissionSuccessful, true),
              onError: a!save(local!submissionSuccessful, false)
            ),
            onError: a!save(local!submissionSuccessful, false)
          )
        )
      },
      align: "START"
    )
