HTML Template in expression rule

Hi Community,

i have a requirement to create a html template using expression rule to create a table.

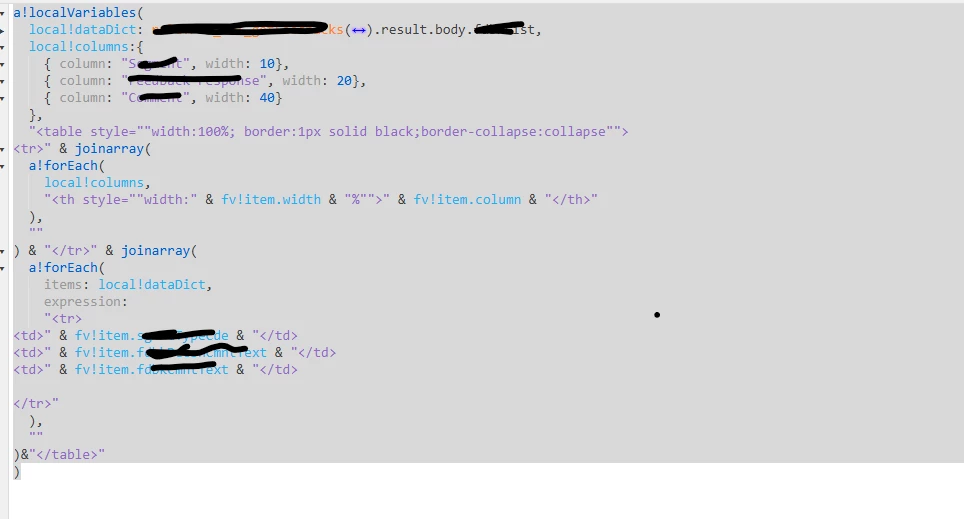

i am able to create a table but i am unable to generate borders for each row and headers. please prefer below code snippet.

TIA

[mention:a11f77a729fb4db2af76b09948583328:e9ed411860ed4f2ba0265705b8793d05]

harshas2775
harshas2775Answer
Brainy
Aug 21, 2025 11:27 AM UTC

You can try the below

a!localVariables(

  local!dataDict:{
    {
      name:"ABCD",
      age:25,
      company:"AS"
    },
    {
      name:"QWER",
      age:27,
      company:"AT"
    },
    {
      name:"SDFG",
      age:28,
      company:"Ay"
    }
  },
  local!columns:{
    { column: "name", width: 10},
    { column: "age", width: 20},
    { column: "company", width: 40}
  },
  "" & joinarray(
  a!forEach(
    local!columns,
    ""
  ),
  ""
) & "" & joinarray(
  a!forEach(
    items: local!dataDict,
    expression:
    ""
  ),
  ""
)&"


" & fv!item.column & "

" & fv!item.name & "
" & fv!item.age & "
" & fv!item.company & "


"
)

Happy to help. Even happier to optimize.
View in thread

5 replies

harshas2775
harshas2775
Brainy
Aug 21, 2025 10:10 AM UTC

Just like you added style in table you can use border-bottom in the style tags of header (th) and row (tr). Below is an example



Fruit

Apple


Mango

Happy to help. Even happier to optimize.
kirang100133Author
Known Participant
Aug 21, 2025 10:27 AM UTC

Hi Harsha,

Thanks for your response can you please do it in below code snippet i am getting error while doing the same.

It will be very helpful for me.

a!localVariables(

  local!dataDict:{
    {
      name:"ABCD",
      age:25,
      company:"AS"
    },
    {
      name:"QWER",
      age:27,
      company:"AT"
    },
    {
      name:"SDFG",
      age:28,
      company:"Ay"
    }
  },
  local!columns:{
    { column: "name", width: 10},
    { column: "age", width: 20},
    { column: "company", width: 40}
  },
  "" & joinarray(
  a!forEach(
    local!columns,
    ""
  ),
  ""
) & "" & joinarray(
  a!forEach(
    items: local!dataDict,
    expression:
    ""
  ),
  ""
)&"


" & fv!item.column & "

" & fv!item.name & "
" & fv!item.age & "
" & fv!item.company & "


"
)

stefanhelzle0001
stefanhelzle0001
Brainy
Aug 21, 2025 10:57 AM UTC

What kind of error do you get?

shubhama926776
shubhama926776
Brainy
Aug 21, 2025 11:42 AM UTC

Try this
Update values as per your need.

a!localVariables(
  /* Sample data - replace with your actual data source */
  local!dataDict: {
    {id: 1, name: "John Doe", department: "Engineering", salary: 75000},
    {id: 2, name: "Jane Smith", department: "Marketing", salary: 65000},
    {id: 3, name: "Bob Johnson", department: "Sales", salary: 70000},
    {id: 4, name: "Alice Brown", department: "HR", salary: 60000}
  },

  /* Column definitions */
  local!columns: {
    {column: "ID", width: 10, field: "id"},
    {column: "Employee Name", width: 30, field: "name"},
    {column: "Department", width: 30, field: "department"},
    {column: "Salary", width: 30, field: "salary"}
  },

  /* Generate HTML Table - Choose one of the options below */

  /* Option 1: Fixed width (800px) */
  "" &

  /* Option 2: Maximum width with auto sizing */
  /* "
" & */

  /* Option 3: Percentage width (80% of container) */
  /* "
" & */

  /* Option 4: Full width (current behavior) */
  /* "
" & */

  /* Table Header */
  "" &
  joinarray(
    a!forEach(
      local!columns,
      ""
    ),
    ""
  ) &
  "" &

  /* Table Body */
  joinarray(
    a!forEach(
      items: local!dataDict,
      expression:
      "" &
      "" &
      "" &
      "" &
      "" &
      ""
    ),
    ""
  ) &

  "
" &
      fv!item.column &
      "
" & fv!item.id & "" & fv!item.name & "" & fv!item.department & "" &
      "$" & text(fv!item.salary, "#,##0") &
      "
"
)

शुभम्
