Solved

BBO Invoice can only be indexed into using square brackets or the index function

Forum|Forum|4 years ago
January 27, 2022
6 replies
2 views

i'm trying to get the billNo of this invoice object

but when i try to retrive it i get null values if i use the index function if i don't use index function i get an error saying the error that i just wrote in the subject the only way for me to get this information is just getting all the values how could i get just one value ? bellow i'm gonna let you some examples of what i see.

Best answer by stefanhelzle0001

Seems like this is a record type.

docs.appian.com/.../reference-records.html

agamb0001

can you share a screenshot / xsd of BBO Invoice CDT?

Since index didnt work, just to check,

did you get the right value using square brackets, like ri!cliente["billNo"],

and whats the output using the property function?

harshitb6843

Hi there,

As I see in the screenshot, you have a CDT with scaler and non-scaler fields. This causes problems sometimes.
Try this.

ri!cliente[1].billNo

felixrAuthor

xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:tns="urn:com:appian:types" targetNamespace="urn:com:appian:types">






          @Id @GeneratedValue





          @Column(length=255)





          @Column(length=255)




          @Column(length=255)




          @OneToOne(cascade=CascadeType.ALL)





          @Column(length=255)





          @ManyToOne(cascade=CascadeType.REFRESH)







          @Column(length=255)












          @Column(length=255)




          @Column(length=255)




          @Column(length=255)

this is the xsd of the cdt

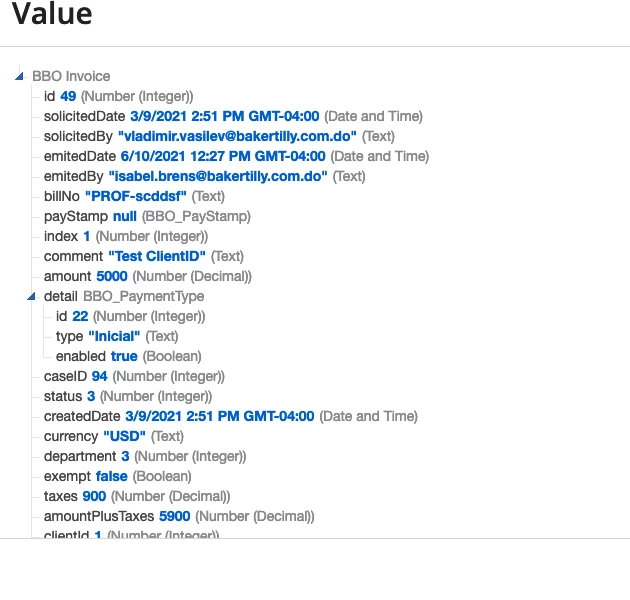

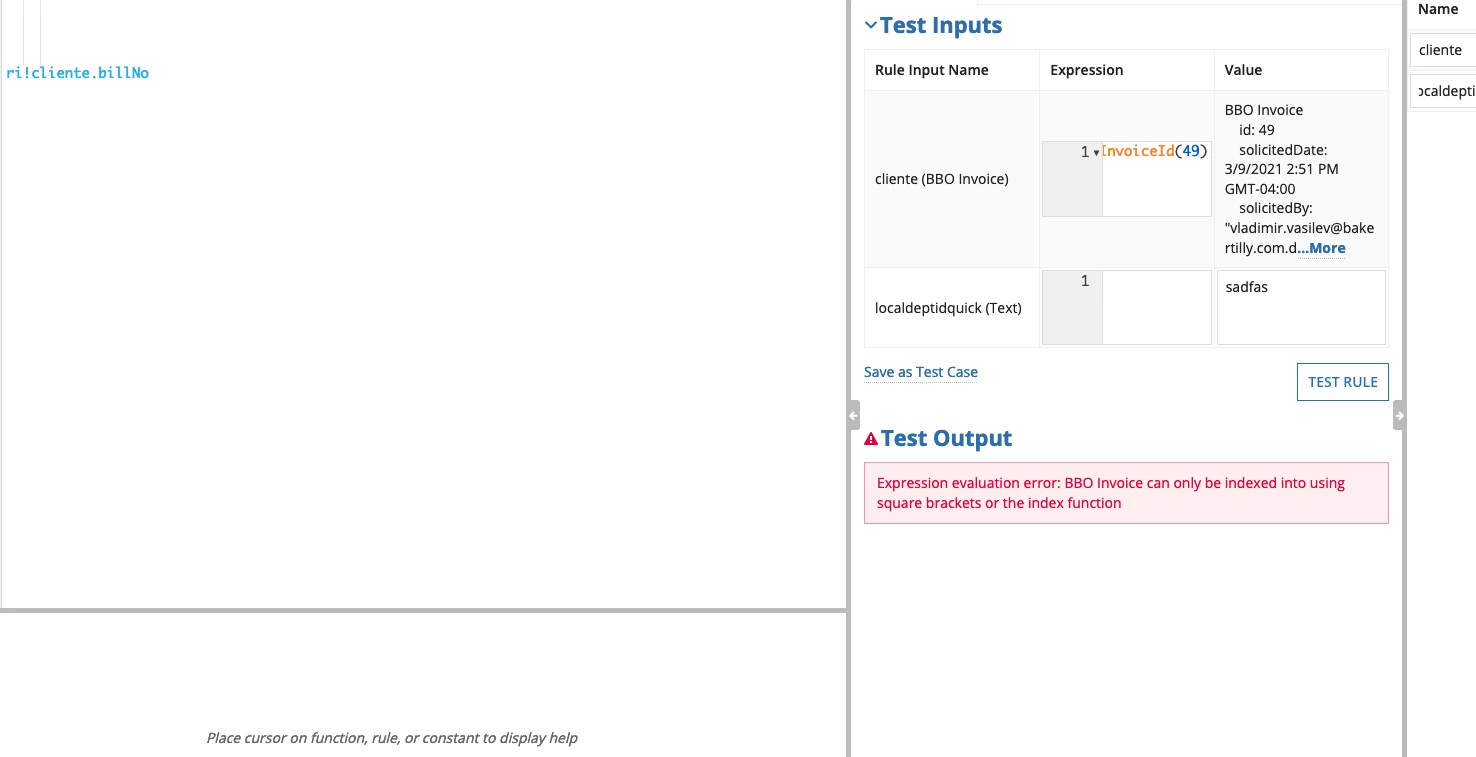

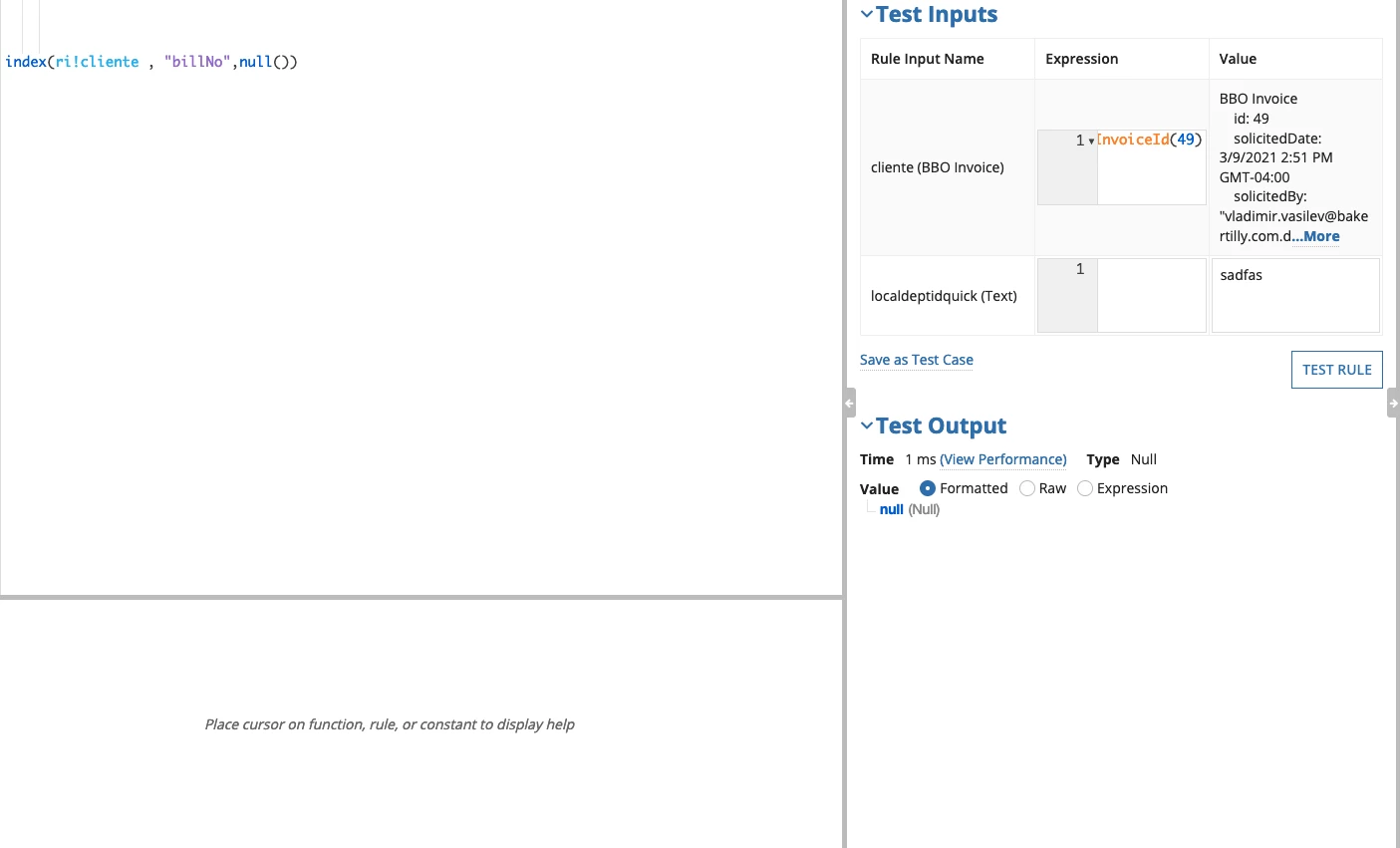

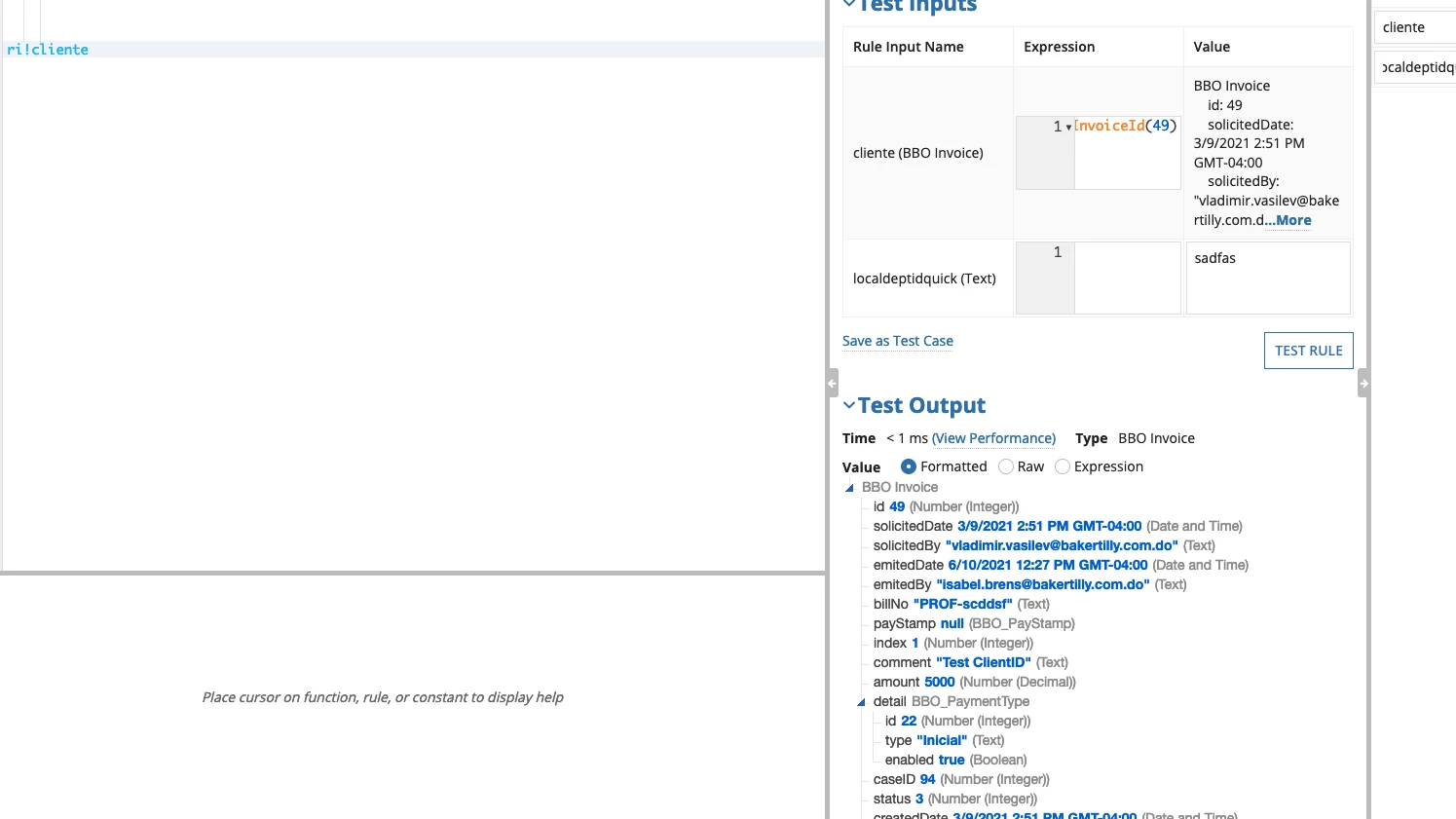

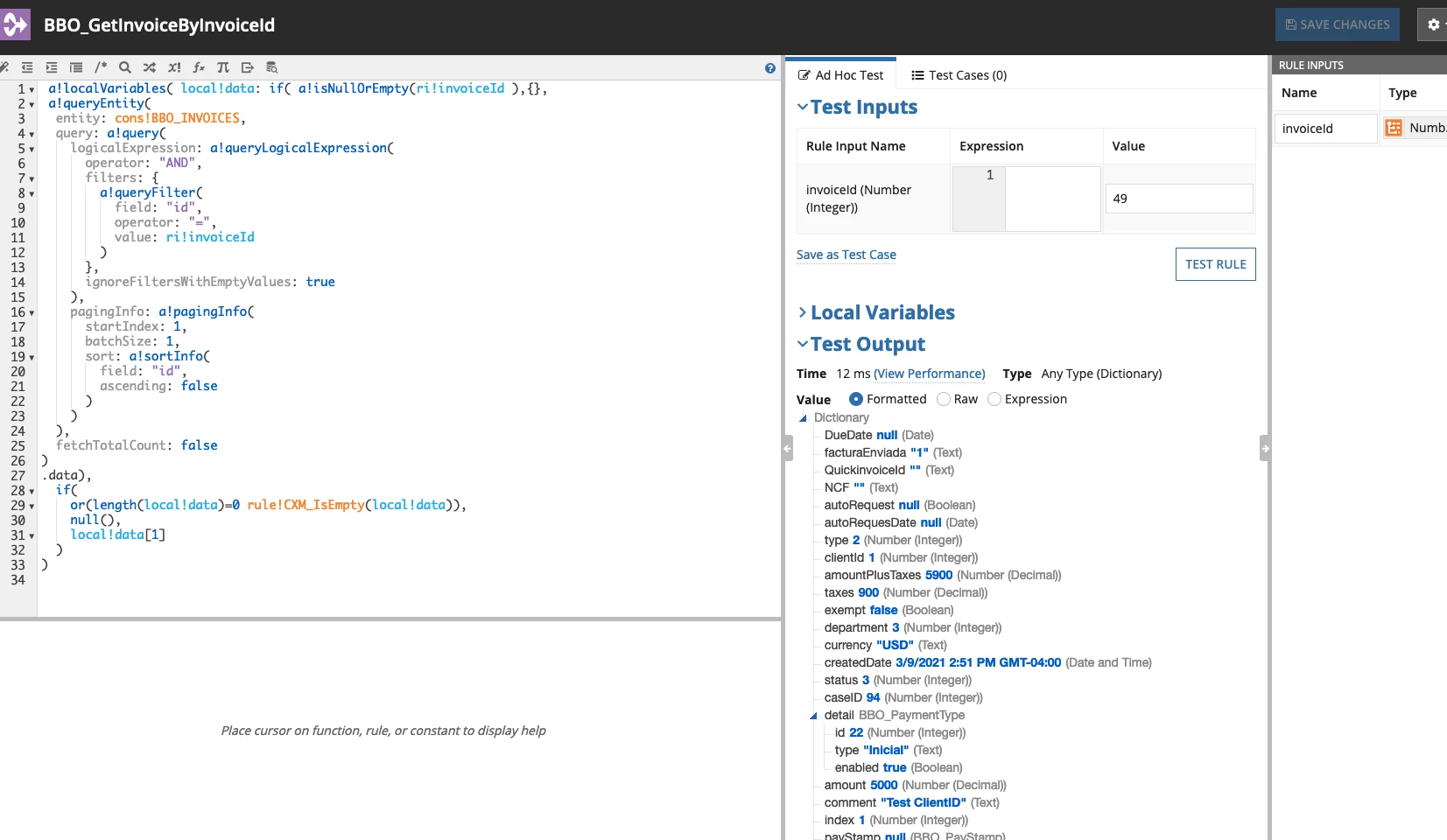

also i send you the print screen of the expression rule that i obtain the invoice from these two codes "ri!cliente[1].billNo" , "ri!cliente["billNo"]" dont work either i don't know what to do

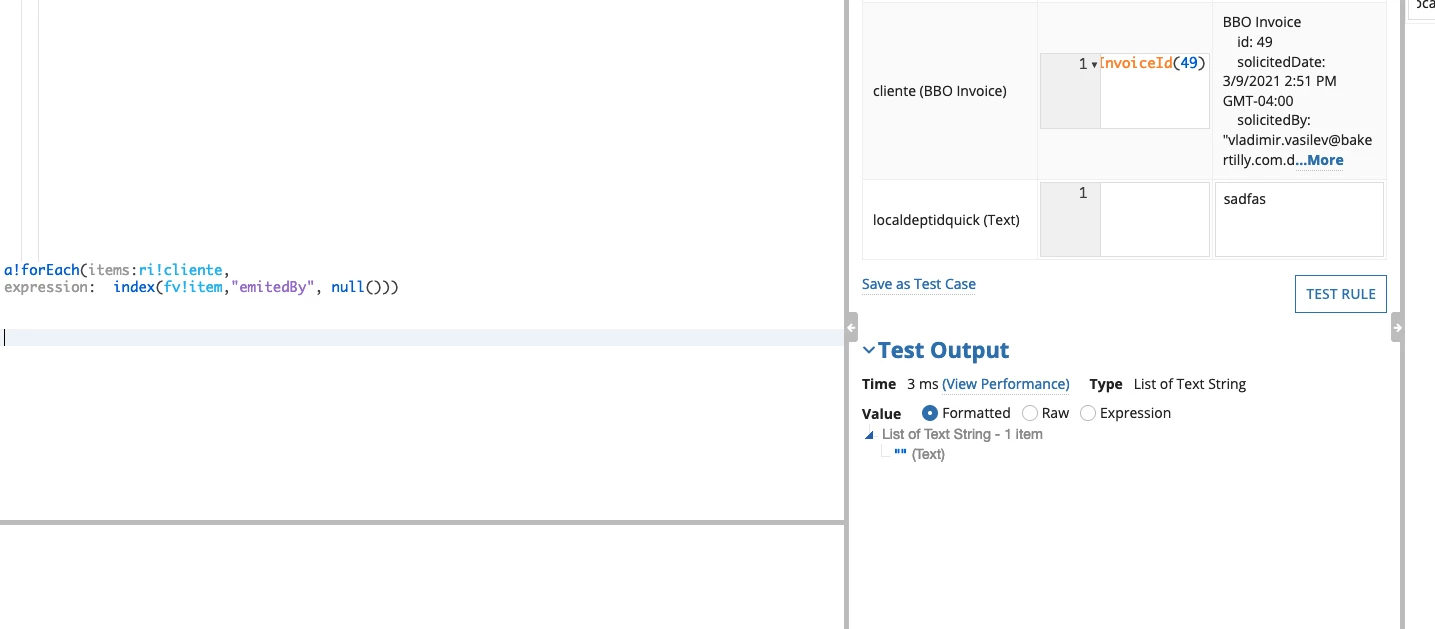

edit: property() is getting the same result as index()
