Question

BUG: Underscore sorts to the bottom of a list

  • June 5, 2023
  • 10 replies
  • 1 view

I'm in the appian designer and I'm trying to sort my datasets by description.

Normally if you use an underscore "_" as the first character, entries with the "_" as its first character will appear at the top of the list when sorting alphabetically.

Not with Appian however

Anything with an "_" as its first character sorts to the bottom of the list, not the top.

Example

Any Name
Bny Name
Cny Name
_ny Name

Why? No one else seems to do it this way. I've worked with dozen of applications and none of them sort the "_" character last like this.

Is this a bug or is Appian taking a page from MS' playbook and assumes that it knows better than everyone how sorting should work?

How can I fix this or find a work around? I don't want to resort to using 1, 2, 3... in order to force my descriptions to sort properly.

    10 replies

    mikes0011
    Brainy
    June 5, 2023

    The ASCII character code for underscore is 95, whereas for the uppercase letters it's 65 - 90 (so, lower).  I assume Appian does a simple sort along these lines, and I personally wouldn't have any expectation that it do anything different unless otherwise specified.  Especially for a plaintext field like description.

    Also to confirm, I'd be curious whether underscore sorts *higher* than lowercase letters, since their ascii codes are higher(?)

    The Expression Guru
    stewart.burchell
    June 5, 2023

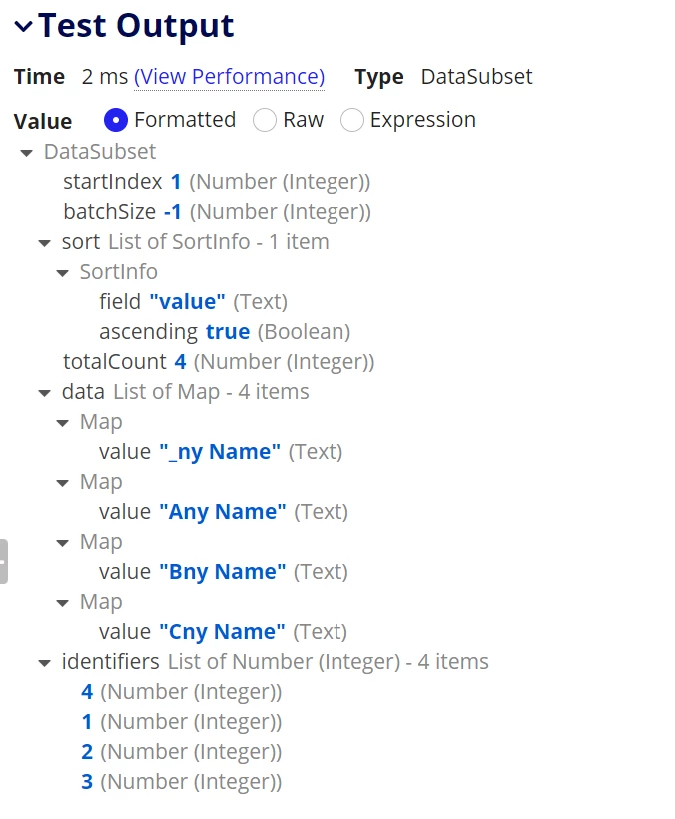

    Interesting...can you show how you're attempting to conduct your sorting? I've just tried this (see sample code below) and it works as you describe it should:

    a!localVariables(
      local!list: {
        a!map(value: "Any Name"),
        a!map(value: "Bny Name"),
        a!map(value: "Cny Name"),
        a!map(value: "_ny Name")
      },
      fn!todatasubset(
        arrayToPage: local!list,
        pagingConfiguration: a!pagingInfo(
          startIndex: 1,
          batchSize: -1,
          sort: a!sortInfo(
            field: "value",
            ascending: true
          )
        )
      )
    )

    mikes0011
    Brainy
    June 5, 2023

    I assume it kinda depends on what he meant by "sort my datasets by description" in the OP - but I'm not sure what "data sets" it involves, or what "description" -- is this querying on a DB field?  Sorting appian objects by their literal "description" field?  Something else?  I'm pretty unclear.

    The Expression Guru
    June 5, 2023

    To Reproduce

    • Go to the Appian Designer
    • Click on Any Application
    • Click on Build

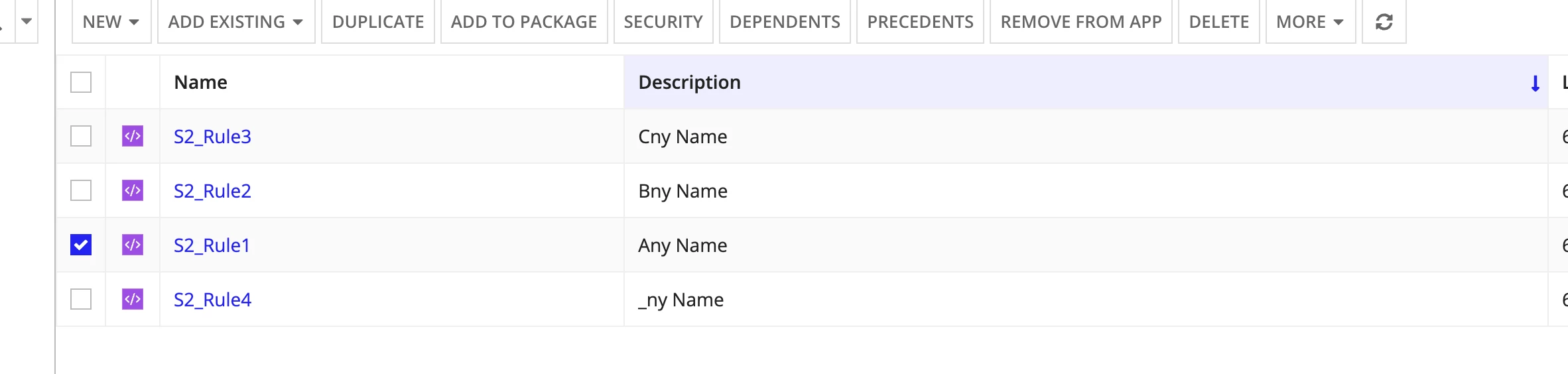

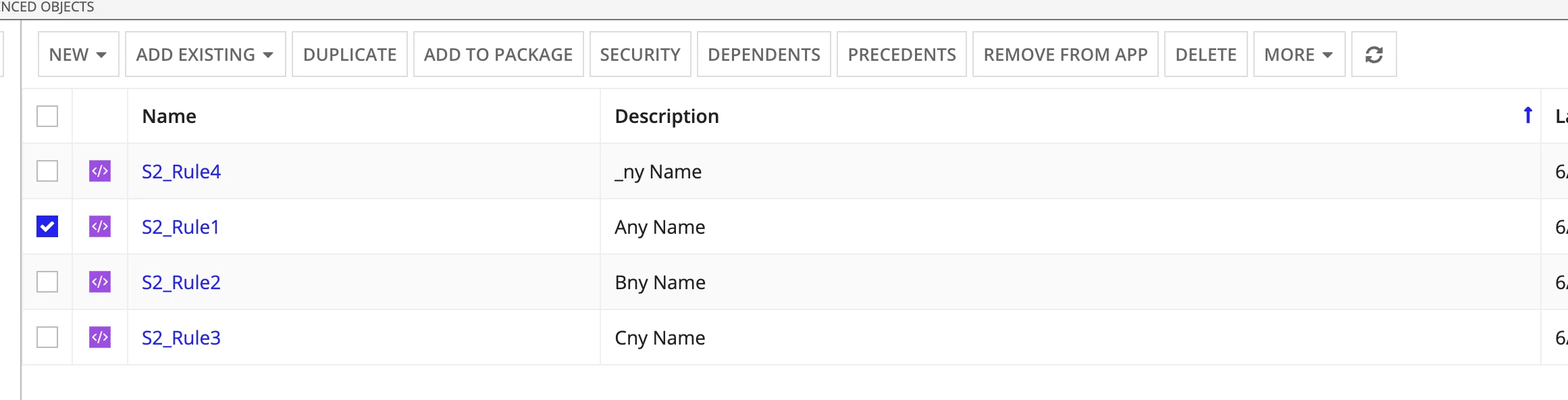

    That Description - the one right between the Name and Last Modified columns.

    I guess this is a Unix thing because Microsoft, Excel, Google Drive, Google Sheets, and a pile of other programs sort the "_" character first along with !, #, $ etc. even thou its between the Upper and Lower case letters on an Ascii chart.

    I can use !_ to get the sort order I'm looking for since the ! is a lower ascii value than both numbers and letters.

    Its more an OCD thing as I use the "_" character a lot in order to force a sort order without having to jump through hoops. I was expecting to sort near the top of the sort order like these other programs do.

    mathieud0001
    Brainy
    June 6, 2023

    Works for me in designer for me as well. This one is certainly interesting. Wonder if it perhaps has something to do with the collation on the server?

    https://docs.appian.com/suite/help/23.2/Prerequisites.html#verify-the-server-system-locale-setting
