Button Click Boolean not getting captured property in Process Model Process Variable

hi [mention:f715d2a5beee447f95815c5be14799c3:e9ed411860ed4f2ba0265705b8793d05]  In your submit and cancel buttons, you must assign a value to the parameter. The value will be saved in your `ri!` variable when you click the button. I have included the code for reference. Depending on your saving rule input type, the value parameter can either be a text value or a boolean.

a!buttonWidget(
      label: "submit",
      value: "Submit",
      saveInto: ri!submit,
      submit: true()
    ),
    a!buttonWidget(
      label: "cancel",
      value: "Cancel",
      saveInto: ri!cancel,
      submit: true()
    )

Buttons work differently then input fields. In Input fields you enter a value which gets saved in parameter passed in saveinto. Same value gets displayed when you pass that parameter in value part

For Buttons you pass the value which gets save into paramater set in saveinto,

In your case, you would only need one ruleinput, which is ri!cancel

code should look like this

a!buttonWidget(
      label: "submit",
      value: false,
      saveInto: ri!cancel,
      submit: true()
    ),
    a!buttonWidget(
      label: "cancel",
      value: true,
      saveInto: ri!cancel,
      submit: true(),
      //Validate as false so that you can avoid checking required fields validation/
      validate:false

    )

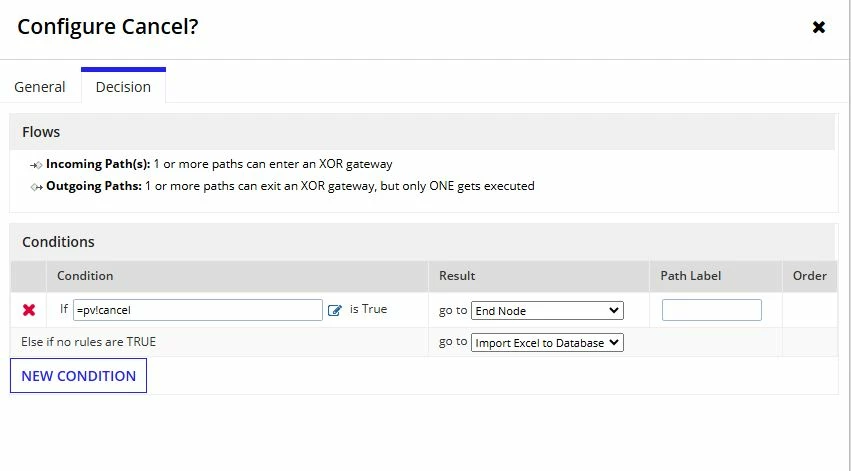

This way in your xor gate you can use pv!cancel to determine which path to take.

Hi [mention:f715d2a5beee447f95815c5be14799c3:e9ed411860ed4f2ba0265705b8793d05] , I have reviewed your code and noticed that you have used a rule input in place of the value. Instead, you should provide a value that can either be a text(string format) (e.g., 'Cancel' or 'Submit') or a Boolean value (True/False), depending on your requirements. This value will be saved in your rule input as soon as the button is clicked. So, You can then implement the logic, such as: if Cancel = true, proceed to the end node, or if Cancel = 'Cancel', proceed to the end node.
