Drillable Chart

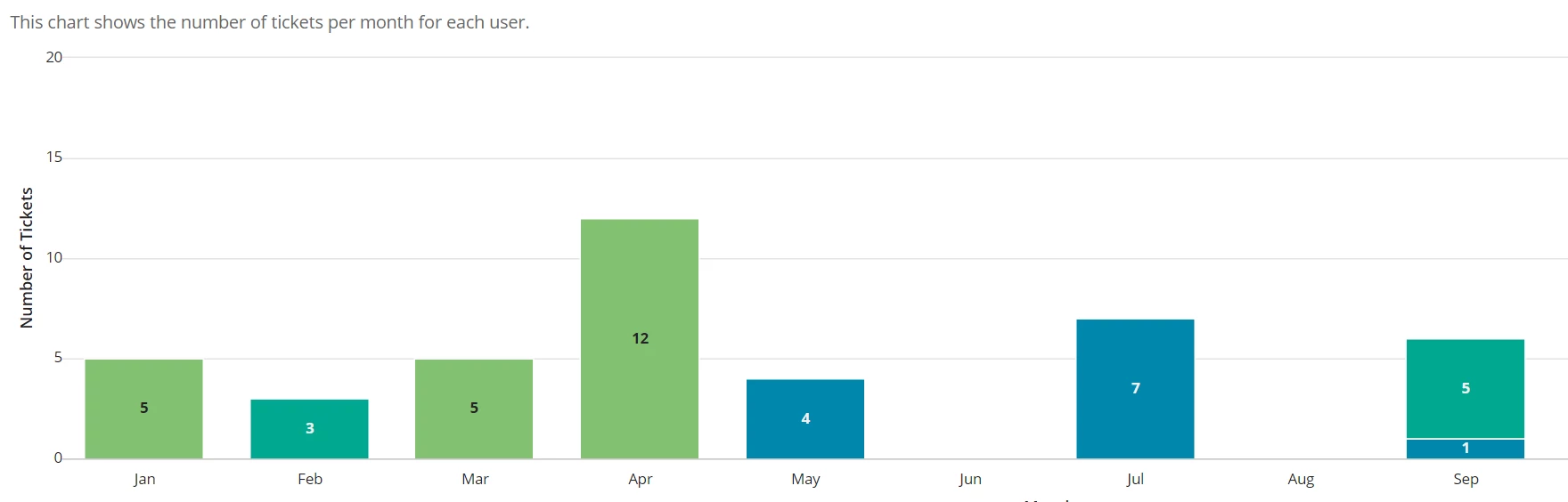

Make a second Interface object that has the relevant rule input(s) that you need to render the "corresponding months records" and then when you have that working, in your above chart when you click on a given bar - say 'Apr' - then save the corresponding value(s) that match the rule input(s) to your new Interface into the local variable(s) that you will map to those rule input(s).

Hello vijaykumars5676,

You can use the dynamic link and save the selected value into a local variable. You can pass this local variable into the query filter value of your recordType query. Using this data you can display in a grid

a!gridField(

    data: a!recordData(
      recordType: 'recordType!recordName',
      filters: ri!filters
    ),
)
/*ri!filters is of any type
Calling Interface*/
a!localVariables(
  local!month: 2,
  local!year:2022,
  /*whenever you change a month use saveinto in the dynamic link and change the value of local!year and local!month*/
    rule!drillableInterface(
    filters:
    a!queryFilter(
        field: 'recordType!{af5896a5-34b7-4d2f-9d8a-901d89ca73fb}ABSB Case Record.fields.{createdAt}createdAt',
        operator: "between",
        value: {  date(local!year,local!month,1), eomonth(date(local!year,local!month,1)) }
        )
    )
)

Please refer to the code here you need to pass filters in the grid field as rule input of type any type. And where you are calling set the rule input as shown in the code.
