Known Participant
Jun 12, 2023 12:07 PM UTC
Question

Modal Pop-Up

Hi, is there an option for a modal pop-up in Appian? Like when a pop-up will appear and the entire screen will be greyed out except the pop-up and until you select any option in the pop up the screen will remain greyed out. Can anyone let me know if possible then how can it be done?

    8 replies

    sanchitg0002
    Inspiring
    Jun 12, 2023 12:15 PM UTC

    True Pop-ups are only possible using record actions in Appian with Open Actions In set to "Dialog Box", but the entire screen will not be greyed out instead it will appear on top of it. You can also consider confirmation message popup in buttonWidget.

    stefanhelzle0001
    Brainy
    Jun 12, 2023 12:24 PM UTC
    tushark6475
    Participating Frequently
    Jun 12, 2023 12:26 PM UTC

    Hi Shalini, in your scenario you need to create an interface or functionality that works like pop-ups but they are not true pop-ups.
    You need to basically trigger the visibility of the objects using "showWhen" parameter.

    You can take the reference from the below-mentioned code :

    a!localVariables(
      local!name,
      local!showPopup: false,
      {
        a!sectionLayout(
          contents: {
            a!textField(
              label: "Enter Name",
              value: local!name,
              saveInto: local!name
            ),
            a!buttonArrayLayout(
              buttons: {
                a!buttonWidget(
                  label: "Submit",
                  icon: "arrow-right",
                  value: true,
                  saveInto: local!showPopup,
                  style: "PRIMARY"
                )
              },
              align: "CENTER"
            )
          },
          showWhen: not(local!showPopup)
        ),
        a!columnsLayout(
          columns: {
            a!columnLayout(),
            a!columnLayout(
              contents: {
                a!cardLayout(
                  contents: {
                    a!sectionLayout(
                      contents: {
                        a!richTextDisplayField(
                          labelPosition: "COLLAPSED",
                          value: {
                            a!richTextItem(
                              text: {
                                "Are you sure?"
                              },
                              size: "MEDIUM_PLUS"
                            ),
                          }
                        )
                      },
                      divider: "BELOW"
                    ),
                    a!buttonLayout(
                      primaryButtons: {
                        a!buttonWidget(
                          label: "OK",
                          icon: "check",
                          value: false,
                          saveInto: local!showPopup,
                          style: "PRIMARY"
                        )
                      },
                      secondaryButtons: {
                        a!buttonWidget(
                          label: "Cancel",
                          icon: "times",
                          value: false,
                          saveInto: local!showPopup,
                          style: "NORMAL"
                        )
                      }
                    )
                  },
                  marginAbove: "EVEN_MORE",
                  showBorder: false,
                  showShadow: true
                )
              }
            ),
            a!columnLayout()
          },
          showWhen: local!showPopup
        )
      }
    )

    sanchitg0002
    Inspiring
    Jun 12, 2023 12:34 PM UTC

    Slight adjustments to meet the requirements:

    • Change the card style to "STANDARD".
    • Give marginBelow to bring it on the center.

    a!localVariables(
      local!name,
      local!showPopup: false,
      {
        a!sectionLayout(
          contents: {
            a!textField(
              label: "Enter Name",
              value: local!name,
              saveInto: local!name
            ),
            a!buttonArrayLayout(
              buttons: {
                a!buttonWidget(
                  label: "Submit",
                  icon: "arrow-right",
                  value: true,
                  saveInto: local!showPopup,
                  style: "PRIMARY"
                )
              },
              align: "CENTER"
            )
          },
          showWhen: not(local!showPopup)
        ),
        a!cardLayout(
          contents: a!columnsLayout(
            columns: {
              a!columnLayout(),
              a!columnLayout(
                contents: {
                  a!cardLayout(
                    contents: {
                      a!sectionLayout(
                        contents: {
                          a!richTextDisplayField(
                            labelPosition: "COLLAPSED",
                            value: {
                              a!richTextItem(
                                text: { "Are you sure?" },
                                size: "MEDIUM_PLUS"
                              ),

                            }
                          )
                        },
                        divider: "BELOW"
                      ),
                      a!buttonLayout(
                        primaryButtons: {
                          a!buttonWidget(
                            label: "OK",
                            icon: "check",
                            value: false,
                            saveInto: local!showPopup,
                            style: "PRIMARY"
                          )
                        },
                        secondaryButtons: {
                          a!buttonWidget(
                            label: "Cancel",
                            icon: "times",
                            value: false,
                            saveInto: local!showPopup,
                            style: "NORMAL"
                          )
                        }
                      )
                    },
                    marginAbove: "EVEN_MORE",
                    showBorder: false,
                    showShadow: true,
                    marginBelow: "EVEN_MORE"
                  )
                }
              ),
              a!columnLayout()
            },
          ),
          style: "STANDARD",
          showWhen: local!showPopup
        )
      }
    )

    mikes0011
    Brainy
    Jun 12, 2023 1:30 PM UTC

    This seemingly gets asked here at least once a week (or at least, almost that much)...

    Here's just a first-glance list of ones that come up first if i search the word "modal" here:

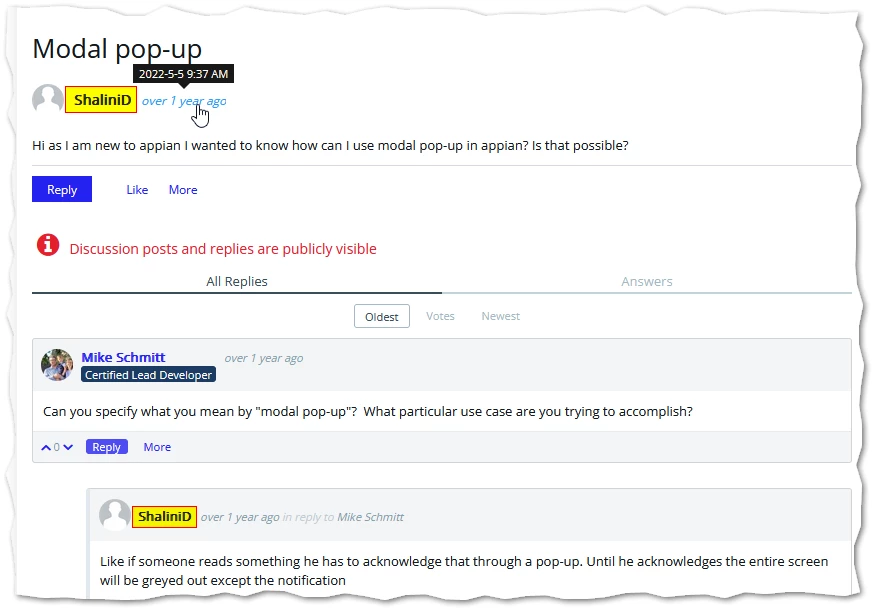

    One of the above is even your post from just over a year ago - i'm not sure why you'd ask the exact same thing again and expect a different answer?

    The Expression Guru
    harshitb6843
    Brainy
    Jun 12, 2023 5:32 PM UTC

    You're telling me she did not learn pop-up in 1 year? [emoticon:d6dd260102fd406884fc96b8bc59760b]

    New Participant
    Jun 14, 2023 12:02 AM UTC

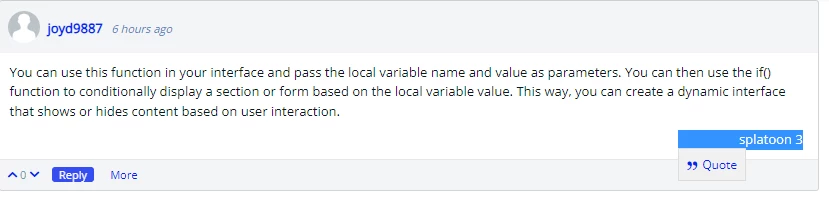

    [deleted]
    harshitb6843
    Brainy
    Jun 14, 2023 6:01 AM UTC

    Well well. ChatGPT isn't at good at responses as you think it is. Try better next time, spammer!
