muhammads0148
January 10, 2023
Question

appian postman

  • January 10, 2023
  • 13 replies
  • 0 views

I have created an apian web post API. api is working in appian and when i try to test it in postman its gives error 501. how can i test it in post man. need help. i already created outh credentials and also added the service user to the application groups.

a!localVariables(
  local!value: cast(
    'type!{urn:com:appian:types:TFA}TFA_TESTING_RT',
    a!fromJson(http!request.body)
  ),
  a!writeToDataStoreEntity(
    dataStoreEntity: cons!TFA_data_store_constant,
    valueToStore: local!value,
    onSuccess: a!httpResponse(
      statusCode: 200,
      headers: {
        a!httpHeader(name: "Content-Type", value: "application/json")
      },
      body: a!toJson(
        fv!storedValues
      )
    ),
    onError: a!httpResponse(
      statusCode: 500,
      headers: {
        a!httpHeader(name: "Content-Type", value: "application/json")
      },
      body: a!toJson(
        {
          error: "There was an error writing to the data store"
        }
      )
    )
  )
)

13 replies

prafuls972
January 10, 2023

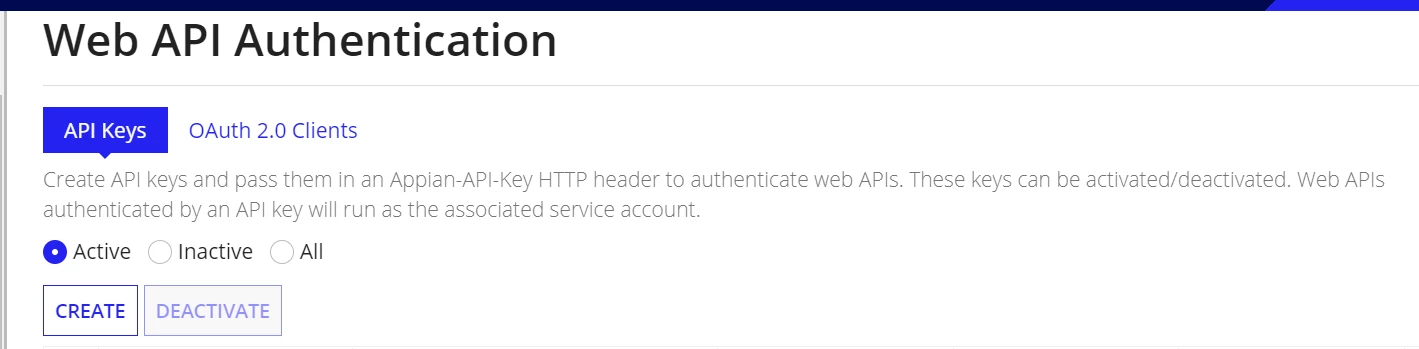

First go to admin console -> Web API Authentication -> Configure webapi key / connected system using a service account. After configuring it will give you clientId and clientsecret or webapi key depending on what you configure. Save the key somewhere and use it in postman.

Then create a connected system in postman and use the webapi.

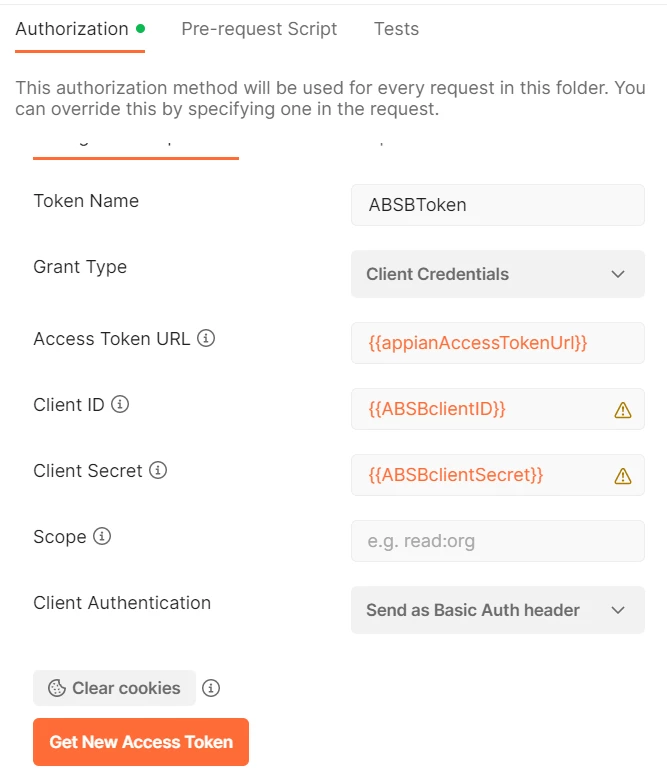

In case of connected system use this config

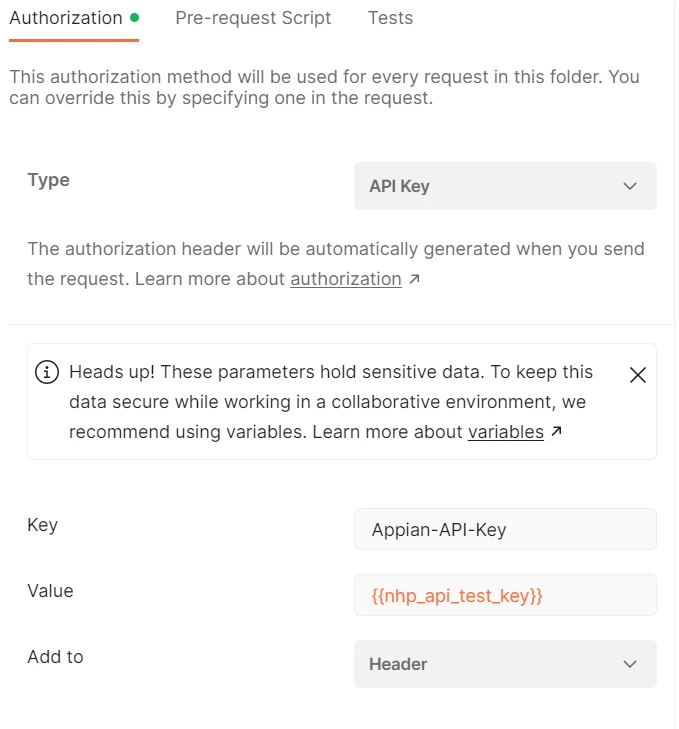

In case of webapi key use this config

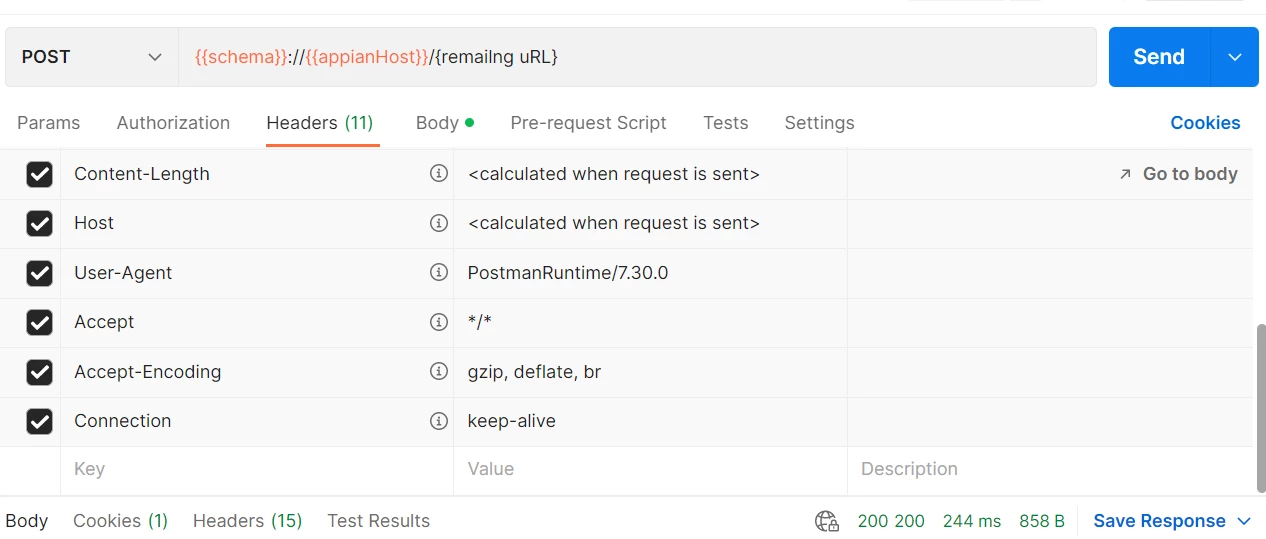

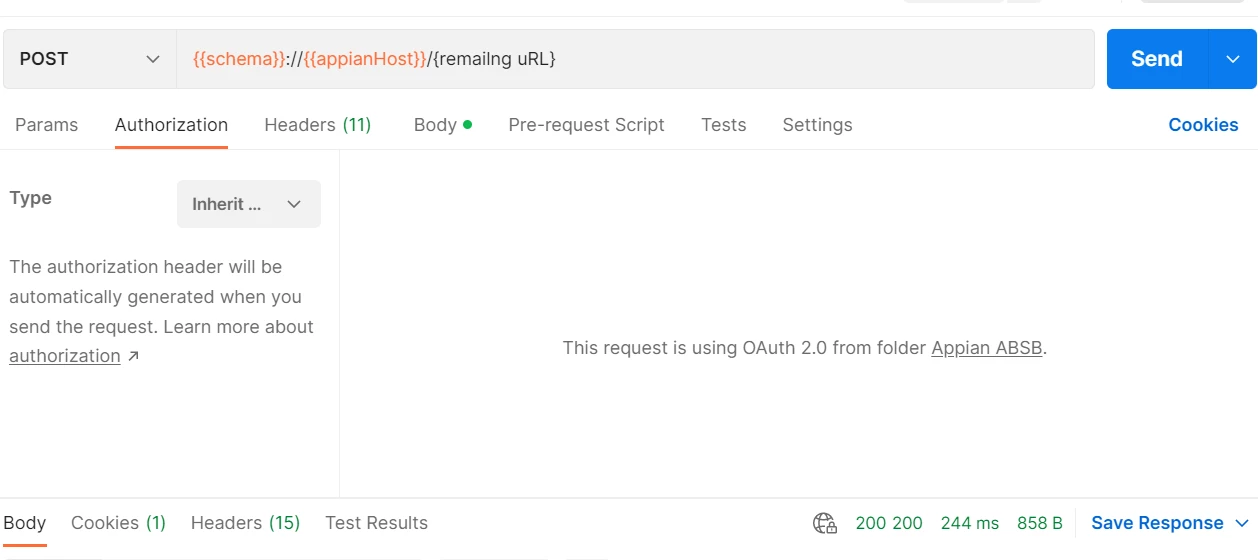

After this inherit the token and call your API subsequent web API address

curl --location --request POST 'WEBAPI ADDRESS' \
--header 'Authorization: Bearer  Token' \
--header 'Content-Type: application/json' \
--data-raw 'jsonRequestBody'
Hope this will help you. Make sure the service account has at least viewer permission to web API. If you are calling a process model from this webapi then that service account must have at least initiator permission for the process model.
muhammads0148
January 10, 2023

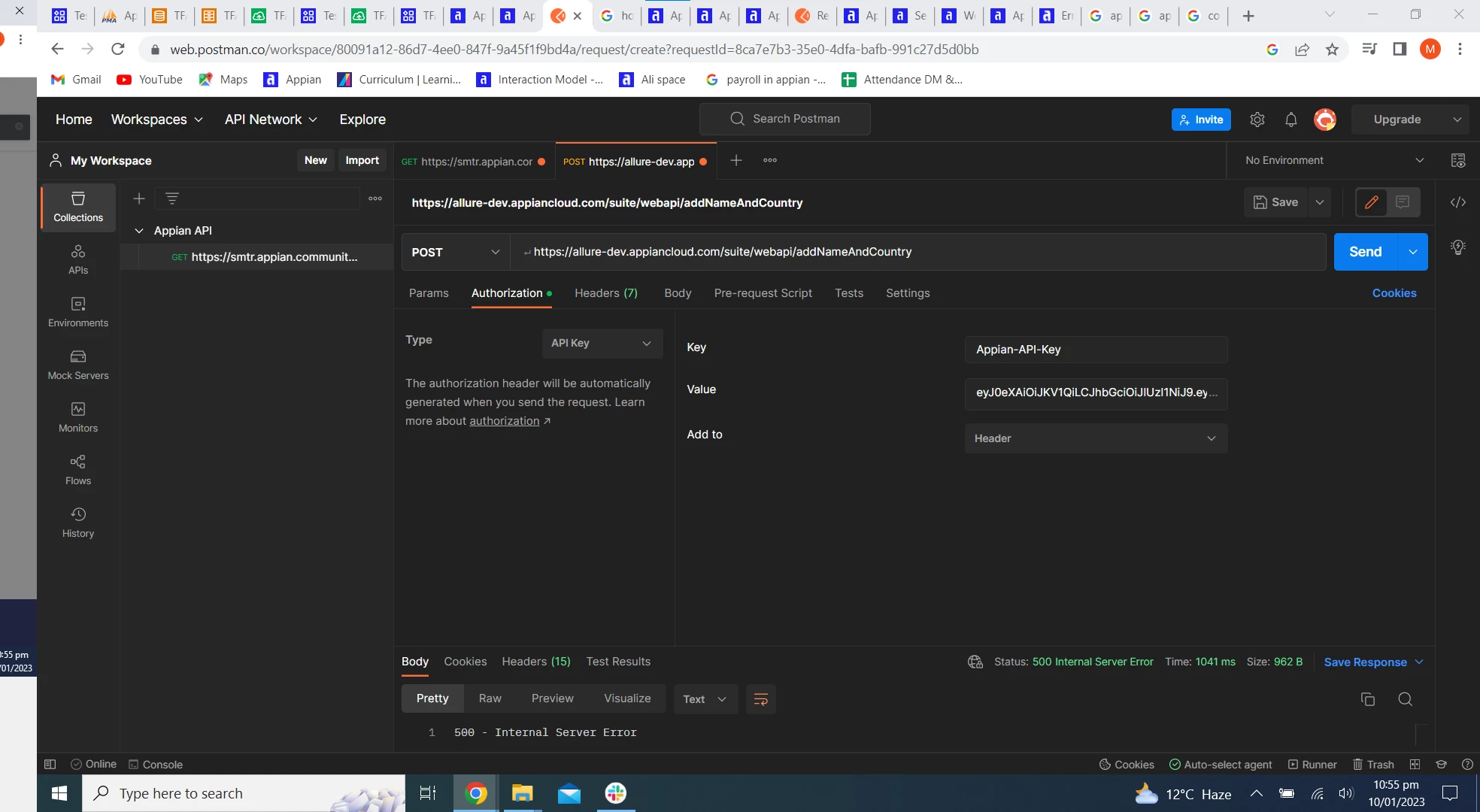

still not working

prafuls972
January 10, 2023

did you configure API keys or oauth2.0 clients? can you please share the screenshot of the Appian Admin console?

If your environment is only accessed using VPN then you must run the postman request from your desktop in a VPN environment.  In the case of VPN secured environment, you cannot access the Appian endpoint outside your VPN tunnel.
