Activity-chaining into a subprocess activity(Configuring the subsequent activity)

Question

Hi,everyone
I have a question.

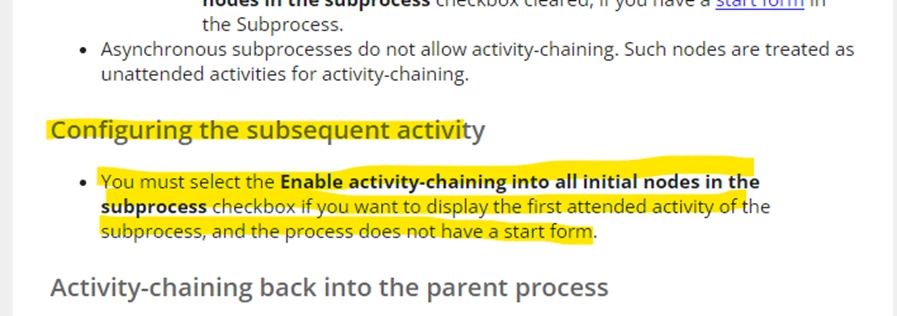

I check this reference  link:
docs.appian.com/.../Sub-Process_Activity.html

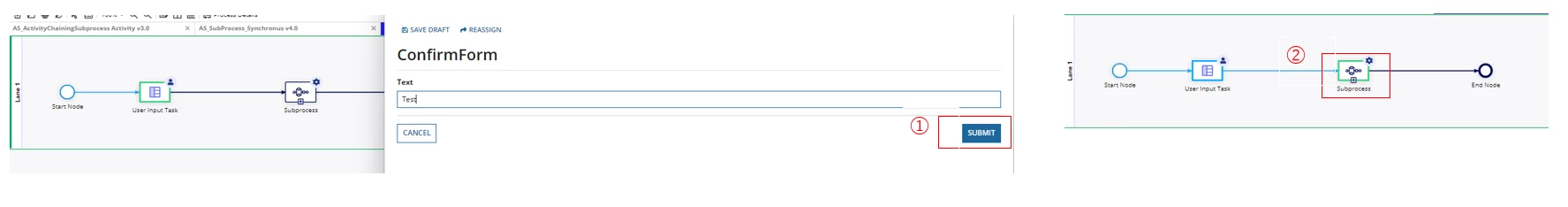

I cannot understand this point.(plz check my screenshot).

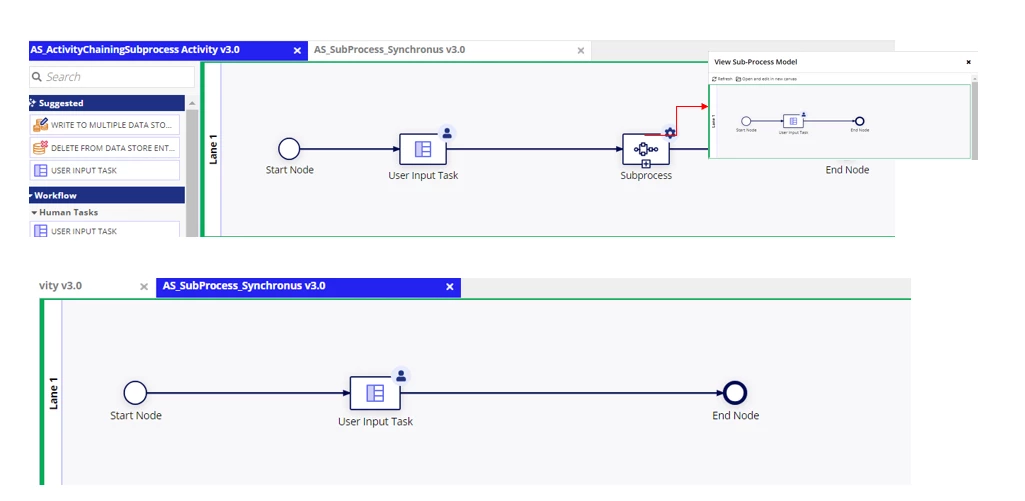

Here is my code

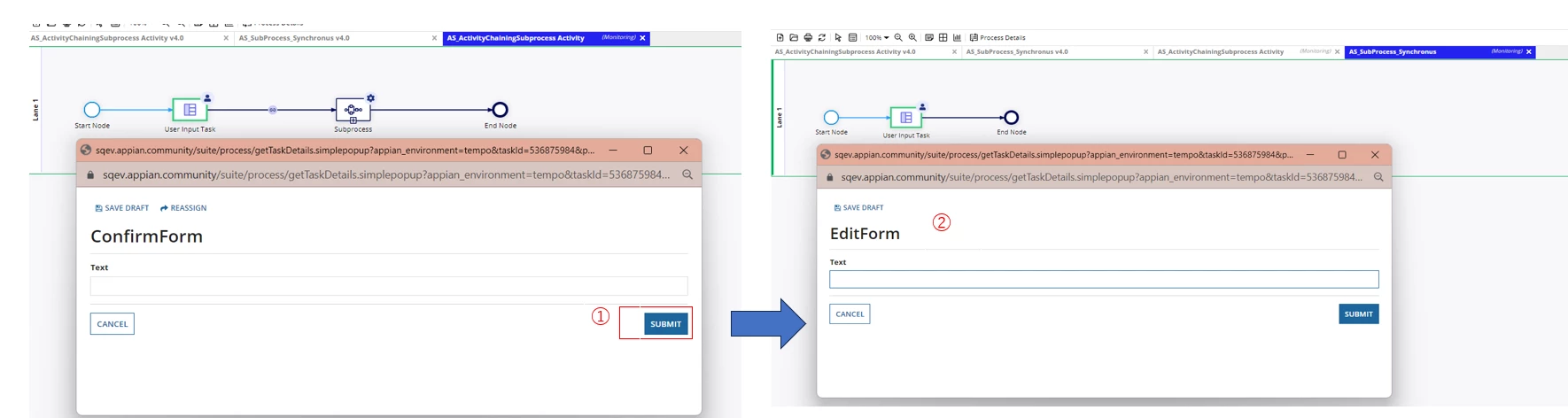

As my imagine when click submit button the next interface will appear subsequently because i checked Enable activity-chaining into all initial nodes in the subprocess

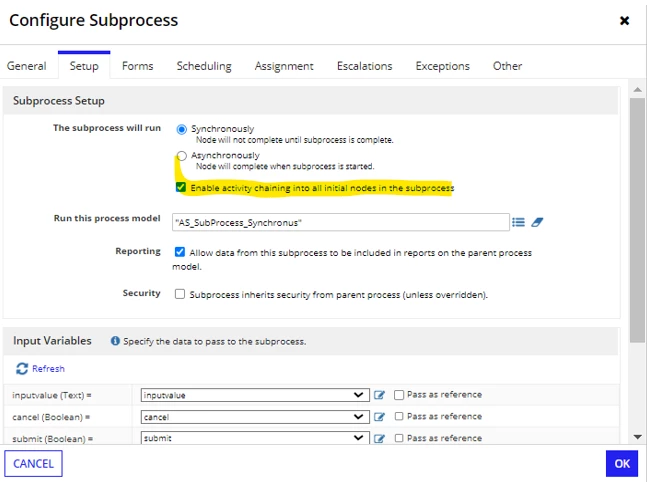

but next interface will not appear subsequently.So my question is the purpose of using Enable activity-chaining into all initial nodes in the subprocess check box and  example how to use that option

Thanks

silambarar921604 · Accepted Answer

Hi,Can you please try adding an activity chaining between User Input Task and Sub Process node in the AS_ActivityChainingSubprocess Activity model (Parent on).As per the documentation you are referring, that check box will enable activity chaining inside the sub process node but in the parent process model, we will have to maintain the activity chaining till the sub process node. Could you please try once?
