Question

Could not display interface. Please check definition and inputs.Interface Definition: Expression evaluation error: An error occurred while executing a smart service: An error occurred while trying to write to the entity "EO_EmployeeData" [i

  • August 24, 2022
  • 4 replies
  • 0 views

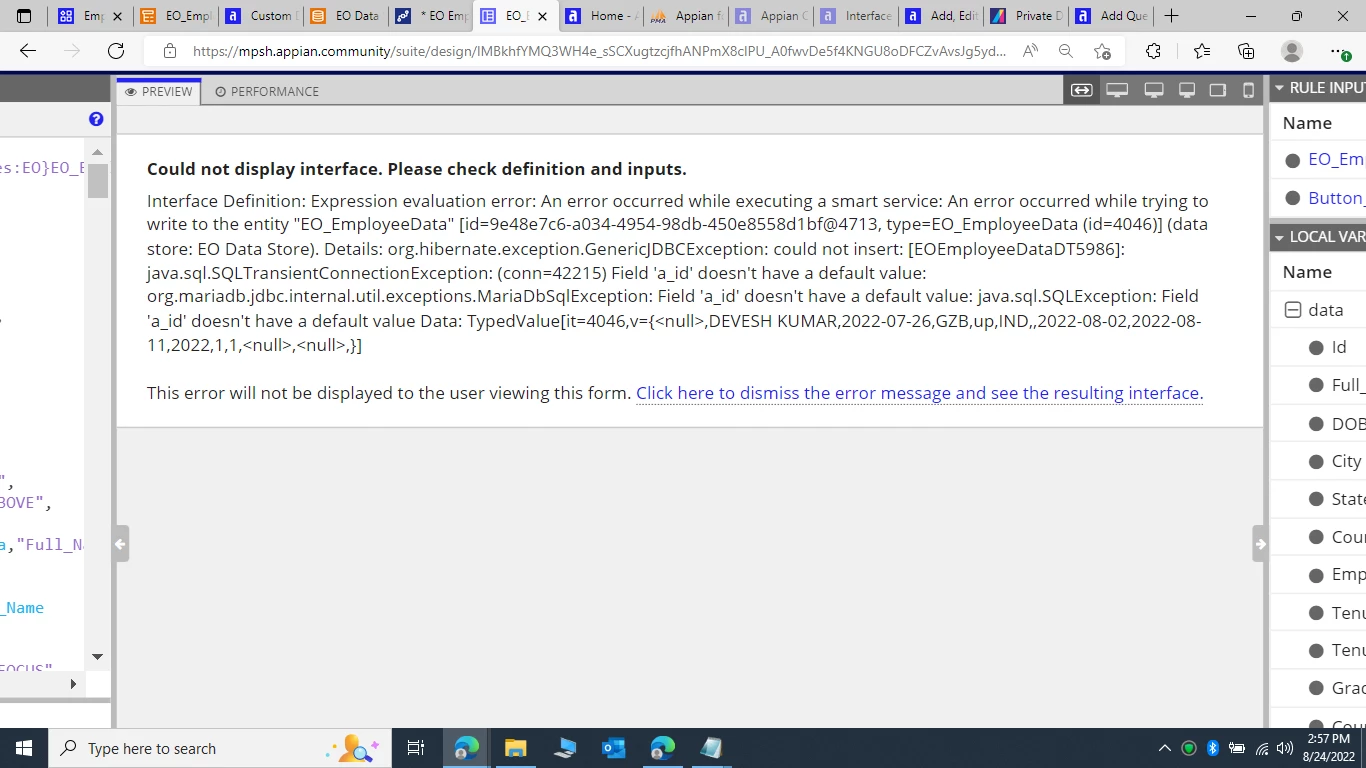

Could not display interface. Please check definition and inputs.

Interface Definition: Expression evaluation error: An error occurred while executing a smart service: An error occurred while trying to write to the entity "EO_EmployeeData" [id=9e48e7c6-a034-4954-98db-450e8558d1bf@4713, type=EO_EmployeeData (id=4046)] (data store: EO Data Store). Details: org.hibernate.exception.GenericJDBCException: could not insert: [EOEmployeeDataDT5986]: java.sql.SQLTransientConnectionException: (conn=42215) Field 'a_id' doesn't have a default value: org.mariadb.jdbc.internal.util.exceptions.MariaDbSqlException: Field 'a_id' doesn't have a default value: java.sql.SQLException: Field 'a_id' doesn't have a default value Data: TypedValue[it=4046,v={<null>,DEVESH KUMAR,2022-07-26,GZB,up,IND,,2022-08-02,2022-08-11,2022,1,1,<null>,<null>,}] This error will not be displayed to the user viewing this form. Click here to dismiss the error message and see the resulting interface.

    4 replies

    stefanhelzle0001
    stefanhelzle0001
    Brainy
    August 24, 2022

    Did you add a primary key field to your CDT? Could it be that you added that field later on, after initially publishing the datastore?

    I suggest to drop the table in the DB and republish the datastore so Appian can create the table according to your new config.

    D
    deepakg681722
    August 24, 2022

    Did you create primary column in your CDT? Did you set it as a Auto Generated?

    U
    ujjwalr0002
    Participating Frequently
    August 24, 2022

    <xsd:element name="id" nillable="true" type="xsd:int">
    <xsd:annotation>
    <xsd:appinfo source="appian.jpa">@Id @GeneratedValue</xsd:appinfo>
    </xsd:annotation>
    </xsd:element>

    Set autogenerated for the primary key column.

    harshitb6843
    harshitb6843
    August 24, 2022

    Adding to what Ujjwal said, and to explain this thing for better clarity; Appian's CDT and the table connected to it always need a Primary Key column to perform CRUD operations. Without a primary key column, CRUD is not possible via Appian smart services. Now to make the work easier and not manually take care of the order of values in the Primary Key column, we always mark it as auto-generated. When you mark it as auto-generated, then you can leave that column as NULL and it will be auto-generated. In your case, you did not create a primary key column so Appian auto-created it with the name a_id and that was not marked as auto-generated. Hence you receive this error.

    You can do 2 things about it.

    1. Re-create the entire CDT and the table, and add a Primary key column with auto-generated configuration.
    2. Fix the existing CDT by accessing its XSD and following Ujjwal's steps.
