Question
Enabled and disabled in editable grid
Hi All,

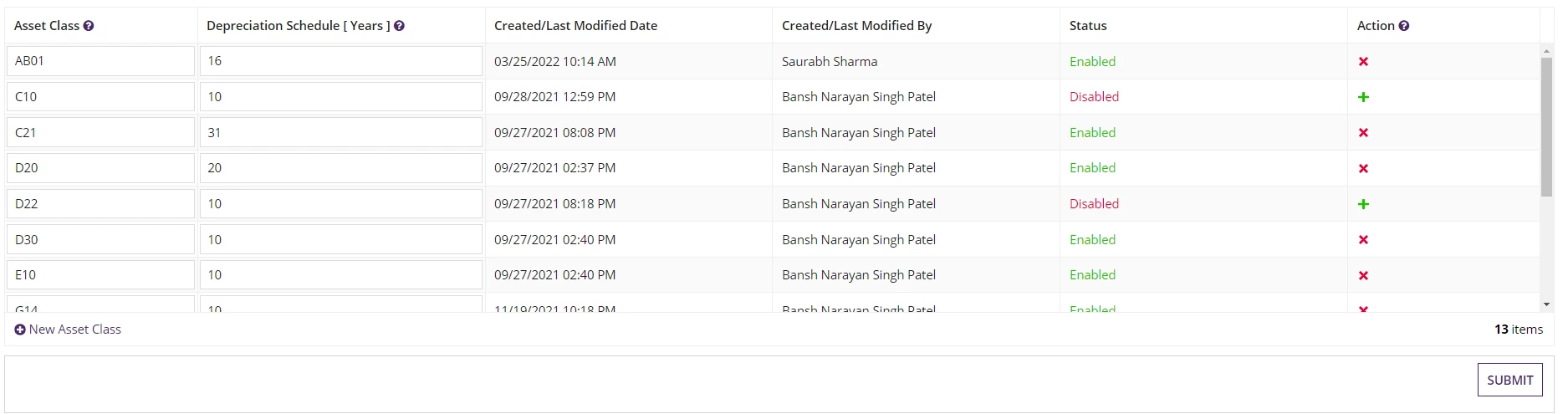

Below is the screenshot of requirement
You can see the item status is disabled against + icon and Enabled against cross icon
If we click on + icon, status will be changed to enabled and icon will be changed to - automatically.
a!localVariables(
local!Employeefilterdata:"Employee_Id",
/*local!Employeefilterdata: rule!ETA_filterEmployeesData(),*/
local!Employeedata: rule!ETA_employeeData(local!Employeefilterdata),
local!deletedEmployeeIds,
/* Create Pagination */
local!startIndex: 1,
local!batchSize: 5,
local!pagingInfo: a!pagingInfo(
startIndex: local!startIndex,
batchSize: local!batchSize
),
local!datasubset: todatasubset(
arrayToPage: local!Employeedata,
pagingConfiguration: local!pagingInfo
),
a!formLayout(
label: " Employee Data",
instructions: "Add, Update and Remove Employee Data",
contents: {
a!imageField(
label: "",
labelPosition: "ABOVE",
images: {a!documentImage(cons!ETA_HRA)},
size: "FIT",
isThumbnail: false,
style: "STANDARD",
marginAbove: "EVEN_LESS"
),
a!dropdownField(
label: "Selection",
labelPosition: "ABOVE",
placeholder: "--- Select a Value ---",
choiceLabels: {cons!ETA_EMPLOYEE_CDT_DSE_POINTER},
choiceValues: {cons!ETA_EMPLOYEE_CDT_DSE_POINTER},
value: local!Employeefilterdata,
saveInto: {local!Employeefilterdata},
searchDisplay: "AUTO",
validations: {}
),
a!gridLayout(
totalCount: local!datasubset.totalCount,
headerCells: {
/*a!gridLayoutHeaderCell(label: "Employee Id" ),*/
a!gridLayoutHeaderCell(label: "Employee Name" ),
a!gridLayoutHeaderCell(label: "DOB" ),
a!gridLayoutHeaderCell(label: "Department" ),
a!gridLayoutHeaderCell(label: "Designation" ),
/*a!gridLayoutHeaderCell(label: "Phone Number" ),*/
a!gridLayoutHeaderCell(label: "Date Of Joining" ),
a!gridLayoutHeaderCell(label: "Gender" ),
a!gridLayoutHeaderCell(label: "Email Address" ),
a!gridLayoutHeaderCell(label: "Status"),
/*a!gridLayoutHeaderCell(label: "Start Date", align: "RIGHT" ),*/
/* For the "Remove" column */
a!gridLayoutHeaderCell(label: " " )
},
/* Only needed when some columns need to be narrow */
columnConfigs: {
a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight:3 ),
a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight:3 ),
a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight:3 ),
a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight:3 ),
a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight:3 ),
a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight:2 ),
a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 4),
a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 3)
},
/*
* a!forEach() will take local!employee data and used that data to loop through an
* expression that creates each row.
*
* When modifying the recipe to work with your data, you only need to change:
* 1.) the number of fields in each row
* 2.) the types of fields for each column (i.e. a!textField() for text data elements)
* 3.) the fv!item elements. For example fv!item.firstName would change to fv!item.yourdata
*/
rows: a!forEach(
items: local!datasubset,
expression: a!gridRowLayout(
id: fv!index,
contents: {
/*a!textField(*/
/* Labels are not visible in grid cells but are necessary to meet accessibility requirements */
/*label: "Employee Id " & fv!index,*/
/*value: fv!item.Employee_Id,*/
/*saveInto: fv!item.Employee_Id,*/
/*required: true*/
/*),*/
/* For the Employee Name Column*/
a!textField(
/* Labels are not visible in grid cells but are necessary to meet accessibility requirements */
label: "Employee Name " & fv!index,
value: fv!item.Employee_Name,
saveInto: {fv!item.Employee_Name,
a!save(local!Employeedata[fv!identifier],
updatedictionary(local!Employeedata[fv!identifier],
{Employee_Name: save!value}
))
},
required: true
),
/* For the DOB Column*/
a!dateField(
label: "DOB " & fv!index,
value: fv!item.DOB,
saveInto: {fv!item.DOB,
a!save(local!Employeedata[fv!identifier],
updatedictionary(local!Employeedata[fv!identifier],
{DOB: save!value}
))
},
required:true
),
/* For the Department Column*/
a!dropdownField(
label: "Department " & fv!index,
placeholder: "-- Select -- ",
choiceLabels: {"Desktop Support", "Helpdesk","Systems Engineering","Network Engineering","Application Management"},
choiceValues: {"Desktop Support", "Helpdesk","Systems Engineering","Network Engineering","Application Management"},
value: fv!item.Department,
saveInto: {fv!item.Department,
a!save(local!Employeedata[fv!identifier],
updatedictionary(local!Employeedata[fv!identifier],
{Department: save!value}
))
},
required:true
),
/* For the Designation Column*/
a!dropdownField(
label: "Designation " & fv!index,
placeholder: "-- Select -- ",
ChoiceLabels: {"Cloud Computing Engineer", "Network Specialist", "Support Specialist", "Database Administrator",
"Information Technology Analyst", "Technology Leadership", "Security Specialist", "Software/Application Developer"},
choiceValues: {"Cloud Computing Engineer", "Network Specialist", "Support Specialist", "Database Administrator",
"Information Technology Analyst", "Technology Leadership", "Security Specialist", "Software/Application Developer"},
value: fv!item.Designation,
saveInto: {fv!item.Designation,
a!save(local!Employeedata[fv!identifier],
updatedictionary(local!Employeedata[fv!identifier],
{Designation: save!value}
))
},
required:true
),
/* For the Phone Number Column*/
/*a!textField(*/
/*label: "Phone Number " & fv!index,*/
/*placeholder:"555-456-7890",*/
/*value: fv!item.Phone_Number,*/
/*saveInto: fv!item.Phone_Number*/
/*),*/
a!dateField(
label: "Date Of Joining " & fv!index,
value: fv!item.Date_Of_Joining,
saveInto: {fv!item.Date_Of_Joining,
a!save(local!Employeedata[fv!identifier],
updatedictionary(local!Employeedata[fv!identifier],
{Date_Of_Joining: save!value}
))
},
required:true,
align: "RIGHT"
),
/* For the Gender Column*/
a!dropdownField(
label: "Gender " & fv!index,
placeholder: "-- Select -- ",
choiceLabels: {"Male","Female"},
choiceValues: {"Male","Female"},
value: fv!item.Gender,
saveInto: {fv!item.Gender,
a!save(local!Employeedata[fv!identifier],
updatedictionary(local!Employeedata[fv!identifier],
{Gender: save!value}
))
},
required:true
),
/* For the Email Address Column*/
a!textField(
label: "Email Address" & fv!index,
value: fv!item.Email_Address,
saveInto: {fv!item.Email_Address,
a!save(local!Employeedata[fv!identifier],
updatedictionary(local!Employeedata[fv!identifier],
{Email_Address: save!value}
))
},
required:true
),
a!textField(
label: "Status" &fv!index,
value: cons!ETA_Status,
saveInto:{cons!ETA_Status,
a!save(local!Employeedata[fv!identifier],
updatedictionary(local!Employeedata[fv!identifier],
{Email_Address: save!value}
))
},
required:true
),
/* For the Removal Column*/
a!richTextDisplayField(
label: "Action",
value: a!richTextIcon(
icon: "close",
/*color: "STANDARD",*/
altText: "delete " & fv!index,
caption: "Remove" & fv!item.Employee_Name,
link: a!dynamicLink(
value: fv!identifier,
saveInto: { if(
isnull( fv!identifier),
{},
a!save( local!deletedEmployeeIds, append(local!deletedEmployeeIds, fv!item.Employee_Id))
),
a!save(ri!Value2, true),
a!save(ri!EmployeeId, local!deletedEmployeeIds),
a!save(local!Employeedata, remove(local!Employeedata, save!value)),
disabled: contains(local!Employeedata, fv!index)
}
),
linkStyle: "STANDALONE",
color: "NEGATIVE"
)
)
}
)
),
addRowlink: a!dynamicLink(
label: "Add Employee",
value: 'type!{urn:com:appian:types:ETA}ETA_EmployeeDt'(),
saveInto: {
a!save(local!Employeedata, append(local!Employeedata, save!value))
}
),
shadeAlternateRows: true,
rowHeader: 1
),
/* Pagination Functionality */
rule!ETA_customPagingForGrid(
startIndex: local!startIndex,
batchSize: local!batchSize,
totalCount: local!datasubset.totalCount
)
},
buttons: a!buttonLayout(
primaryButtons: a!buttonWidget(
label: "Submit",
saveInto: a!save(ri!Item,local!Employeedata),
submit: true,
style: "PRIMARY"
),
secondaryButtons: {
a!buttonWidget(
label: "Cancel",
value: true,
saveInto: {ri!Cancel},
submit: true,
style: "NORMAL",
validate: false
)
}
)
)
)
