Question

Fetch Foreign Key values in Child Table

Forum|Forum|3 years ago
April 4, 2023
12 replies
0 views

Hi Community Team,

Here, I'm using two Cdt's One parent table (Emoloyee Details) and one child table (Comments).

I'm calling primary key in the parent table into the child table to fetch the values in the Child table. I'm getting NULL instead of primary key of parent Cdt. Please help me out how to configure this error?

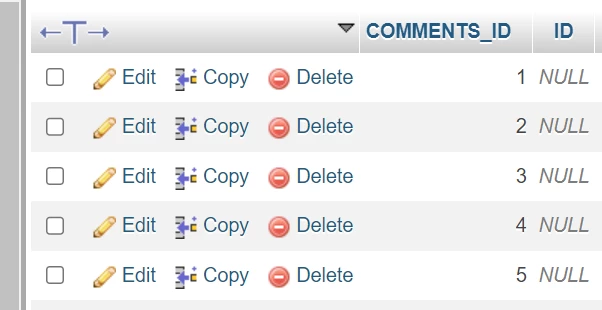

Child PK Parent FK

Comments_ID Employee_ID

1 NULL

2 NULL

3 NULL

4 NULL

5 NULL

S

sanchitg0002

Can you show the code you've written and any supporting screenshots?

C

chandrasekharr5247Author

Here you go...

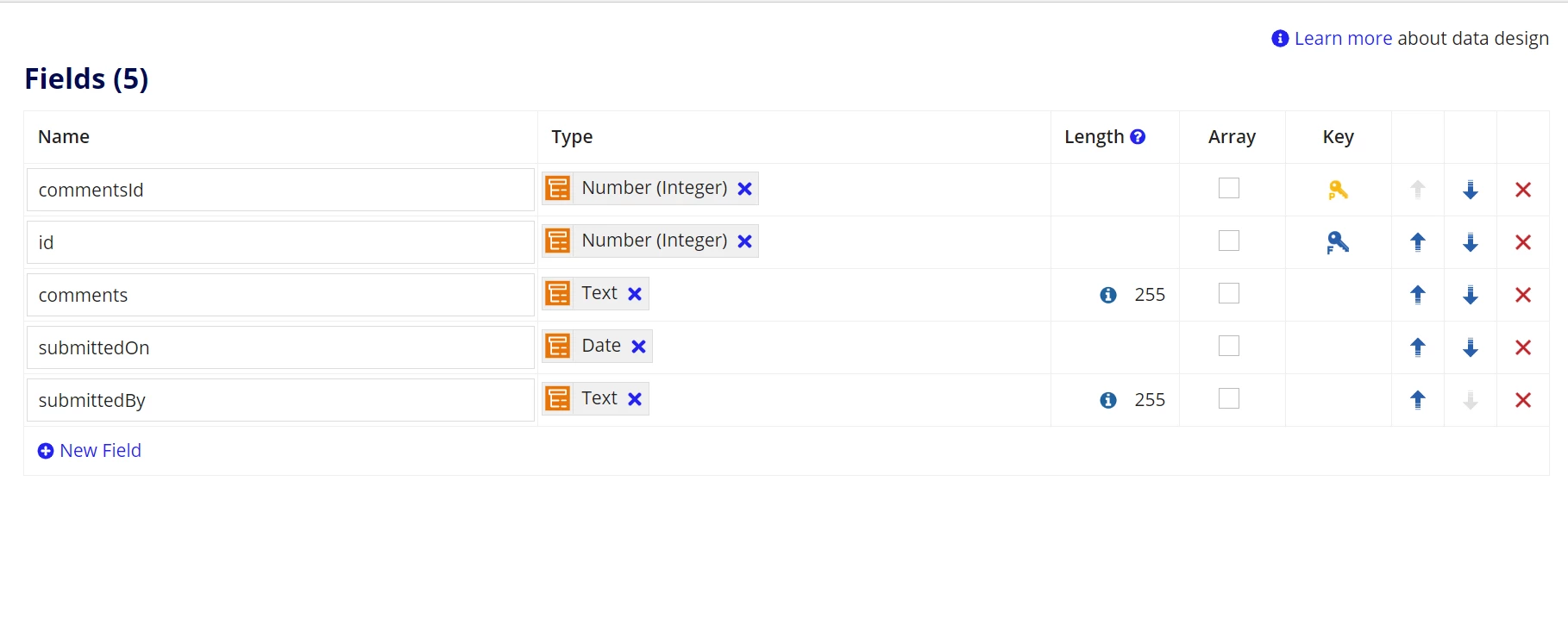

Parent Cdt Child Cdt

Database

D

deepakg681722

You have to use two seperate writeToDatastore entity smart service to write the data with foreign key concept. In the first WritetoDatastoreEntity insert the value to parent Table and save the inserted value to the same variable in the output of that node and in the second writetodatastoreentity use the parent variable primary key to store it as a foreign key. With that, you will be able to add parent table id to child table.

abhayd3663

The Employee table should have the FK ref. to Comments table. Not the other way round. Comments table don't need any FK reference.

Employee Table

---------------------

id - PK

empId

empName

commentsId - FK to Comments.id

R

ramkumarreddyt0001

You can try to save the output from first write to data store entity to a cdt or any process variable of your choice, then in the script task use the cdt in custom outputs, target as path where you want to store the primary key.
