gridField - fv!row vs fv!identifier

Hello Folks:

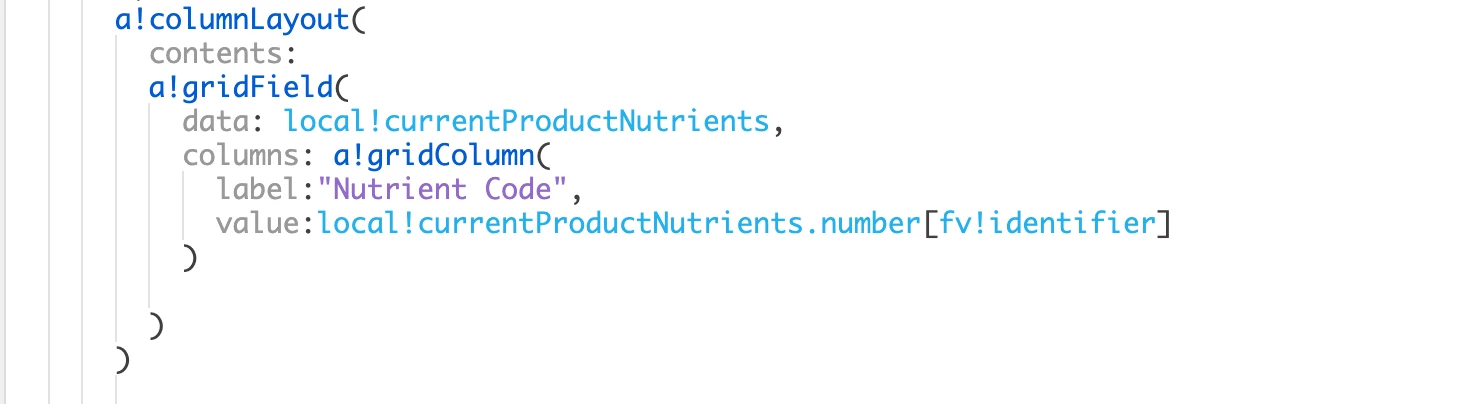

I am trying to figure out why the "value: ......." works when I use fv!identifier but fails when I use fv!row (this gives me all 14 values as the output) whereas I am looking for just the current grid-row's value (one value).  The gridfied documentation seem to imply both are equi

As usual, thanks to the community on my Appian learning journey.

Ma

mikes0011
mikes0011Answer
Brainy
Mar 9, 2023 1:27 PM UTC

The main issue is you're not using fv!row correctly at all -- fv!row is the row value, it's not something that you'd use to access a positional index of the original array, which is what you're trying to do here for some reason.

The proper syntax is:

value: fv!row.number  /* or whatever property of the original dictionary you want to access here */

The Expression Guru

17 replies

harshitb6843
Brainy
Mar 9, 2023 6:40 AM UTC

The problem is with the ".number" in value. If you add the same on the data parameter, then fv!row should work.

man0001Author
Inspiring
Mar 9, 2023 1:20 PM UTC

Hi Harshit:

Thank you for your response.  I tried various combinations.  I am trying to create a grid layout with the following columns:

Number | Name | Amount | Unit

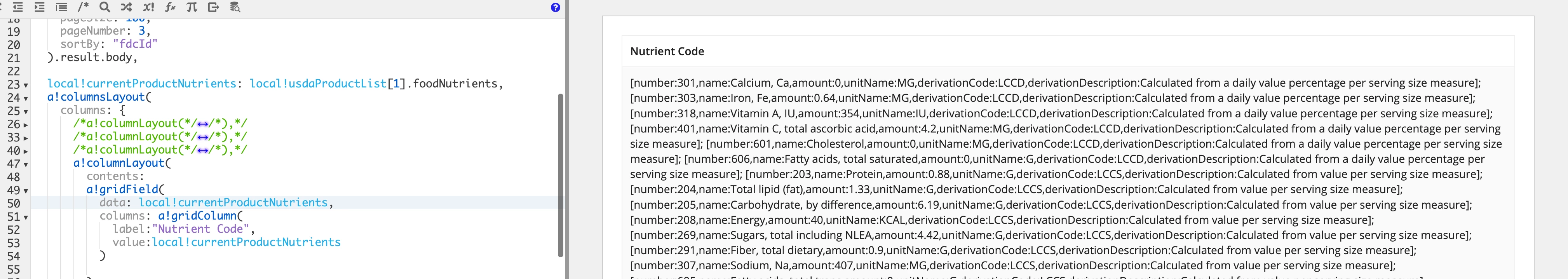

Here is my data: output I am starting with:

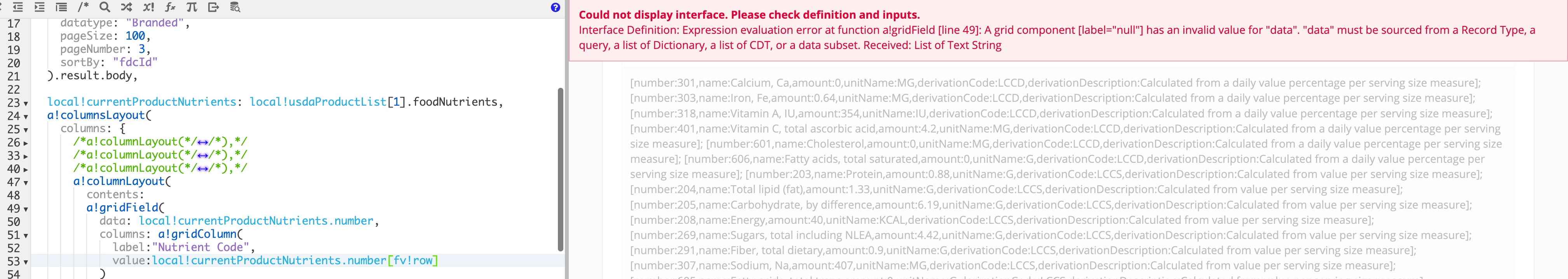

I get errors when I tried to move the '.number' to the data-attribute.

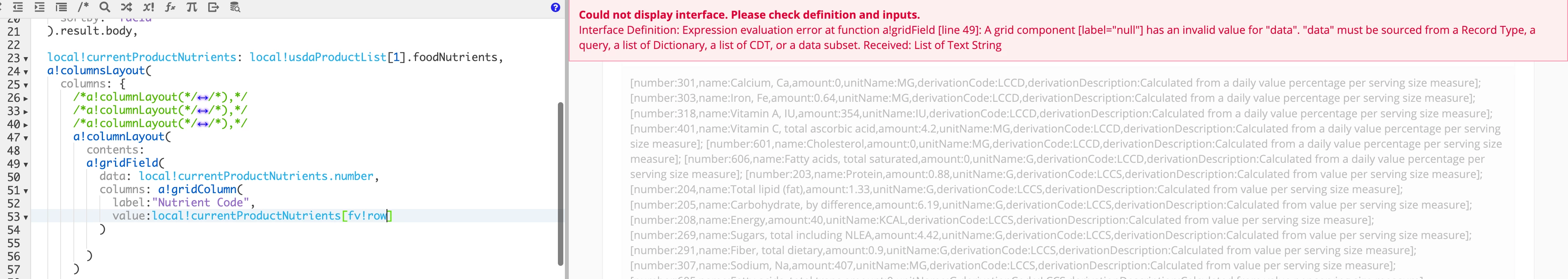

I also get errors when I tried a couple other variations of fv!row and .number.

stefanhelzle0001
Brainy
Mar 9, 2023 7:29 AM UTC

The grid field expects a datasubset as the datasource. It iterates on the items and make each individual item available as fv!row and the corresponding identifier (datasubset.identifiers) as fv!identifier.

man0001Author
Inspiring
Mar 9, 2023 1:15 PM UTC

Hi Stefan:

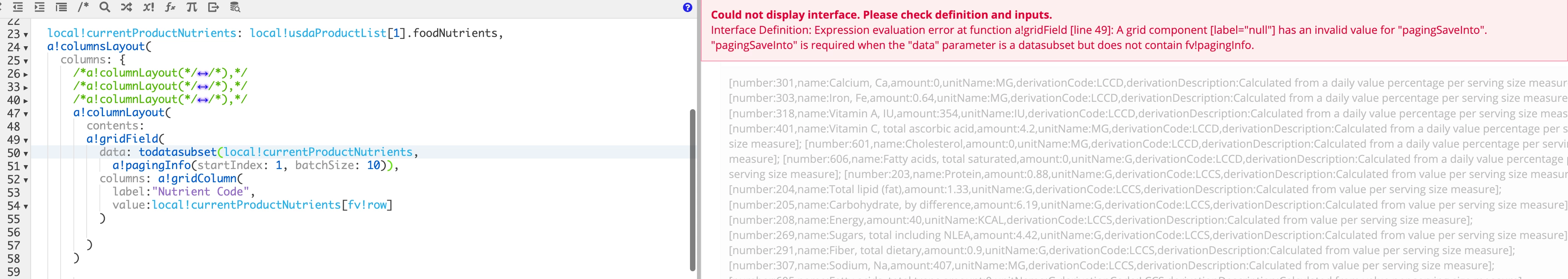

Thank you for your response.  I tried datasubset variations too.  Those led to errors too.

mikes0011
mikes0011Answer
Brainy
Mar 9, 2023 1:27 PM UTC

The main issue is you're not using fv!row correctly at all -- fv!row is the row value, it's not something that you'd use to access a positional index of the original array, which is what you're trying to do here for some reason.

The proper syntax is:

value: fv!row.number  /* or whatever property of the original dictionary you want to access here */

The Expression Guru
komalj3844
Participating Frequently
Mar 9, 2023 1:20 PM UTC

Could you please share the data store in local variable currentProductNutrients

man0001Author
Inspiring
Mar 9, 2023 1:30 PM UTC

HI Komalj

If I understand your request correctly, this is the information you information you are seeking.

komalj3844
Participating Frequently
Mar 9, 2023 2:25 PM UTC

Hi

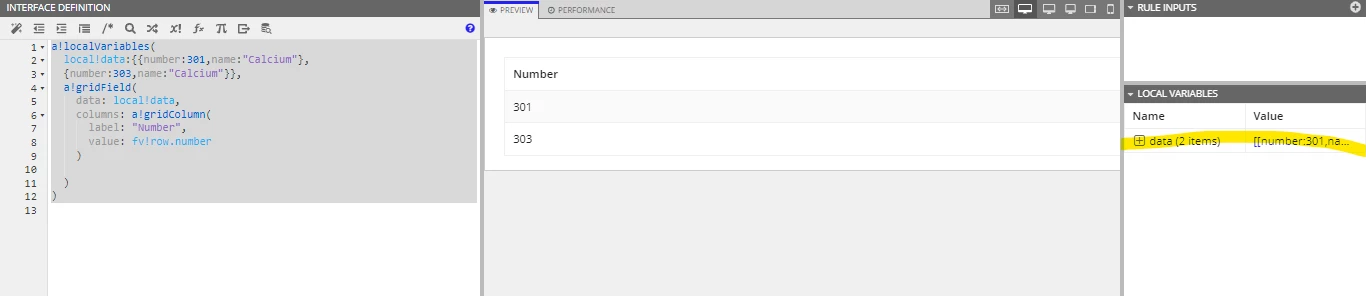

I tried this

a!localVariables(
local!data:{{number:301,name:"Calcium"},
{number:303,name:"Calcium"}},
a!gridField(
data: local!data,
columns: a!gridColumn(
label: "Number",
value: fv!row.number
)

)
)

and it worked

Are you using a!localVariables if yes could you please share the data of you local variable from the local variable data section

I strongly feel your data structure is incorrect
