Question

How populate a Read Only Grid using a ER

Forum|Forum|4 years ago
August 26, 2021
9 replies
0 views

Hello

I need to create a summary I have two sections, one of them with date information In the other one I need to use a Read Only Grid, to show I created a ER. to return data using an Id, but I don`t know how used the ER, in the Read Only Grid. I don't know what to put in the expression field

Someone could you help me please?

Best regards

peter.lewis

Employee

That expression field is just used for testing - if you have an ID you want to use you can just put the number directly in that field to test your expression rule. Does your expression rule work on its own? If so, you should be able to plug in the results of your expression rule as the "data" parameter in the read only grid. If that doesn't work, can you provide more information? Specifically if you provide the expression for your expression rule and your interface expression that can help us make suggestions. Also if you add code please use Insert > Insert Code to make it easy to read.

eddym0001Author

Hello

thanks for you help.

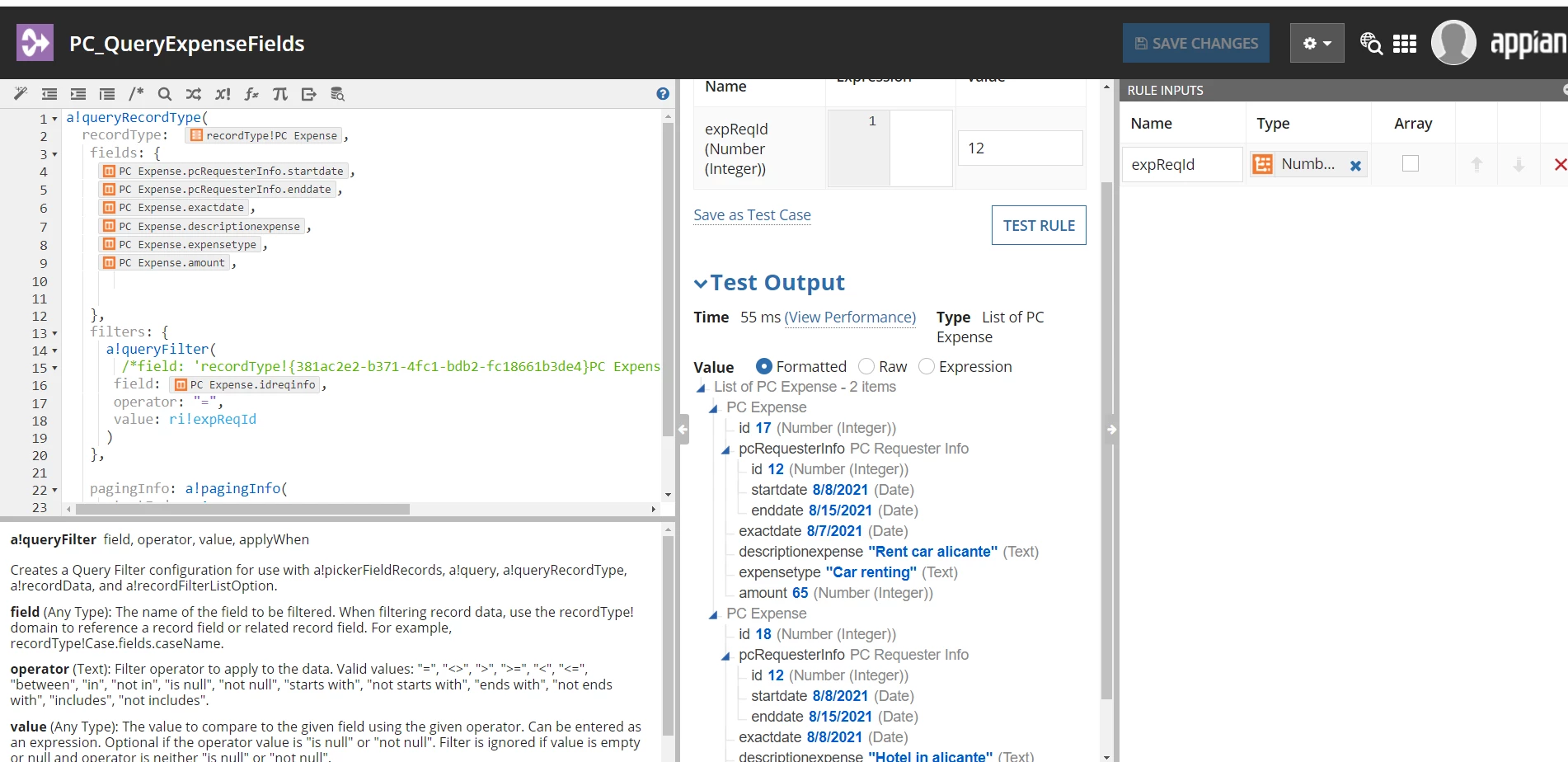

When I created a ER and test , everything is OK, Test of my ER

This is the code, I have two record type (expense and requesterInfo) and the FK is in the expense table is (idreqinfo) which is joined with id in the table requesterInfo., Here everyting is OK

a!queryRecordType(
  recordType:  'recordType!{381ac2e2-b371-4fc1-bdb2-fc18661b3de4}PC Expense',
   fields: {
    'recordType!{381ac2e2-b371-4fc1-bdb2-fc18661b3de4}PC Expense.relationships.{9a441a7e-5c42-4313-bdaf-9eed44a21b4d}pcRequesterInfo.fields.{e40c4dec-ebe2-455f-b680-9021c31f357b}startdate',
    'recordType!{381ac2e2-b371-4fc1-bdb2-fc18661b3de4}PC Expense.relationships.{9a441a7e-5c42-4313-bdaf-9eed44a21b4d}pcRequesterInfo.fields.{d00ffb9f-ce95-46e5-9db1-401acf2ae284}enddate',
    'recordType!{381ac2e2-b371-4fc1-bdb2-fc18661b3de4}PC Expense.fields.{7a76d3a5-e6da-4499-a397-b1793f908f65}exactdate',
    'recordType!{381ac2e2-b371-4fc1-bdb2-fc18661b3de4}PC Expense.fields.{f6db5b09-0085-428a-b6ac-3601dd5216c8}descriptionexpense',
    'recordType!{381ac2e2-b371-4fc1-bdb2-fc18661b3de4}PC Expense.fields.{e806b9fe-3063-4687-af7d-d1327b0cf31b}expensetype',
    'recordType!{381ac2e2-b371-4fc1-bdb2-fc18661b3de4}PC Expense.fields.{de0cf724-3ff1-42b9-8253-ee02eb18e183}amount',


   },
   filters: {
     a!queryFilter(
       /*field: 'recordType!{381ac2e2-b371-4fc1-bdb2-fc18661b3de4}PC Expense.fields.{79efa416-8a4d-4cee-928f-8d7c696e03bd}id',*/
      field: 'recordType!{381ac2e2-b371-4fc1-bdb2-fc18661b3de4}PC Expense.fields.{a493011d-d2ff-41f7-a415-f066f778c2e4}idreqinfo',
      operator: "=",
      value: ri!expReqId
     )
   },

   pagingInfo: a!pagingInfo(
     startIndex: 1,
     batchSize: 100,
     )
).data

So. I need created a grid and populated with expense information, I created a ER, to returns ONLY expense information but when try to use in the interface, it is not working.

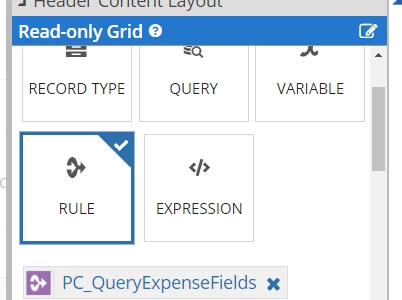

I am setting DATA with

And

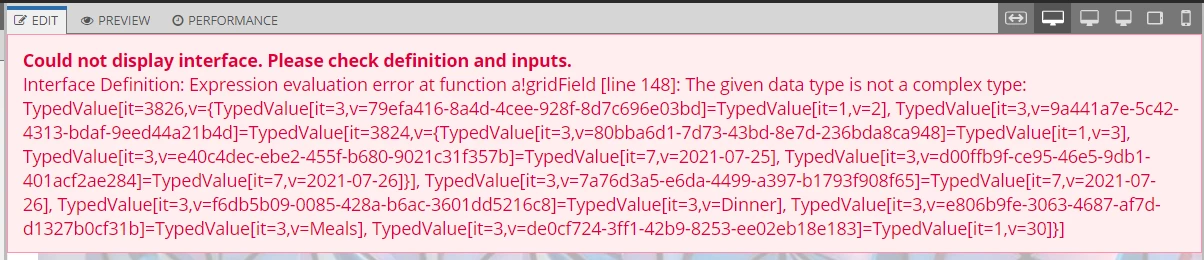

I click in save and this error is returned

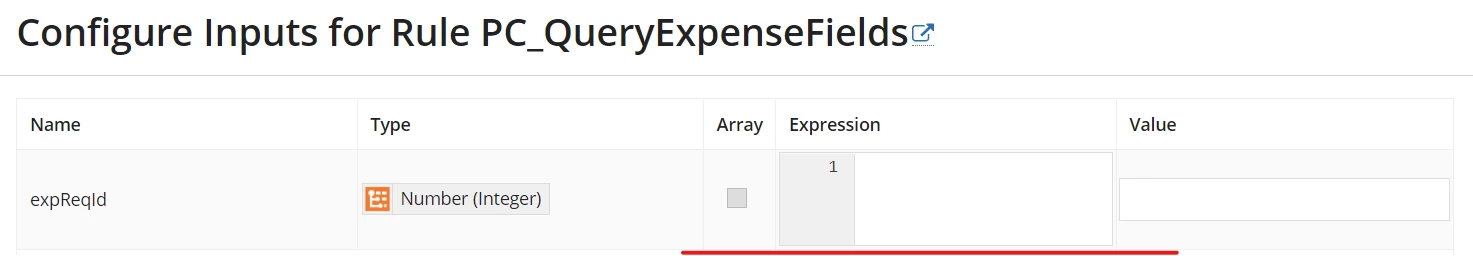

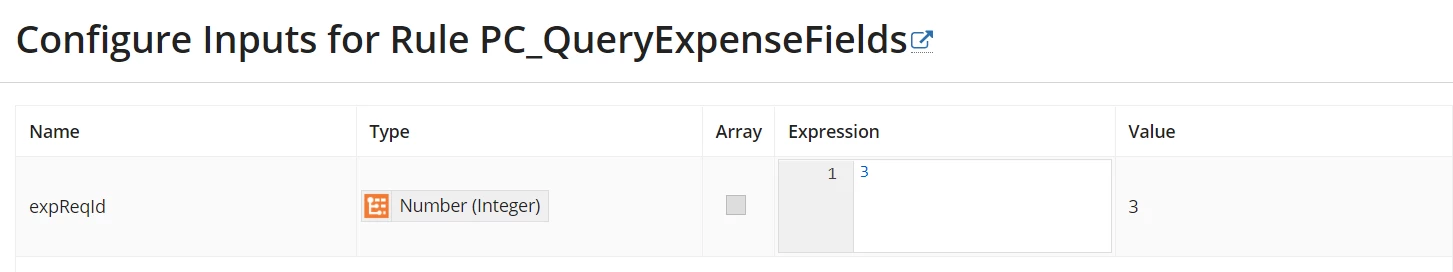

What kind information I need set here: Configure Inputs

Could you help me, please?

Best regards

peter.lewis

Employee

Thanks for the detailed explanation! There's actually an easier way to do this if you want to display record data in a grid. Instead of creating a separate expression rule, you can set the source of your grid to be a record type. Then, you can use any of the fields in your columns (including related data).

The other thing to keep in mind is that in your section for configuring inputs, you need to define which record ID is going to return items for the grid. If you're showing this on a record summary view, you likely don't want this to always be the same value - instead, you want it to change based on which record view you're looking at. In order to configure that, your expReqId should reference a rule input in your interface so you can dynamically pass the results of your record.
