Question

How to store HTTP response of an integration to CDT in a process model variable

  • July 16, 2021
  • 7 replies
  • 0 views

Hi All,

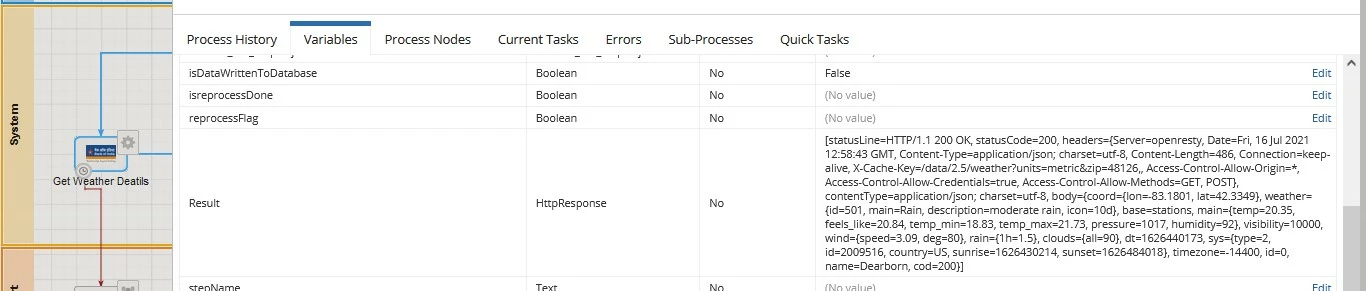

I have a integration point in process and it is returning HTTP Response.

I would like to know how to convert HTTP Response to CDT .

in HTTP Response there is body attribute which i want to convert directly to CDT if possible.

I have already created a CDT with the same structure.

Example :

body={coord={lon=-83.1801, lat=42.3349}, weather={id=501, main=Rain, description=moderate rain, icon=10d}, base=stations, main={temp=20.35, feels_like=20.84, temp_min=18.83, temp_max=21.73, pressure=1017, humidity=92}, visibility=10000, wind={speed=3.09, deg=80}, rain={1h=1.5}, clouds={all=90}, dt=1626440173, sys={type=2, id=2009516, country=US, sunrise=1626430214, sunset=1626484018}, timezone=-14400, id=0, name=Dearborn, cod=200}

Thanks,

Gaurav

    7 replies

    G
    gauravp915957Author
    July 16, 2021

    i am using convert json to appian value

    madhusudans0001
    madhusudans0001
    July 16, 2021

    You can try casting the body to the CDT or create a new CDT object and assign the values from the body.

    G
    gauravp915957Author
    July 16, 2021

    thanks for your response , so should i use a script task and then do this transformation?

    madhusudans0001
    madhusudans0001
    July 16, 2021

    Yeah, you can call your integration via Script Task or Call Integration Service in the process model and do the conversion.

    peter.lewis
    peter.lewis
    Employee
    July 16, 2021

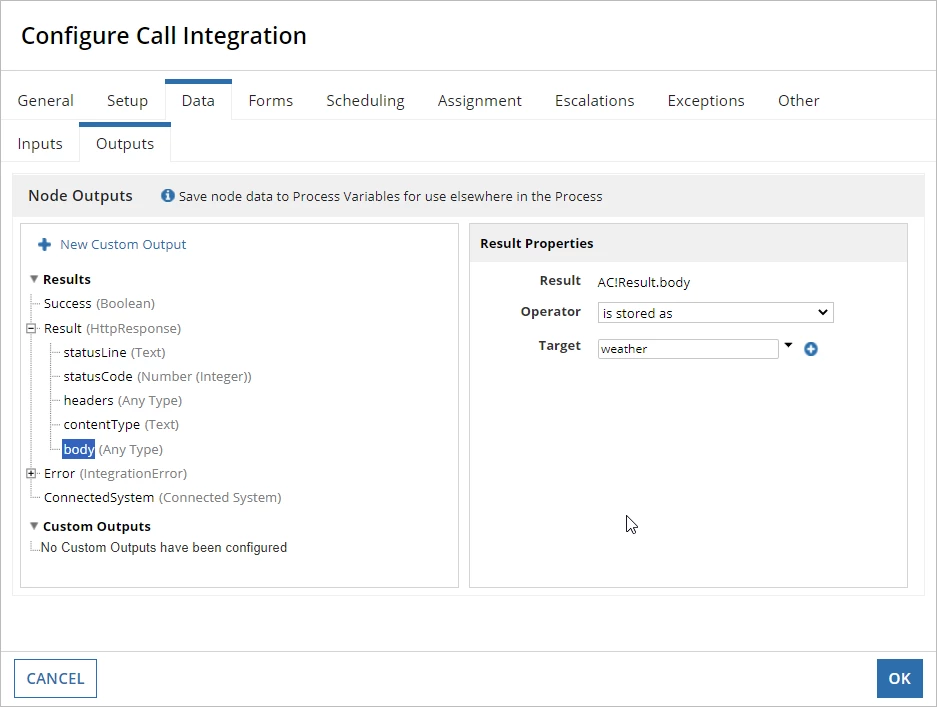

    It's usually easiest to do this directly in the Call Integration Smart Service Itself. If you use "AC!Result.body", you can save the results directly to a process variable that uses a CDT list and Appian will cast automatically.

      G
      gauravp915957Author
      July 19, 2021

      Dear [mention:6b9f80ff18f9420082d13ef2d5121d56:e9ed411860ed4f2ba0265705b8793d05], thank you so much for your guidance.

      My bad , not sure why I did not click on + sign and see if I can map individual parameters of Result object.

      I would like to take this opportunity to thank you for your excellent Appian's Tutorials videos , in last 1 month i have gone through all tutorial videos posted @Appian online course site.

      The way you have explained the concepts are amazing. Great Work [emoticon:1435ff2429184e17bc948e4f19178e1e]!

      Thanks,

      Gaurav

      R
      ramkumarreddyt0001
      April 17, 2023

      Can you share how does your CDT look like, I was also having the same issue
