multipleDropdownField selection issue

  • April 17, 2023
  • 13 replies
  • 0 views

Hi,

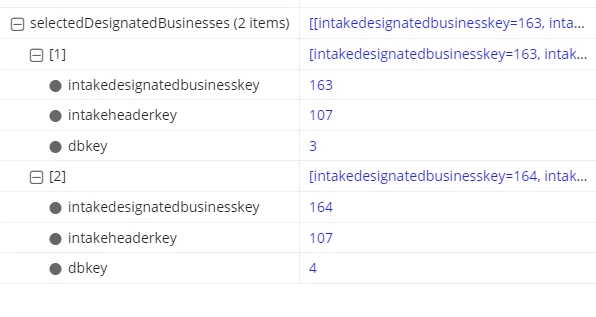

I have a multipleDropdownField with the attached code.

I am getting an error when I try to select any additional item from the dropdown.

Can someone give me an idea how to fix the issue. Thanks in advance.

Using the below code while Testing the user interface.

rule input:

lcmIntakeDesignatedBusinesses:

Best answer by sanchitg0002

Try this:

a!localVariables(
  local!dbkeysFromRi: ri!lcmIntakeDesignatedBusinesses.dbkey,
  local!designatedBusiness: {
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'(dbkey: 1, dbname: "Test-1"),
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'(dbkey: 2, dbname: "Test-2"),
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'(dbkey: 3, dbname: "Test-3"),
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'(dbkey: 4, dbname: "Test-4")
  },
  local!selectedDesignatedBusinesses: if(
    a!isNullOrEmpty(ri!lcmIntakeDesignatedBusinesses),
    null(),
    ri!lcmIntakeDesignatedBusinesses.dbkey
  ),
  local!addItems: difference(
    local!selectedDesignatedBusinesses,
    local!dbkeysFromRi
  ),
  local!removeItems: wherecontains(
    difference(
      local!dbkeysFromRi,
      local!selectedDesignatedBusinesses
    ),
    ri!lcmIntakeDesignatedBusinesses.dbkey
  ),
  a!formLayout(
    label: "Form",
    contents: {
      a!sectionLayout(
        contents: {
          a!multipleDropdownField(
            label: "Designated Business/Function",
            labelPosition: "ABOVE",
            helpTooltip: "Designated Business/Function",
            placeholder: "Select a Designated Business/Function",
            choiceLabels: index(local!designatedBusiness, "dbname", ""),
            choiceValues: index(local!designatedBusiness, "dbkey", ""),
            value: local!selectedDesignatedBusinesses,
            saveInto: local!selectedDesignatedBusinesses,
            required: true
          )
        }
      ),

    },
    buttons: a!buttonLayout(
      primaryButtons: {
        a!buttonWidget(
          label: "Submit",
          submit: true,
          style: "PRIMARY",
          saveInto: {
            a!forEach(
              local!addItems,
              a!save(
                ri!lcmIntakeDesignatedBusinesses,
                append(
                  ri!lcmIntakeDesignatedBusinesses,
                  'type!{urn:com:appian:types:LCM}LCM_IntakeDesignatedBusiness'(
                    intakedesignatedbusinesskey: null,
                    intakeheaderkey: null,
                    dbkey: fv!item
                  )
                )
              )
            ),
            a!save(
              ri!lcmIntakeDesignatedBusinesses,
              remove(
                ri!lcmIntakeDesignatedBusinesses,
                local!removeItems
              )
            )
          }
        )
      },
      secondaryButtons: {
        a!buttonWidget(
          label: "Cancel",
          value: true,
          saveInto: ri!cancel,
          submit: true,
          style: "NORMAL",
          validate: false
        )
      }
    )
  )
)

I have saved the desired values (addition/removal) in the rule input on Submit button saveInto

13 replies

A
angelg0002
April 17, 2023

I see in your a!multipleDropdownField that your value is local!selectedDesignatedBusinesses.dbkey, while the saveInto is local!selectedDesignatedBusinesses. That's not correct, you should save value of the same type. I recommend save the object LCM_IntakeDesignatedBusiness instead of only one field

    swapnar6405
    swapnar6405Author
    April 17, 2023

    Hi,

    If I re-write saveInto like below, all my previous value are overriding with latest selection.

     ri!lcmIntakeDesignatedBusinesses.dbkey,

    harshitb6843
    harshitb6843
    April 18, 2023

    Did you check if the above-mentioned field is a multiple type one?

    pragnaj0001
    pragnaj0001
    April 17, 2023

    Try This.

    a!localVariables(
    local!designatedBusiness: {
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'('dbkey': 1, 'dbname': "Test-1"),
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'('dbkey': 2, 'dbname': "Test-2"),
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'('dbkey': 3, 'dbname': "Test-3"),
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'('dbkey': 4, 'dbname': "Test-4")
    },
    local!selectedDesignatedBusinesses,
    a!formLayout(
    label: "Form",
    contents: {
    a!sectionLayout(
    contents: {
    a!multipleDropdownField(
    label: "Designated Business/Function",
    labelPosition: "ABOVE",
    helpTooltip: "Designated Business/Function",
    placeholder: "Select a Designated Business/Function",
    choiceLabels: index(local!designatedBusiness, "dbname", ""),
    choiceValues: index(local!designatedBusiness, "dbkey", ""),
    value: local!selectedDesignatedBusinesses,
    saveInto: {
    local!selectedDesignatedBusinesses,

    },
    required: true
    )
    }
    ),

    },
    buttons: a!buttonLayout(
    primaryButtons: {
    a!buttonWidget(
    label: "Submit",
    submit: true,
    style: "PRIMARY"
    )
    },
    secondaryButtons: {
    a!buttonWidget(
    label: "Cancel",
    value: true,
    saveInto: ri!cancel,
    submit: true,
    style: "NORMAL",
    validate: false
    )
    }
    )
    )
    )

    swapnar6405
    swapnar6405Author
    April 17, 2023

    When the page loads, I will have few values in the below variable

    local!selectedDesignatedBusinesses

    I have to be in a position to retain those values in addition to new selections.

    S
    sanchitg0002Answer
    April 18, 2023

    Try this:

    a!localVariables(
  local!dbkeysFromRi: ri!lcmIntakeDesignatedBusinesses.dbkey,
  local!designatedBusiness: {
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'(dbkey: 1, dbname: "Test-1"),
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'(dbkey: 2, dbname: "Test-2"),
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'(dbkey: 3, dbname: "Test-3"),
    'type!{urn:com:appian:types:LCM}LCM_DesignatedBusinesses'(dbkey: 4, dbname: "Test-4")
  },
  local!selectedDesignatedBusinesses: if(
    a!isNullOrEmpty(ri!lcmIntakeDesignatedBusinesses),
    null(),
    ri!lcmIntakeDesignatedBusinesses.dbkey
  ),
  local!addItems: difference(
    local!selectedDesignatedBusinesses,
    local!dbkeysFromRi
  ),
  local!removeItems: wherecontains(
    difference(
      local!dbkeysFromRi,
      local!selectedDesignatedBusinesses
    ),
    ri!lcmIntakeDesignatedBusinesses.dbkey
  ),
  a!formLayout(
    label: "Form",
    contents: {
      a!sectionLayout(
        contents: {
          a!multipleDropdownField(
            label: "Designated Business/Function",
            labelPosition: "ABOVE",
            helpTooltip: "Designated Business/Function",
            placeholder: "Select a Designated Business/Function",
            choiceLabels: index(local!designatedBusiness, "dbname", ""),
            choiceValues: index(local!designatedBusiness, "dbkey", ""),
            value: local!selectedDesignatedBusinesses,
            saveInto: local!selectedDesignatedBusinesses,
            required: true
          )
        }
      ),

    },
    buttons: a!buttonLayout(
      primaryButtons: {
        a!buttonWidget(
          label: "Submit",
          submit: true,
          style: "PRIMARY",
          saveInto: {
            a!forEach(
              local!addItems,
              a!save(
                ri!lcmIntakeDesignatedBusinesses,
                append(
                  ri!lcmIntakeDesignatedBusinesses,
                  'type!{urn:com:appian:types:LCM}LCM_IntakeDesignatedBusiness'(
                    intakedesignatedbusinesskey: null,
                    intakeheaderkey: null,
                    dbkey: fv!item
                  )
                )
              )
            ),
            a!save(
              ri!lcmIntakeDesignatedBusinesses,
              remove(
                ri!lcmIntakeDesignatedBusinesses,
                local!removeItems
              )
            )
          }
        )
      },
      secondaryButtons: {
        a!buttonWidget(
          label: "Cancel",
          value: true,
          saveInto: ri!cancel,
          submit: true,
          style: "NORMAL",
          validate: false
        )
      }
    )
  )
)

    I have saved the desired values (addition/removal) in the rule input on Submit button saveInto

      jayaprakashr0001
      jayaprakashr0001
      Participating Frequently
      April 18, 2023

      Hi,

      Try to save all the selected values in the localvariables and while submitting the form append the values to the target variable

      mikes0011
      mikes0011
      Brainy
      April 18, 2023
      append the values to the target variable

      this is not really correct advice for this use case.

      The Expression Guru
      swapnar6405
      swapnar6405Author
      April 18, 2023

      Mike,

      Please advise if you are having any other process to handle this case.
