Question

Navigation Interface Forms

  • April 3, 2023
  • 7 replies
  • 0 views

Hello:

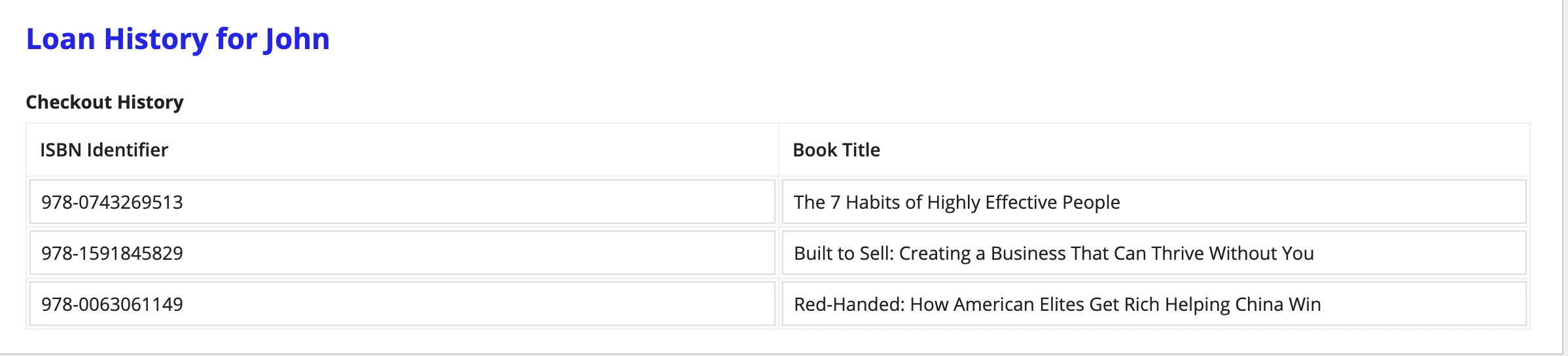

I have two forms - one to display the profile of a library patron and another to display the books the patron has checked out.  Is there a way to navigate from the 'profile' page to the 'check out' page using a button on the profile page without using a process modeler?  Clicking on 'Show History' should display the Loan History screen.

Thank you!

7 replies

pragnaj0001
pragnaj0001
April 3, 2023

call second interface(checkout page). and apply show when parameter.

    M
    man0001Author
    April 4, 2023

    Pragna/Anshu/Deepak:

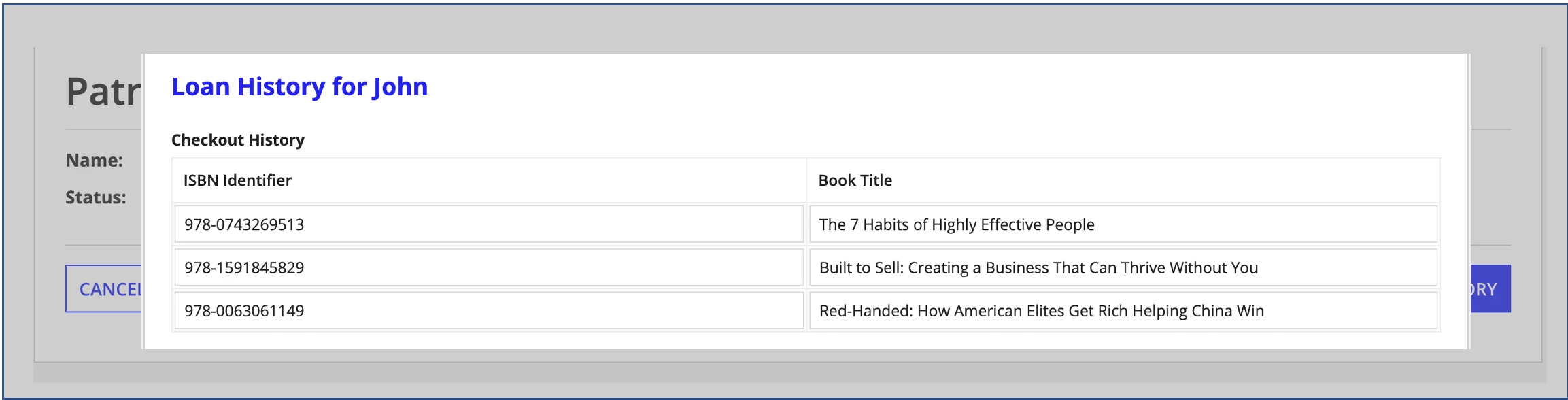

    Thanks for you ideas.  Guess, the designer wants something like this - disable the first window and pop-up the second window.  Is this feasible with using process?

    Thank you.

    anshurajsinghr3189
    anshurajsinghr3189
    April 4, 2023

    In UI Pop-up are not possible.

    anshurajsinghr3189
    anshurajsinghr3189
    April 4, 2023

    When local!showHistory Value =1 when call History interface
    and when click on CheckHistory Button save value in local variable using a!save

    D
    deepakg681722
    April 4, 2023

    You can build multiple interface and call all of those in a parent interface with some flags or showwhen functionality. In that way you will be able to achieve it.

    abhayd3663
    abhayd3663
    April 4, 2023

    #1. Create 2 separate interfaces for Profile and Loan History.

    #2. Create 3rd interface as a Parent to both interfaces created in #1.

    #3. Call interface 1 and 2 in Parent Interface and set the visibility of child interfaces based on the condition using showWhen parameter.

    #4. Call Parent interface in record action as pop-up.
