Question

Save documents, using records

  • March 15, 2024
  • 5 replies
  • 0 views

Hi, I'm new to appian, and most probably this is a obvious one, well im strugulling.

So I have a form, where I want to upload 3 different documents, therfore all of them are saved into document_cdt using the same id.

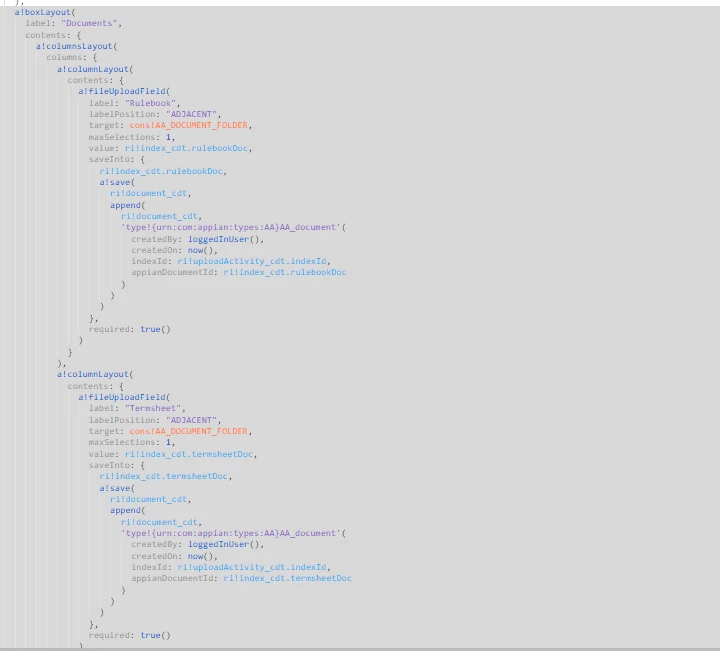

On the interface all looks fine, looks like its saving:

Therefore, when a really try to test its not saving the data into document_cdt:

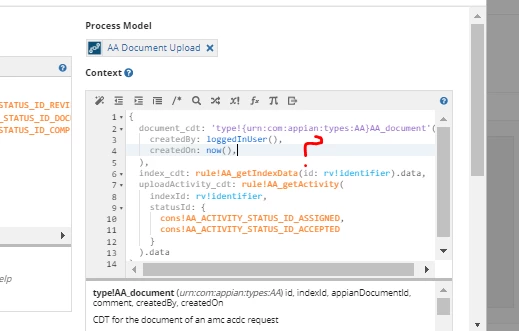

Is it because I have something worng here:

should I add the documentationAppianID ?

    5 replies

    mikes0011
    mikes0011
    Brainy
    March 15, 2024

    What does your process data look like after you submit your form where you've uploaded the files?

    I'm unclear why you would think you need to pass a value into "document_cdt" in the Related Action call.  Generally that data would start out as an Empty Set and then be populated by your on-form logic when the documents themselves are uploaded.  Unless I'm missing something subtle, the code in your top screenshot looks essentially correct.

    Therefore we need more detail into why you say:

    its not saving the data into document_cdt
    V
    victoriab0001Author
    March 15, 2024

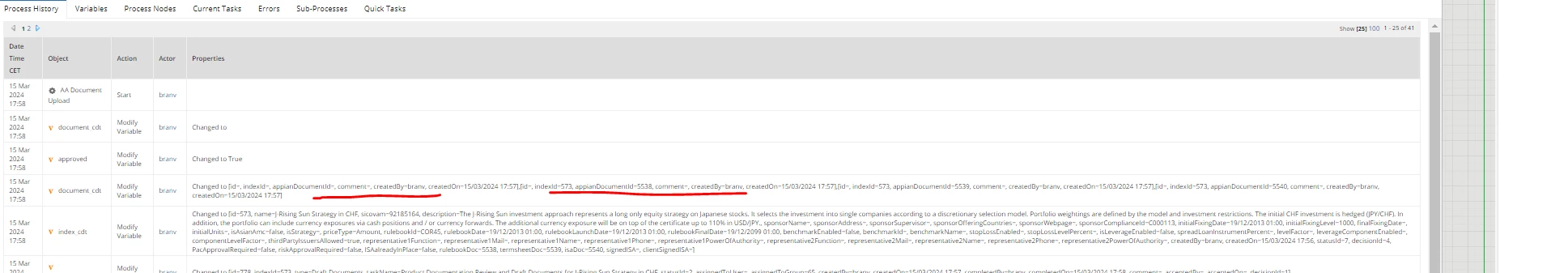

    so if I check the process history I have :

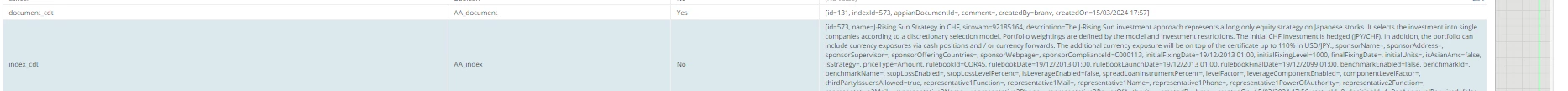

    but then the process variables :

    mikes0011
    mikes0011
    Brainy
    March 15, 2024

    Your interface code is set to save any changes by appending [new] entries to the document_cdt rule input.  That basically means when you initially pass in an empty entry (but with Created By / Created Date values pre-set), you'll end up with a blank entry and then added entries appended after that.  So you almost certainly need to remove the pre-created document_cdt entry from your related action call if you're going to just append new entries to that PV instead of altering the existing entry.

    I'm unsure how you come up with the final screenshot - is this after a WTDS node?  Does the node have the "multiple" value properly set for the CDT?  If it's accidentally set to "single" (i.e. "multiple" is not checked), then it would write ONLY the first entry (which you didn't actually commit any Doc IDs to) and then, i assume, write that value back to the PV, wiping out the other ones you ended up adding.

    V
    victoriab0001Author
    March 19, 2024

    worked, many thanks for your help
