Upon clicking create button the form layout not proceeding further
Hi All,

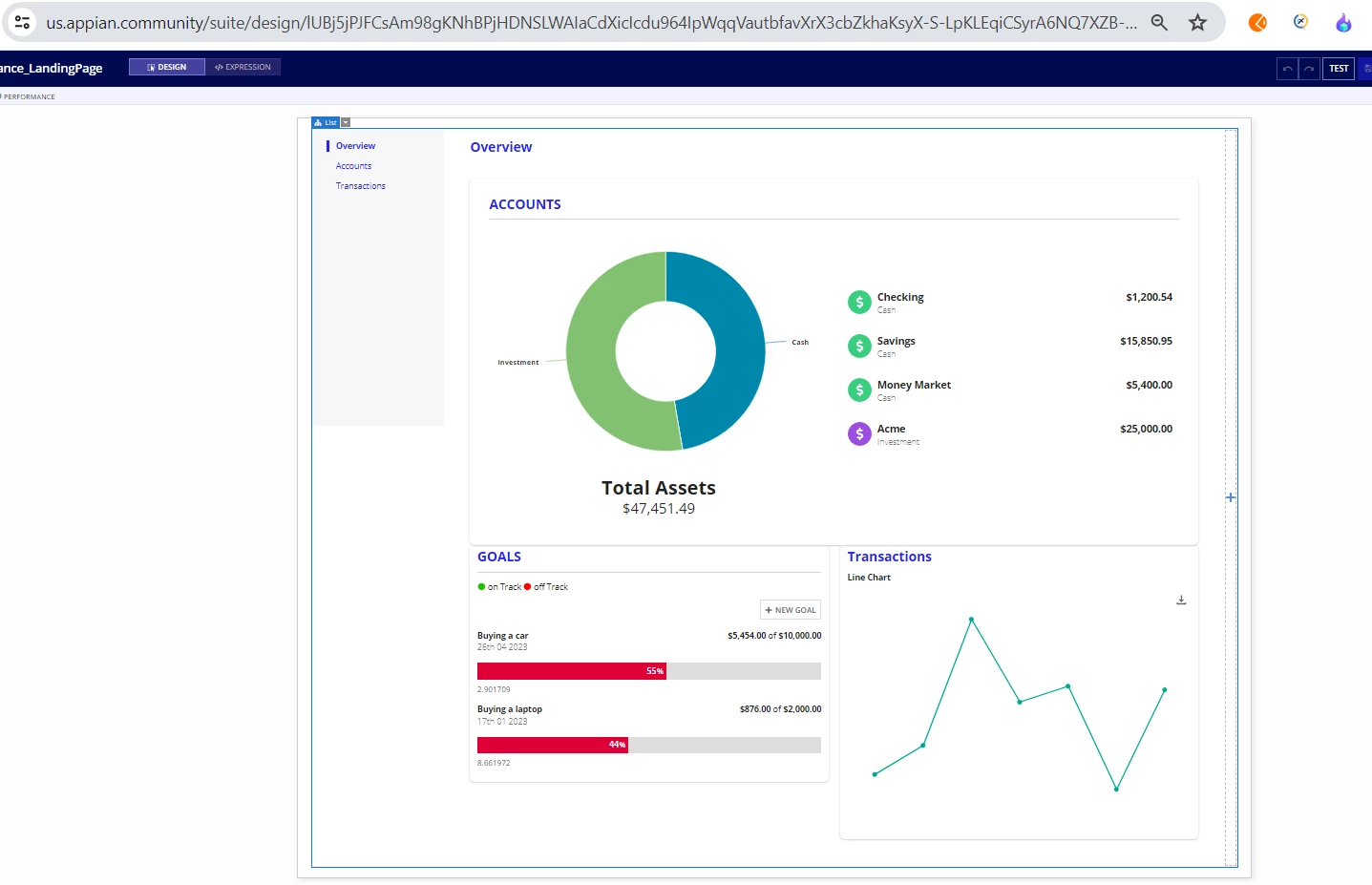

I have created an Interface and it has card layout , when clicking on the link, the related interfaces having those graphs will get displayed.

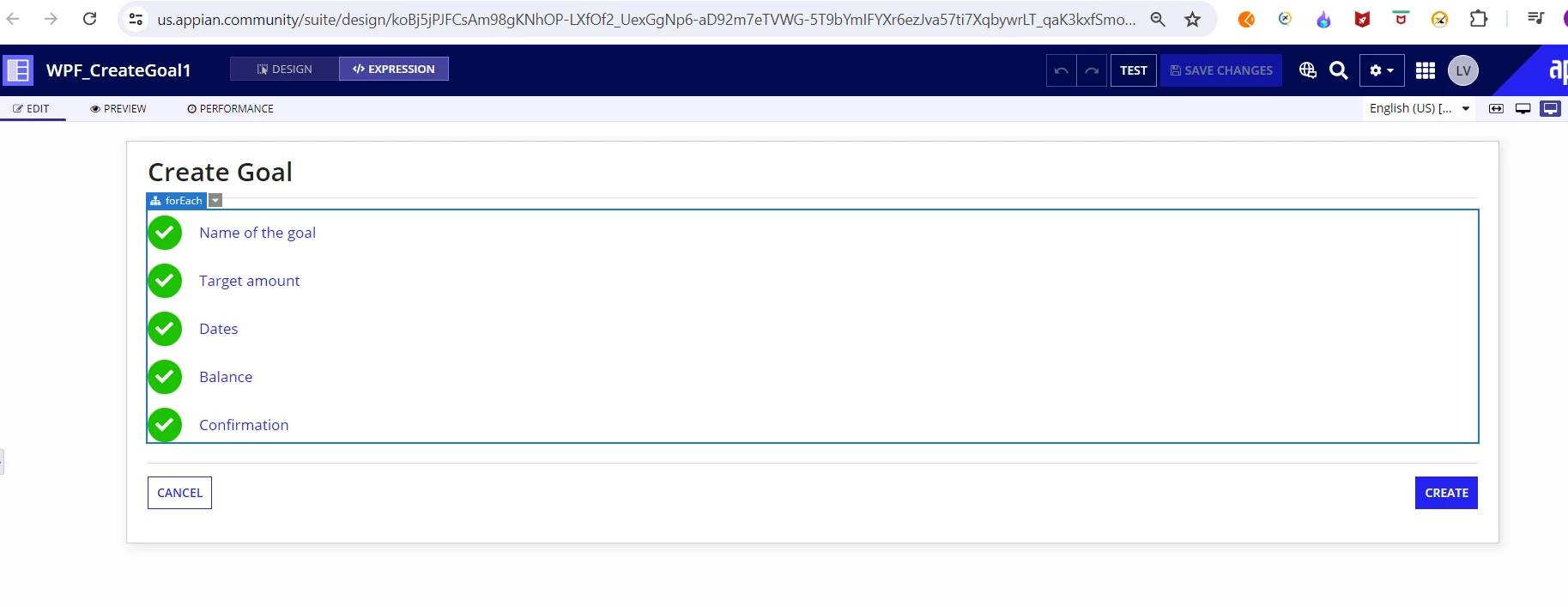

In goals interface above progress bar, there is New Goal button, upon clicking that a form layout will get displayed,
A form layout gets populated , It will get filled based on the validations
once this is done, I tried to click the create button , so that new goal will get displayed in the goals interface.
As of now, I am unable to proceed further, atleast it should throw some exception, i will try to trace out the issue, I am unable to proceed further.

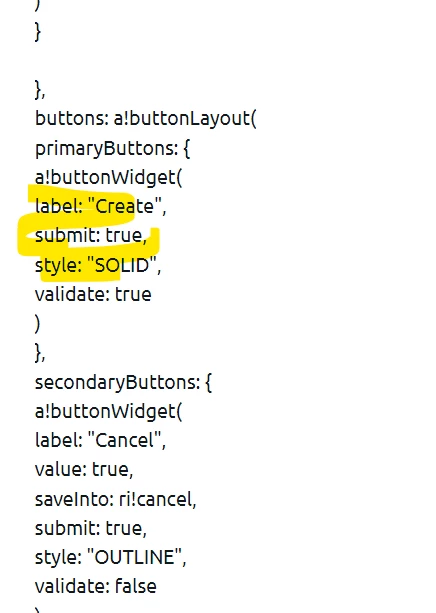

I have provided the code for create button .
may i know what could be the issue, is there a chance in Appian that error will not get displayed and it will not proceed as well.

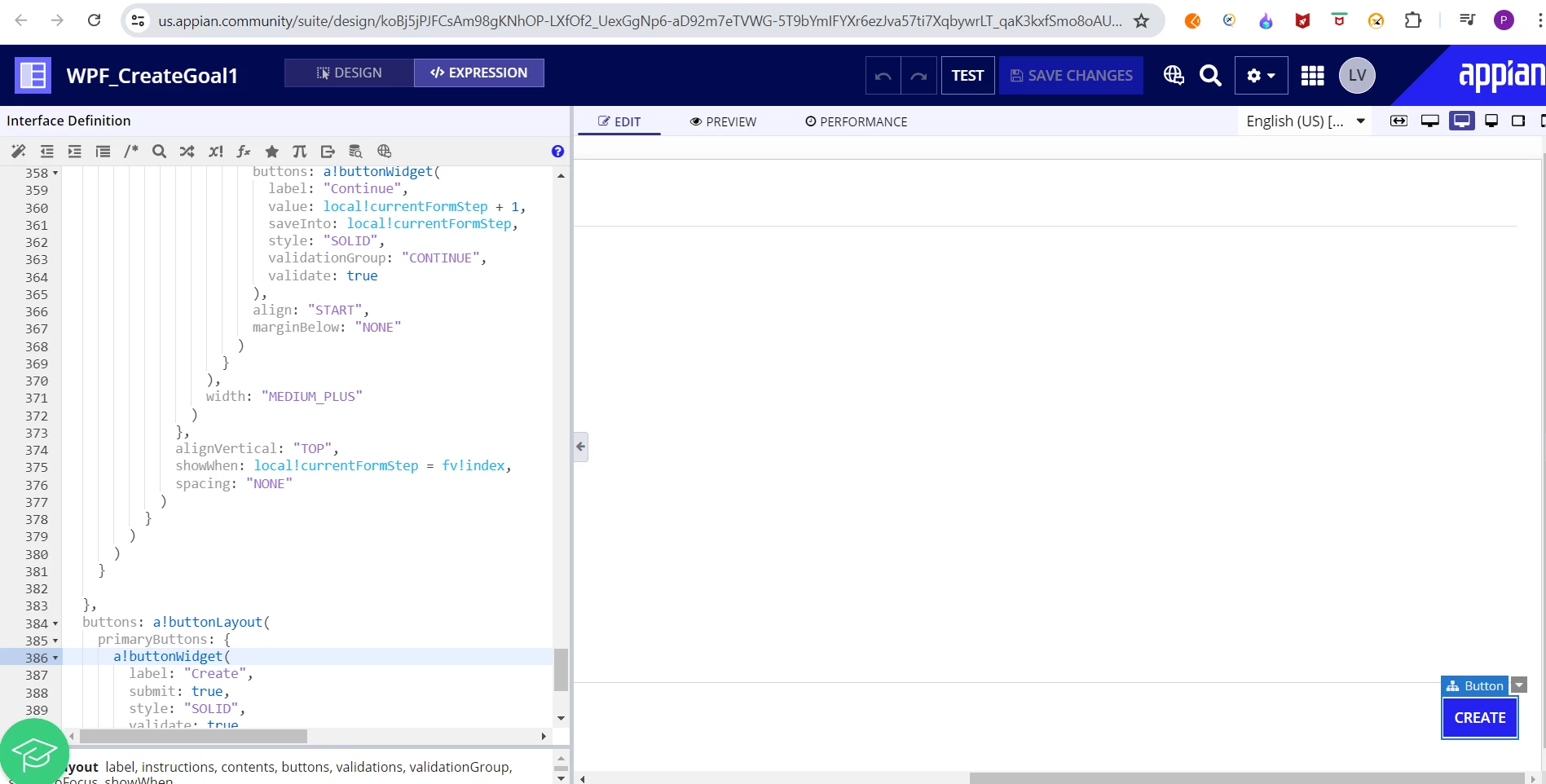

Here is the code snippet part of the button:
a!buttonArrayLayout(
buttons: a!buttonWidget(
label: "Continue",
value: local!currentFormStep + 1,
saveInto: local!currentFormStep,
style: "SOLID",
validationGroup: "CONTINUE",
validate: true
),
align: "START",
marginBelow: "NONE"
)
}
),
width: "MEDIUM_PLUS"
)
},
alignVertical: "TOP",
showWhen: local!currentFormStep = fv!index,
spacing: "NONE"
)
}
)
)
}
},
buttons: a!buttonLayout(
primaryButtons: {
a!buttonWidget(
label: "Create",
submit: true,
style: "SOLID",
validate: true
)
},
secondaryButtons: {
a!buttonWidget(
label: "Cancel",
value: true,
saveInto: ri!cancel,
submit: true,
style: "OUTLINE",
validate: false
)
}

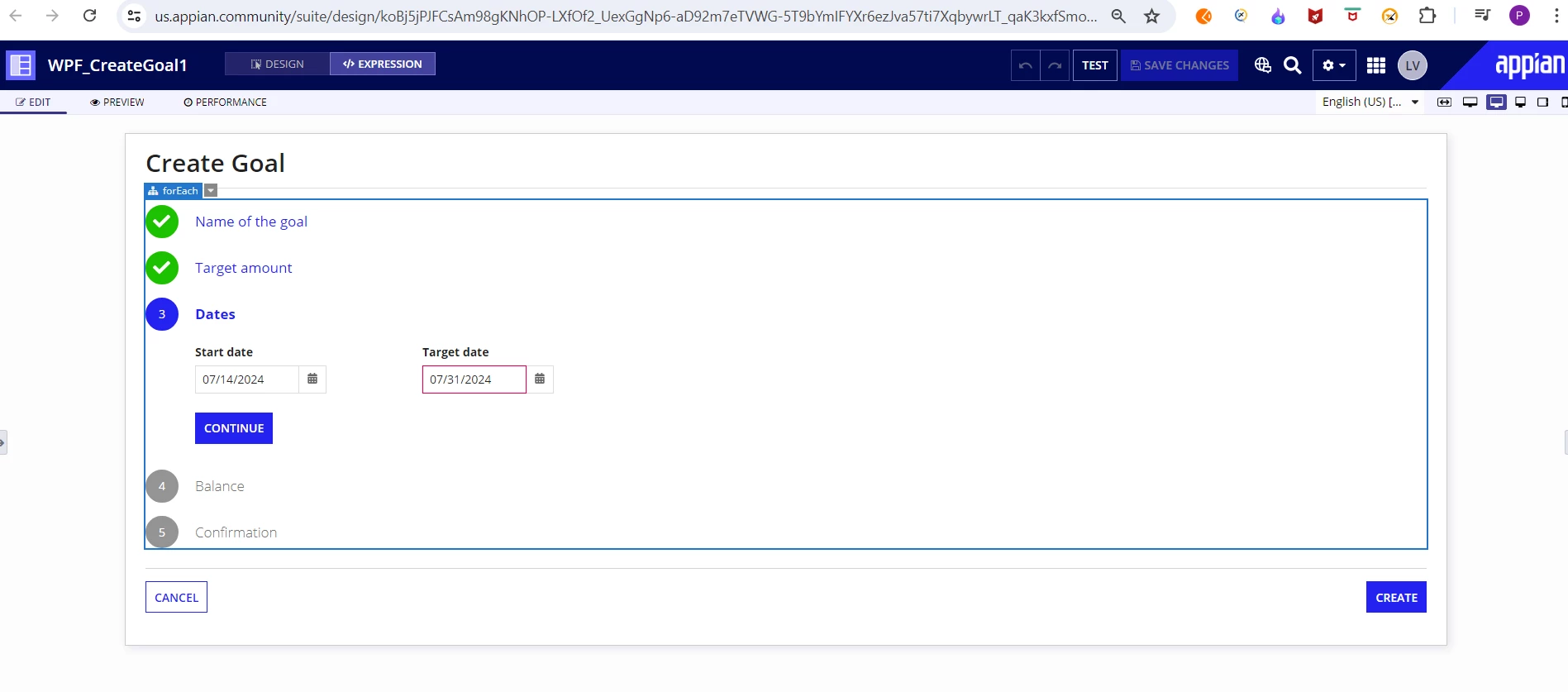

Also, when I tried to fill the form, I see target date , when I used future date, it got highlighted with red color, but upon multiple clicks on Continue button, I am able to proceed, other wise the page would be standalne
Here is the code snippet of Dates:
{
a!sectionLayout(
contents: a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!dateField(
label: "Start date",
value: ri!record['recordType!{ed0a7ee2-7024-407d-b392-737749188441}WPF Goal.fields.{f2b347b9-1dee-49c4-abce-d81a8d97347a}startDate'],
saveInto: ri!record['recordType!{ed0a7ee2-7024-407d-b392-737749188441}WPF Goal.fields.{f2b347b9-1dee-49c4-abce-d81a8d97347a}startDate'],
required: true,
validationGroup: "CONTINUE"
)
),
a!sideBySideItem(
item: a!dateField(
label: "Target date",
value: ri!record['recordType!{ed0a7ee2-7024-407d-b392-737749188441}WPF Goal.fields.{9ccb29df-4e60-4d7f-9082-fe9e9429d1ff}targetDate'],
saveInto: ri!record['recordType!{ed0a7ee2-7024-407d-b392-737749188441}WPF Goal.fields.{9ccb29df-4e60-4d7f-9082-fe9e9429d1ff}targetDate'],
required: true,
validationGroup: "CONTINUE",
validations: if(
a!defaultValue(ri!record['recordType!{ed0a7ee2-7024-407d-b392-737749188441}WPF Goal.fields.{9ccb29df-4e60-4d7f-9082-fe9e9429d1ff}targetDate'], today()+1)<=today(),
"Target date must be future date",
" "
)
)
)
}
),
validationGroup: "CONTINUE",
validations: if(
and(
a!isNotNullOrEmpty(ri!record['recordType!{ed0a7ee2-7024-407d-b392-737749188441}WPF Goal.fields.{f2b347b9-1dee-49c4-abce-d81a8d97347a}startDate']),
a!isNotNullOrEmpty(ri!record['recordType!{ed0a7ee2-7024-407d-b392-737749188441}WPF Goal.fields.{9ccb29df-4e60-4d7f-9082-fe9e9429d1ff}targetDate'])
),
if(
ri!record['recordType!{ed0a7ee2-7024-407d-b392-737749188441}WPF Goal.fields.{f2b347b9-1dee-49c4-abce-d81a8d97347a}startDate'] >= ri!record['recordType!{ed0a7ee2-7024-407d-b392-737749188441}WPF Goal.fields.{9ccb29df-4e60-4d7f-9082-fe9e9429d1ff}targetDate'],
"Start date must be before target date",
""
),
""
)
)
},
Thanks in advance, please let me know, what I have missed.
