Question

PV in Process Model

  • July 22, 2021
  • 2 replies
  • 0 views

Hi

Is there an easy way to find  what are the places pv is used in process model?

Scenario is we have a pv in process model in which the values from db is stored. Need to find whether that pv is used anywhere else

Thanks in advance

2 replies

selvakumark
selvakumark
July 22, 2021

Hi [mention:d57ad24e60ff489cbe140f9e09b719c2:e9ed411860ed4f2ba0265705b8793d05]

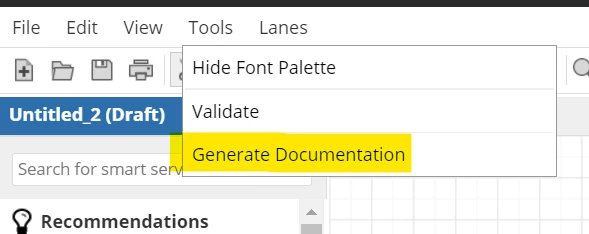

You can easily find it under process model documentation. Click on Tools -> Generate Documentation.

For more info - docs.appian.com/.../process-model-object.html

    mikes0011
    mikes0011
    Brainy
    July 22, 2021

    I agree with this suggestion.  I would point out the biggest caveat is, if you have any Interface inputs pointing directly at a PV (as opposed to an ACP), they won't be shown in the Generated Documentation.  I'm not really clear why, but probably just an oversight (since the interface configuration screen is likely still newer than the last time the Generate Documentation functionality was substantially updated).

    Mike Schmitt, First Annual Live-Build Challenge Loser™️
