JSON to Excel converter in process model is throwing an error

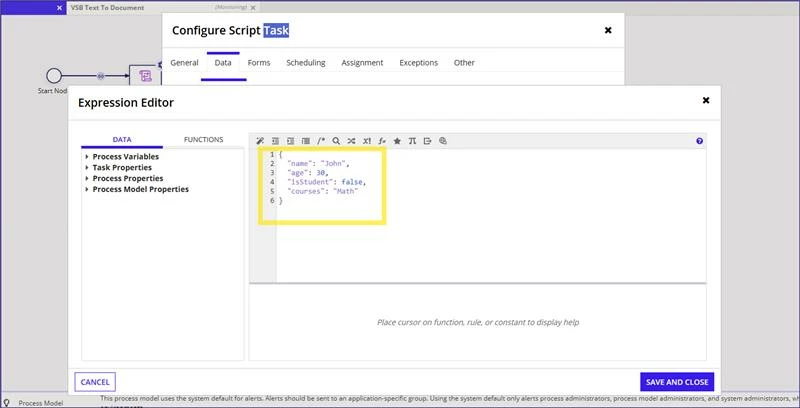

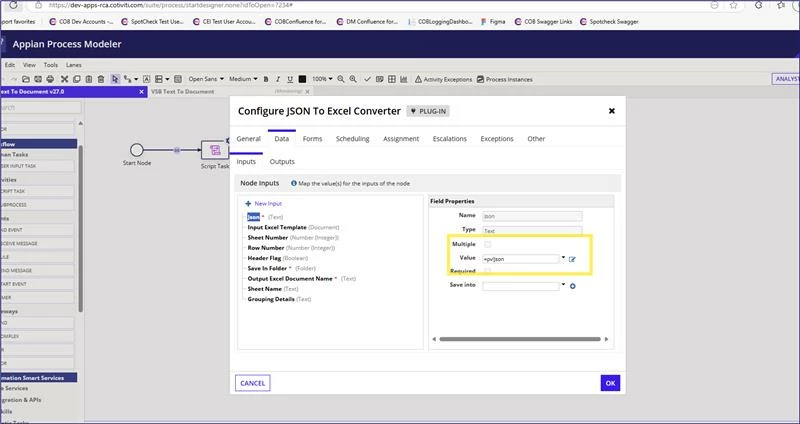

I want to generate an excel sheet using JSON to Excel converter plug in. Even though I am passing the json correctly, I am getting an error message:

    stefanhelzle0001
    stefanhelzle0001Answer
    Brainy
    April 21, 2025

    Even if it might be confusing, the text box in which you enter your JSON is not meant to understand JSON. This is a SAIL language editor.

    If you want to directly write JSON, then you need to wrap it in quotation marks. If you want to write it in Appian SAIL syntax, then you can use the toJson() function to turn it into JSON.

    I suggest the second approach.

    View in thread

    15 replies

    stefanhelzle0001
    stefanhelzle0001Answer
    Brainy
    April 21, 2025

    Even if it might be confusing, the text box in which you enter your JSON is not meant to understand JSON. This is a SAIL language editor.

    If you want to directly write JSON, then you need to wrap it in quotation marks. If you want to write it in Appian SAIL syntax, then you can use the toJson() function to turn it into JSON.

    I suggest the second approach.

      mikes0011
      mikes0011
      Brainy
      April 21, 2025

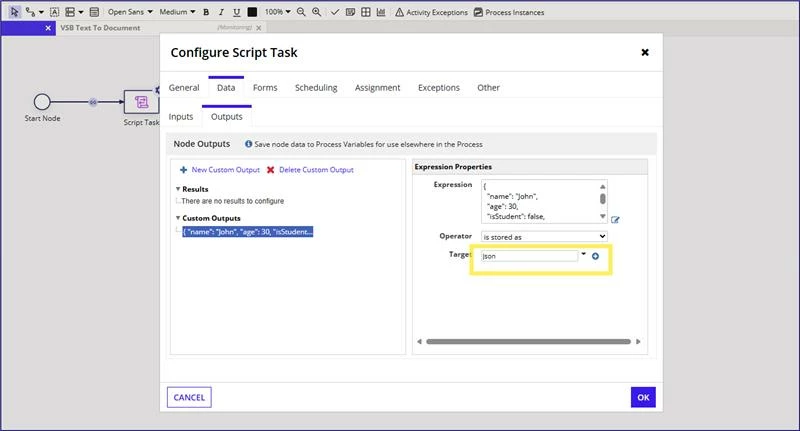

      yeah, sorry i didn't notice at first, he's definitely trying to save a plain dictionary (not json text) straight into a PV (presumably text type).  Not sure why they'd expect that to work... JSON is a specific format, which he's completely skipping.

      The Expression Guru
      mikes0011
      mikes0011
      Brainy
      April 21, 2025

      What's the full error text say?  Your screenshot is too cramped to really tell, and it may also be truncated.  Also, can you clarify what plug-in this is?  I haven't seen this smart service before, and I'm actually rather interested in it.

      The Expression Guru
      vijayp6380Author
      Known Participant
      April 21, 2025

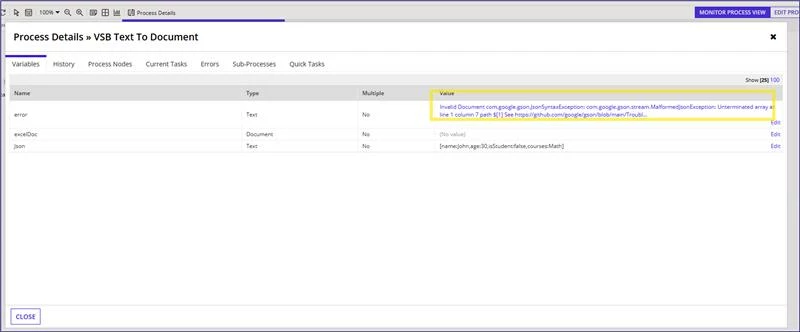

      Error Message: Invalid Document com.google.gson.JsonSyntaxException: com.google.gson.stream.MalformedJsonException: Unterminated array at line 1 column 7 path $[1]
      See github.com/.../Troubleshooting.md

      mikes0011
      mikes0011
      Brainy
      April 21, 2025

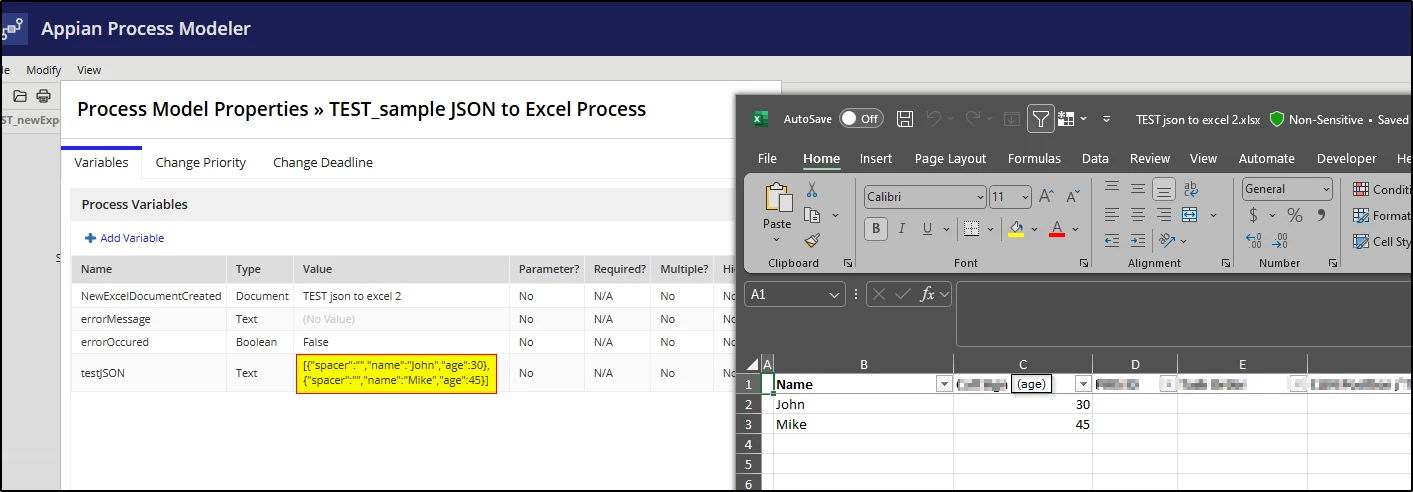

      FYI as I mentioned in my earlier reply, this appears to work when the JSON you pass in is a valid array.  Here's mine after passing it into an arbitrary pre-configured excel base template I already had sitting around in our Dev environment (with a "name" column and some other columns with irrelevant names).  Note my JSON is an array of items, not a single dictionary.  Also even though the smart service doesn't let you choose the starting column (just row), you can accomplish this by formatting the JSON such that the first column is left blank (just mentioning this since my templates mostly have a blank "spacer" column first).

      The Expression Guru
