Question

Process model is not initiating on click of button from a!gridLayout()

Forum|Forum|2 years ago
July 9, 2024
21 replies
1 view

I am trying to execute a process model on click of button which one of the component in editable grid. Unfortunately. the PM is not getting initiated.

Can anyone help what could be the reason.

a!buttonLayout(
primaryButtons: {
a!buttonWidget(
label: "Save",
saveInto: a!startProcess(
processModel:cons!TRA_WriteRecordsPM,
processParameters: {recordTRA:fv!item},
onSuccess: a!save(local!success,fv!processInfo),
/*onError: a!save(local!data)*/

),
submit: true()
)
}
),

process model trigger

stefanhelzle0001

I do not see anything wrong with your code. Did you try to check the tomcat-stdout log file?

N

niharikan2636Author

Attaching tomcat logs for your reference.

venkatrea696188

submit: true()

What's happening after clicking the button?? . when we set Submit = true, it try's to move away from current interface but it's an editable grid and the action is for the current row.Try removing it.

--edit-- Sorry , it's working fine with submit set to true. Only thing to check is, are you passing all the required process variables?

N

niharikan2636Author

I have tried removing submit:true as well. Its not getting initiated.

venkatrea696188

Do the reverse engineering check the following

1. Do you have at least initiator access to the process Model.

2. Check the Constant Defined Properly and the process Model Configured Properly(Published version).

3. Check whether you are passing each Required Parameter (With Exact names)

4.Record Mappings with Source are proper

davidj137213

are you sure the model is not initiated? did you check process monitor and tomcat-stdout.log?

N

niharikan2636Author

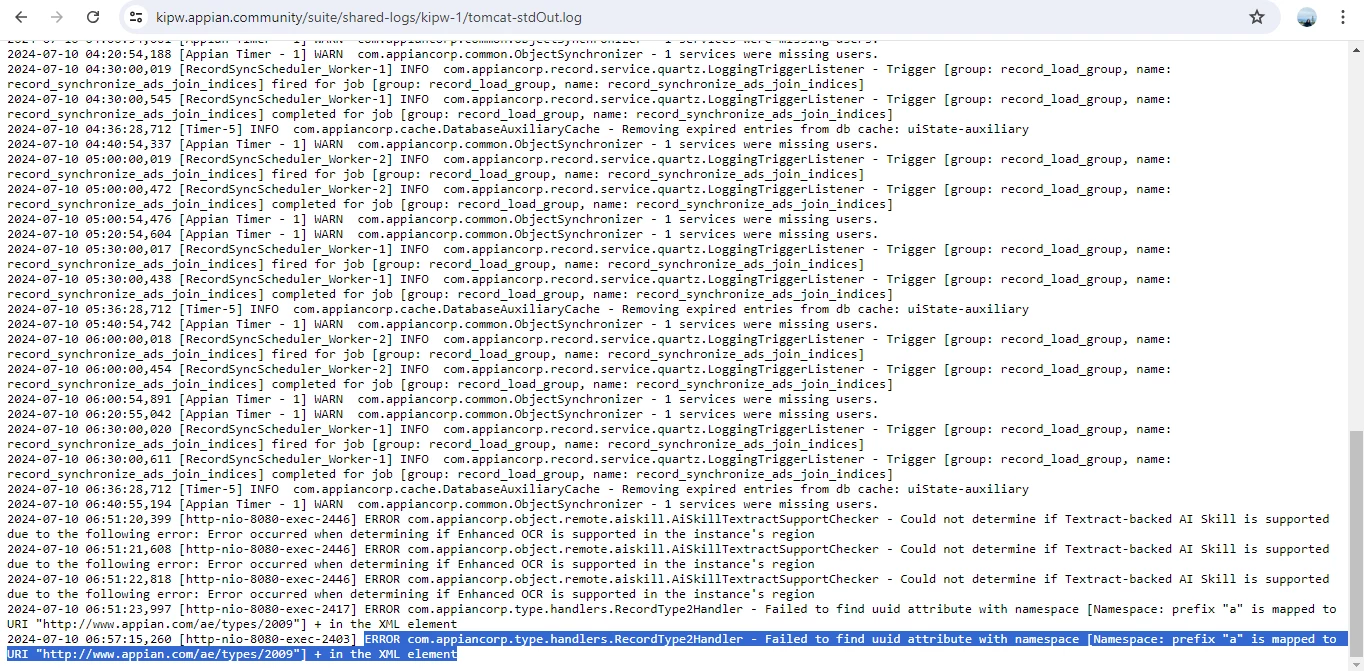

Yes, i am sure, model is not getting initiated and when i checked the tomcat log file, it showed me this error. But i am confused what this error means. Can someone please guide

D

daiw

Hi, check on the process parameters.

Either create a really simple process model with no parameters, or add a simple text variable to the existing process model and try and kick that off. It might be the record mapping.

R

rights0001

Maybe there is an issue with the constant configuration.

N

niharikan2636Author

No that is not the case

N

niharikan2636Author

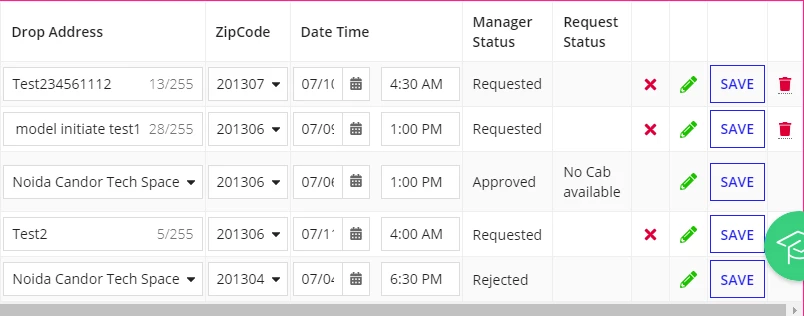

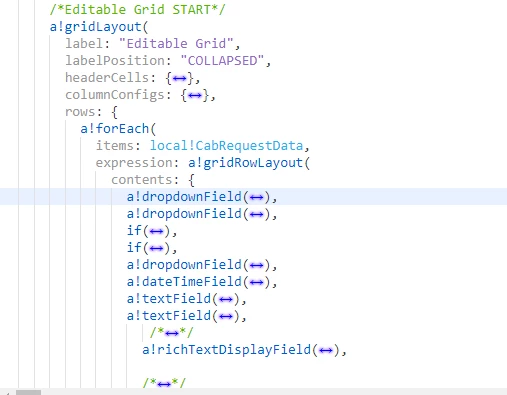

Basically, i have used a foreach loop in editable grid. And for each row this button is populating , so when i am clicking on button a particular row to save updated entry in DB (via process model). Its not working i.e. PM is not getting initiated.
