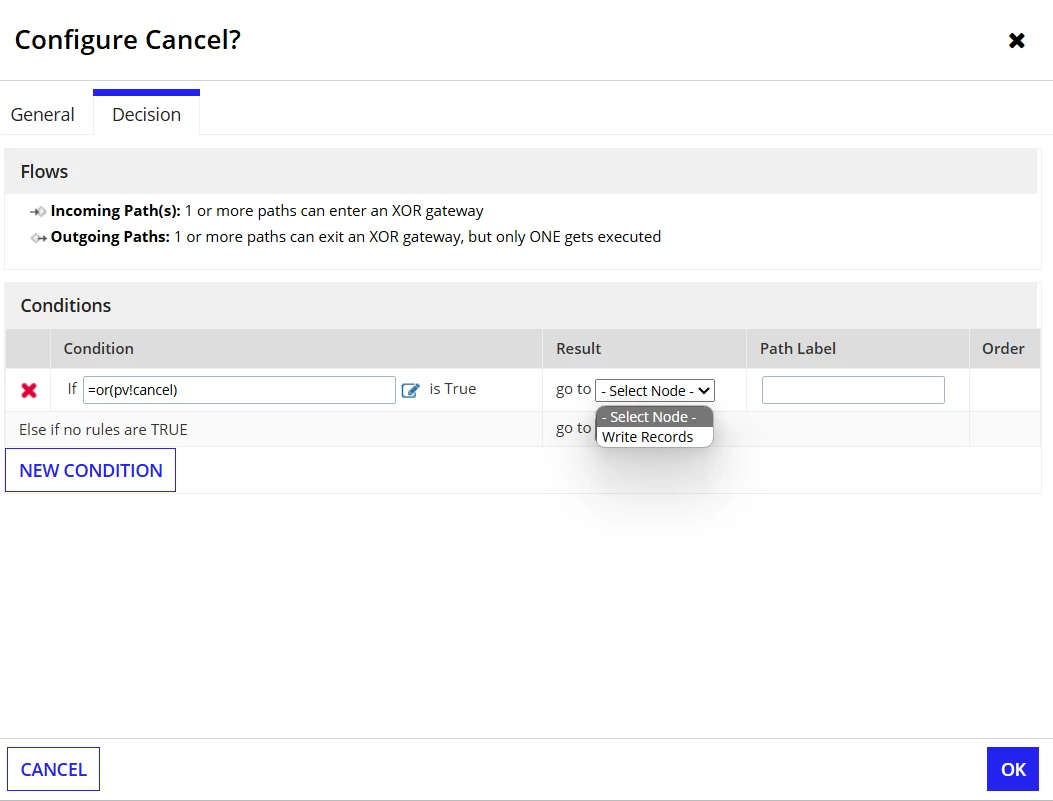

When configuring XOR node, I applied a " or(pv!cancel) " condition in the decision tab but it is only showing one node (write records), End Node option is not showing.

8 replies
17 views

Inspiring

Yeah I'd drag the nodes around. See if the line from Cancel? is really FROM cancel, or if you nearly attached it to the line between User Input Task and End but not quite. I do that all the time

stefanhelzle0001

Brainy

Could it be that the connection between the XOR and the end node is actually between the UIT and the end node? Try to move the XOR up or down.

konduruc733182

Inspiring

Hello [mention:773ca417d9d84c5da1bc0016515d4d08:e9ed411860ed4f2ba0265705b8793d05]

As Stefan mentioned have you thoroughly checked the connectivity between the nodes? try removing the XOR and adding it back again if so.

davel001150Answer

Inspiring

Yeah I'd drag the nodes around. See if the line from Cancel? is really FROM cancel, or if you nearly attached it to the line between User Input Task and End but not quite. I do that all the time

asmif1460Author

Participating Frequently

Thank you, my error is resolved

stefanhelzle0001

Brainy

What did you change to solve this? In case others are looking for a solution to a similar issue.

davidj137213

Brainy

Try adding an script task between the XOR and the end node... just for testing

karumurua531442

Participating Frequently

hi [mention:773ca417d9d84c5da1bc0016515d4d08:e9ed411860ed4f2ba0265705b8793d05] could check the connection between two nodes as[mention:a11f77a729fb4db2af76b09948583328:e9ed411860ed4f2ba0265705b8793d05] mentioned, or remove the node once and place it again. you have some script tasks between checking and running the model once for the test process
