Question

Data clustering - Classification Problem

Forum|Forum|4 years ago
July 12, 2022
8 replies
0 views

I have a CDT with some kinds of information

Alle data in these cdt list have a start date and an end data. I have to find period overlaps. But I'm just resolved that problem. My req now is another, after I find all period that overlaps Ex: index of ordered by date array 2,3,4,5,6 of an array of 7 elements.

Now seeing data I know that invervals that overlaps are 2,with 3 and 4 and 5 with 6.

My problem is to find that kind of subgroups

2-3-4 and 5-6.

C

carminem0002Author

[ start_date: 01/01/2020 - end_date: 31/01/2020 ]

[ start_date: 01/03/2020 - end_date: 31/03/2020 ]

[ start_date: 29/03/2020 - end_date: 02/04/2020 ]

[ start_date: 01/04/2020 - end_date: 30/04/2020 ]

[ start_date: 01/05/2020 - end_date: 31/05/2020 ]

[ start_date: 18/05/2020 - end_date: 31/05/2020 ]

[ start_date: 01/06/2020 - end_date: 30/06/2020 ]

now i'm find that index of array that have overlaps are 2,3,4,5,6

but i'm not capable to find that 2 overlaps with 3 and 4 and that 5 overlaps with 6

csteward

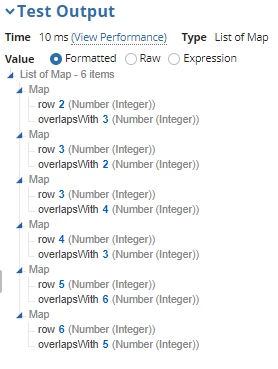

This may get you closer, this expression returns a list of maps containing overlaps. Current version will list both ways, for instance that 2 overlaps with 3 and 3 overlaps with 2:

a!localVariables(
  local!data: {
    a!map(start_date: todate("01/01/2020"), end_date: todate("01/31/2020")),
    a!map(start_date: todate("03/01/2020"), end_date: todate("03/31/2020")),
    a!map(start_date: todate("03/29/2020"), end_date: todate("04/02/2020")),
    a!map(start_date: todate("04/01/2020"), end_date: todate("04/30/2020")),
    a!map(start_date: todate("05/01/2020"), end_date: todate("05/31/2020")),
    a!map(start_date: todate("05/18/2020"), end_date: todate("05/31/2020")),
    a!map(start_date: todate("06/01/2020"), end_date: todate("06/33/2020"))
  },

  a!forEach(
    items: local!data,
    expression: {
      a!localVariables(
        local!index: fv!index,
        local!row: local!data[local!index],
        a!flatten(
          fn!reject(
            fn!isnull,
            a!forEach(
              items: local!data,
              expression: {
                if(
                  fv!index=local!index,
                  null, /* do not review row against itself */
                  if(
                    or(
                      and( /* start date is within start/end for another row */
                        local!row.start_date>=fv!item.start_date,
                        local!row.start_date<=fv!item.end_date
                      ),
                      and( /* end date is within start/end for another row */
                        local!row.end_date>=fv!item.start_date,
                        local!row.end_date<=fv!item.end_date
                      ),
                      and( /* row starts before and ends after evaluating row */
                        local!row.start_datefv!item.end_date
                      )
                    ),
                    a!map( /* return an overlap */
                      row: local!index,
                      overlapsWith: fv!index
                    ),
                    null /* no overlap */
                  )
                )
              }
            )
          )
        )
      )
    }
  )
)

We could refine further if you can define what you would like to see exactly for an output? E.g. how are the "sub groups" to be found, any chain of overlaps essentially?

C

carminem0002Author

thankyou soo much for your answer, meanwhile i'm arrived to find all the "who overlaps with who" the problem is that with thats information i have to find all the data subgroups. so for examples if 3 overlaps with 2 and with 4 index in the map, i have to find a structure that say me the who overlaps are 2,3,4 together for a group and 5,6 together for another group

stefanhelzle0001

Brainy

Took me a while, but here you go. The trick is to use the reduce function which allows you to keep a "shared memory" and modify this during the loop iterations. Each iteration checks one item for an overlaps with the other items. If there is a overlap, I calculate a unique identifier and check whether this already exists in the list of overlaps. If no, I add it to the list, else I just increase the size.

There is a related use case to calculate the IBAN checksum you can find in the forum as well.

It requires two expressions:

a!localVariables(
  local!data: {
    a!map(start_date: todate("01/01/2020"), end_date: todate("01/31/2020")),
    a!map(start_date: todate("03/01/2020"), end_date: todate("03/31/2020")),
    a!map(start_date: todate("03/29/2020"), end_date: todate("04/02/2020")),
    a!map(start_date: todate("04/01/2020"), end_date: todate("04/30/2020")),
    a!map(start_date: todate("05/01/2020"), end_date: todate("05/31/2020")),
    a!map(start_date: todate("05/18/2020"), end_date: todate("05/31/2020")),
    a!map(start_date: todate("06/01/2020"), end_date: todate("06/33/2020"))
  },
  reduce(
    rule!SSH_GroupOverlapsHelper(
      shared:_,
      item:_,
      data:_
    ),
    {},
    local!data,
    local!data,
  )
)

Rule inputs: shared(any), item(any), data(any):

a!localVariables(
  local!overlaps: a!forEach(
    items: ri!data,
    expression: and(
      ri!item.start_date <= fv!item.end_date,
      ri!item.end_date >= fv!item.start_date
    )
  ),
  local!groupId: joinarray(where(local!overlaps), "-"),
  if(
    sum(local!overlaps) > 1,
    /* We have > 1 overlap */
    if(
      contains(touniformstring(index(ri!shared, "id", {})), local!groupId),
      /* Existing group */
      a!localVariables(
        local!index: lookup(ri!shared.id, local!groupId, 0),
        a!update(
          ri!shared,
          local!index,
          a!update(
            ri!shared[local!index],
            "size",
            ri!shared[local!index].size + 1,
          )
        )
      ),
      /* New group */
      append(
        ri!shared,
        a!map(
          id: local!groupId,
          ovs: ri!data[where(local!overlaps)],
          size: 1
        )
      )
    ),
    /* An item always overlaps with itself, so ignore that case */
    ri!shared
  )
)
