Question

errno: 150 "Foreign key constraint is incorrectly formed") (APNX-1-4178-000) -- Appian Data store error

Forum|Forum|5 years ago
April 22, 2021
3 replies
0 views

Hi Community,

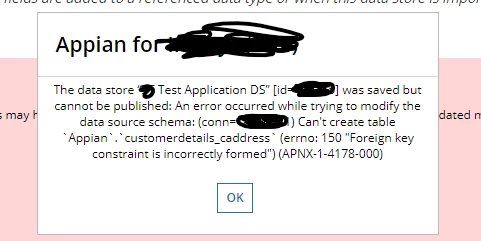

So I am creating a new CDT from scratch, I have 5 fields in it .No database table is created . Primary key is defined in CDT. One of the fields c_address I have defined as text type and checked the array checkbox. All saved , but I am not able to publish the datastore. Getting the below error. Basically I am checking how array functionality works for a text type or any other type. Kindly share some insight.

Thanks

B

baratc

Hi Shikha,

Could you please create address cdt first and then refer the same in your new CDT. Please refer the below link for sample CDT's

1)Employee-refer the employee address in your cdt.

2)Employee Address -> pls create this one first

https://docs.appian.com/suite/help/21.1/cdt_design_guidance.html#img857

Hope this helps!

Thanks

Have a Good Day!

shikhatAuthor

Hi ,

Thanks for reply . Just to confirm the emp_address acts as a foreign key for employeeeCDT ,right? Also , what is use of array check box defined for the specific fields. What purpose will that serve for that particular column value defined as array type from DB point of view too? That database field will be able to store multiple address if checked for a single employee ,something like below:

Ename Eaddress

ABC address1

ABC address2

B

baratc

Hi Shikha,

Just to confirm the emp_address acts as a foreign key for employeeeCDT ,right? - > Yes Correct

what is use of array use of array check box defined for the specific fields? -> more that one value is possible for that field

What purpose will that serve for that particular column value defined as array type from DB point of view too? ->1 to many relationships

Yes database field will be able to store multiple address

Please let me know if this helps!
