Question

Error grouping the record using HOUR_OF_DAY as interval

  • June 12, 2023
  • 1 reply
  • 0 views

Hi,

My team is trying to create a chart that warns users when an app is used the most. As soon as the user execute a process, we insert in Database some information (timestamp, typology, current user, etc). To generate the chart we use the following code:

a!lineChartField(
  data: 'recordType!{2e39f6f7-a6b0-43c0-a1f2-39a16ddf112a}PGM interaccionesMotivosYCanales',
  config: a!lineChartConfig(
    showIntervalsWithNoData: true,
    primaryGrouping: a!grouping(
      field: 'recordType!{2e39f6f7-a6b0-43c0-a1f2-39a16ddf112a}PGM interaccionesMotivosYCanales.fields.{88cbc07e-c205-4ccc-8c3f-9245ea2bfbf1}timeStamp',
      alias: "timeStamp_hour_primaryGrouping",
      interval: "HOUR_OF_DAY"
    ),
    measures: a!measure(
      function: "COUNT",
      field: 'recordType!{2e39f6f7-a6b0-43c0-a1f2-39a16ddf112a}PGM interaccionesMotivosYCanales.fields.{dbcf9179-1efb-4c26-aac4-bc7c25fbded7}id',
      alias: "id_count_measures",

    )
  )
)

The problem is when we use "HOUR_OF_DAY" as interval parameter in grouping function, Appian doesn't convert the timestamp in Database (GMT format) to user's timezone.

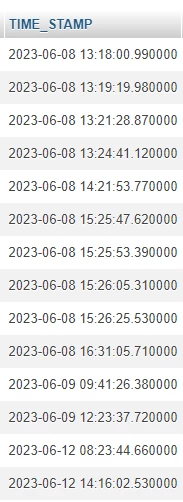

Values in Database:

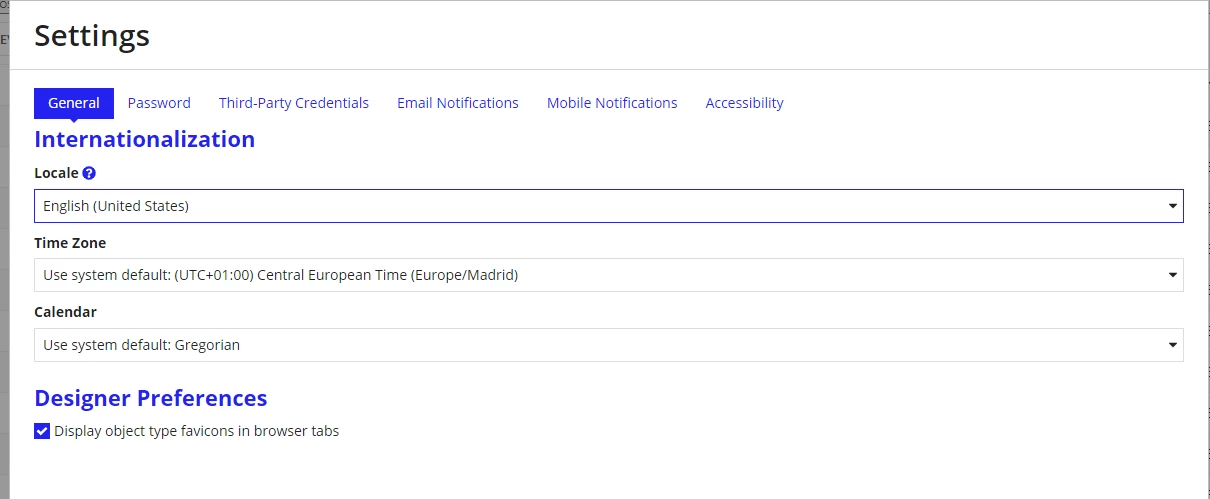

Timezone of the user:

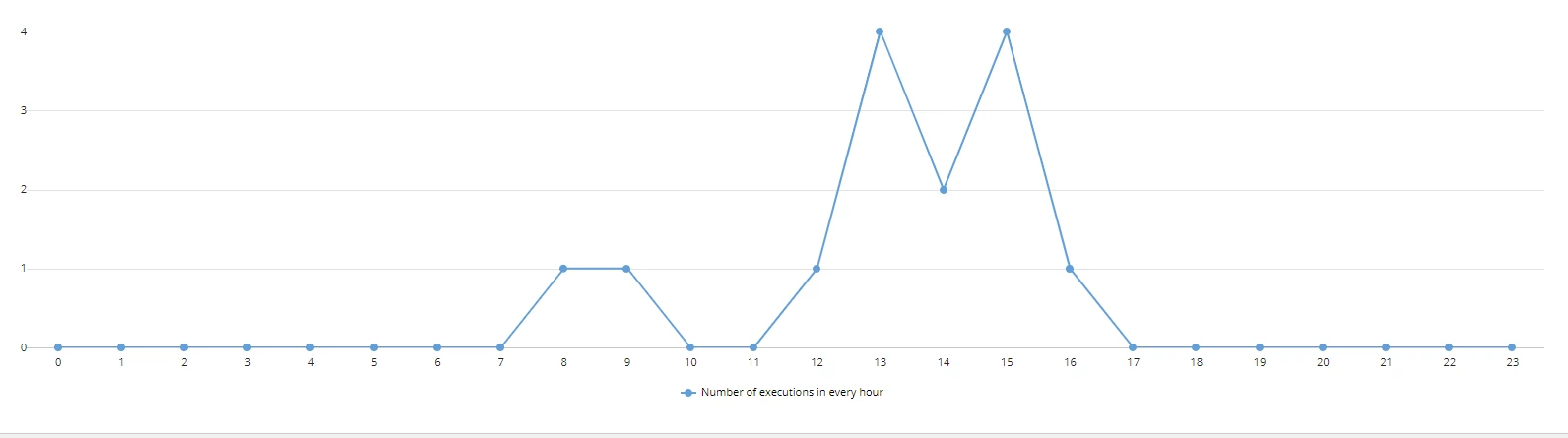

Result of the execution (X-asis hour and Y-asis number of coincidences):

Is this a bug or I just forget something? Notice that using "HOUR" instead of "HOUR_OF_DAY", it does change the timestamp to that of the user

Thanks,

Regards

    1 reply

    June 12, 2023

    After trying it myself, I can confirm that grouping is applied to values in DB instead of converted/actual values when we use "HOUR_OF_DAY" interval. I don't think that this should be the expected behaviour, I would suggest opening a support case with Appian.
