Record type vs Data store entity

8 replies
45 views

what is the difference between Record type and Data Store entity, I am having a really hard time understanding the difference between them, and when to use each one , a real-world examples would be great

somasundaram.dAnswer

Employee

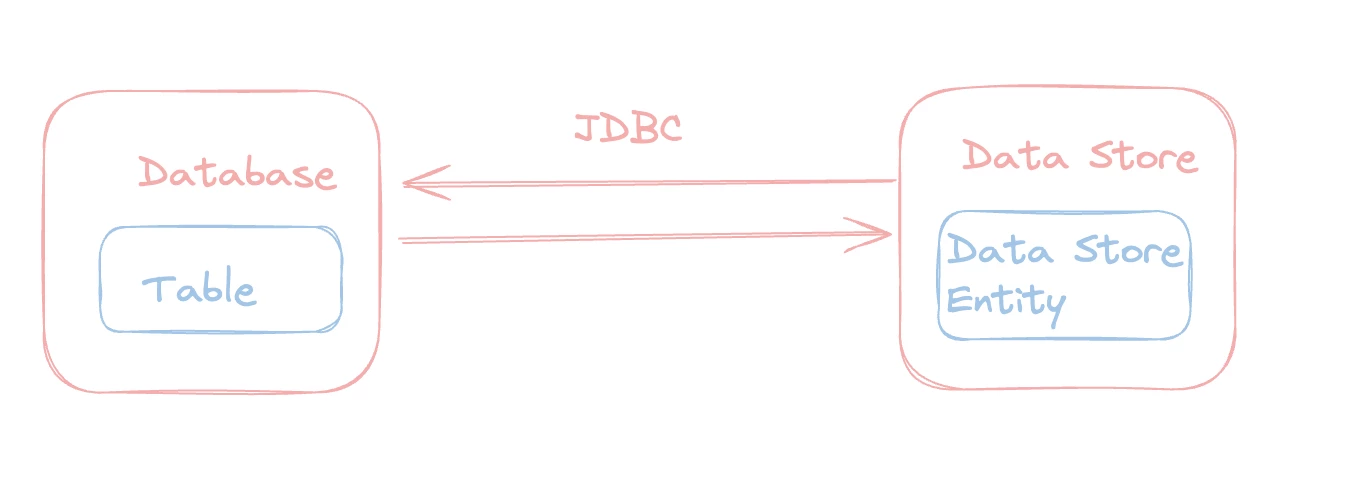

I am not sure what you mean, but

"Data Store" is similar to "Database"

"Data Store Entity" is similar to "Table in the Database"

prasantap0900

Participating Frequently

Data stores allow you to insert, update, query, and delete data in the format needed by your applications without writing structured queries (SQL).

A record type is a design object that allows you to structure and model your enterprise data so you can easily build data-centric applications.

About Record Types - Appian 24.3

Data Store Object - Appian 24.3

For your better understanding you can go through with that.

gayatria0439

Participating Frequently

Some major differences can be seen between CDT and Record.

Record	CDT
Used to connect cloud data to Appian	Used to connect data to Appian by using a bridge call data store.
Within records, we can easily modify and manage the data to present it to users	Data can only be modified after querying.
Easy to handle relationships.	We need to handle relationships on the database side.
We can fetch up to 5,000 records.	We can fetch a specified number of rows.
We can connect to databases, processes, Salesforce, and web services to create records.	We can connect only to database tables or existing data.
We can create separate new fields, meaning virtual fields (i.e., custom record fields), to manage and manipulate records.	With CDT, we cannot create custom fields.

somasundaram.d

Employee

Record Types are for presenting data to users in an Appian application, whereas Data Store Entities represent database tables used to manage the underlying data.

	Record Type	Data Store Entity
Purpose	Displaying and interacting with business data in a user friendly way	Representation of database table within Appian
Source of data	Database, Process, Salesforce, Web Service	Database only
Relationships	Records can be linked with other record, allowing easy navigation	Does not support linking, specific to one table

Both record type and data store entity supports CRUD operations. But record type provides more features, ease of configuration, ease of development than data store entity which requires considerable knowledge on database concepts

It is recommended to start moving towards record types than traditional CDT approach to utilize the full potential of data fabrics.

M

mohameds5069Author

Participating Frequently

so, we can say that Data store Entity are similar to typical database tables?

somasundaram.d

Employee

Yeah, database tables or views which are mapped in Appian specific format, so that we can work on it inside the application.
