remove a particular field from a record before persisting

I do not know of a way to "remove" a already populated field from a record.

I tried to cast it to a map, set the ID to null, and cast it back to the record, but this did not help.

There are no such functions to remove the field having null value from a record. However we can create an expression to check for null values and remap the record after removing null id fields from the record. There are considerations, of course, like what all fields need to be handled when their value is null depending on downstream system requirements. Below is a sample expression that checks for null id columns as per your description. Hope this gives a general idea.

For better understanding, I have formatted record types so that unnecessary uuids don't take space! Replace the record references with appropriate formatting.

a!localVariables(
  local!data: recordType!Case Main(
    recordType!Case Main.id: null,
    recordType!Case Main.name: "A",
    recordType!Case Main.submitter: "B",
    recordType!Case Main.relationships.DocRelation: {
      recordType!Case Document(
        recordType!Case Document.id: null,
        recordType!Case Document.size: 12
      )
    }
  ),
  local!NullIdRemovedChildData: a!forEach(
    local!data[recordType!Case Main.relationships.DocRelation],
    if(
      a!isNullOrEmpty(
        fv!item[recordType!Case Document.id]
      ),
      {
        recordType!Case Document(
          recordType!Case Document.size: local!data[recordType!Case Document.size]
        )
      },
      fv!item
    )
  ),
  local!NullIdRemovedData: if(
    a!isNullOrEmpty(
      local!data[recordType!Case Main.id]
    ),
    recordType!Case Main(
      recordType!Case Main.name: local!data[recordType!Case Main.name],
      recordType!Case Main.submitter: local!data[recordType!Case Main.submitter],
      recordType!Case Main.relationships.DocRelation: local!NullIdRemovedChildData
    ),
    local!data
  ),
  local!NullIdRemovedData
)

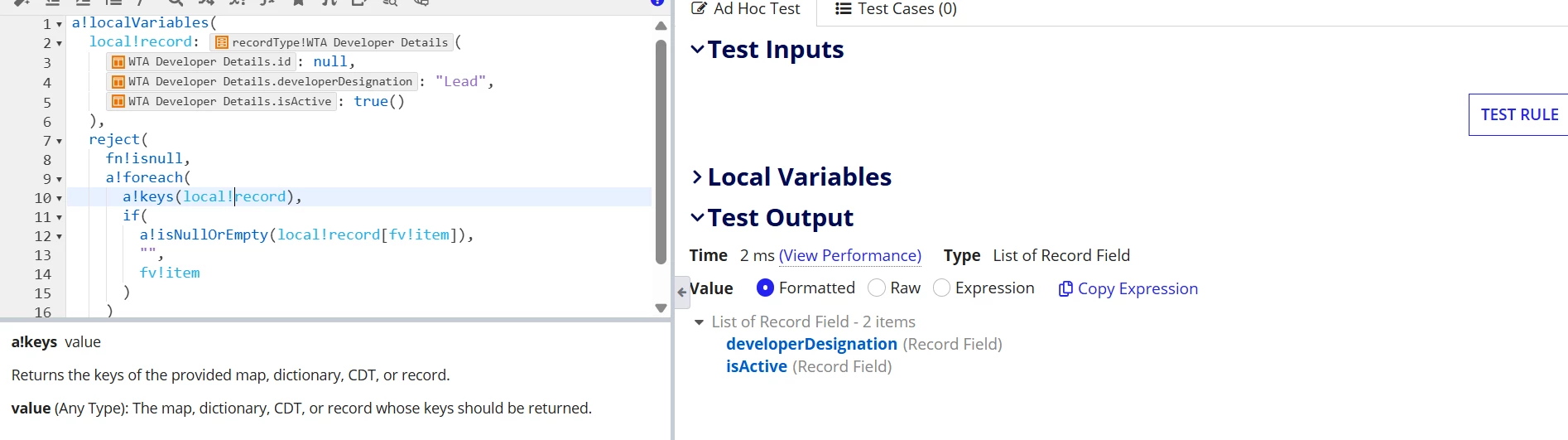

The below code might help you. It gives you the fields which are having only non null values

a!localVariables(
  local!record: 'recordType!{b1ea8073-bc4b-4054-b4bb-9a8dfc3ce0d5}WTA Developer Details'(
    'recordType!{b1ea8073-bc4b-4054-b4bb-9a8dfc3ce0d5}WTA Developer Details.fields.{190df1d5-68fc-404f-8f5a-a520aa180a6e}id': null,
    'recordType!{b1ea8073-bc4b-4054-b4bb-9a8dfc3ce0d5}WTA Developer Details.fields.{17f5b725-96de-4ba4-850a-a4890c5b0a14}developerDesignation': "Lead",
    'recordType!{b1ea8073-bc4b-4054-b4bb-9a8dfc3ce0d5}WTA Developer Details.fields.{e236bd92-5be6-4638-a80c-2ffeeb87962f}isActive': true()
  ),
  reject(
    fn!isnull,
    a!foreach(
      a!keys(local!record),
      if(
        a!isNullOrEmpty(local!record[fv!item]),
        "",
        fv!item
      )
    )
  )
)

a!localVariables(
  local!record: 'recordType!{b1270365-d71b-4248-aeca-c7f05f03e9da}BLOG_Group'(
    'recordType!{b1270365-d71b-4248-aeca-c7f05f03e9da}BLOG_Group.fields.{5c15adde-4421-4df5-8931-02f60cc6d19f}uuid': "123",
    'recordType!{b1270365-d71b-4248-aeca-c7f05f03e9da}BLOG_Group.fields.{65ab7d0e-3d9c-4c69-a926-408ebb9d17ff}groupName': "Group Name",
    'recordType!{b1270365-d71b-4248-aeca-c7f05f03e9da}BLOG_Group.fields.{60e727df-6c85-4455-ac8a-776efc580b51}description': "Group Description"
  ),
  local!type: typeof(local!record),
  local!recordFields: a!keys(local!record),
  /* create key/value array of fields while excluding the one field in question */
  local!fieldMap: a!forEach(
    items: local!recordFields,
    expression: if(
      fv!item = 'recordType!{b1270365-d71b-4248-aeca-c7f05f03e9da}BLOG_Group.fields.{65ab7d0e-3d9c-4c69-a926-408ebb9d17ff}groupName',
      {},
      a!map(
        field: tostring(fv!item),
        value: index(local!record, fv!item, null)
      )
    )
  ),
  /* create a map from key/values */
  local!map: a!update(
    a!map(),
    local!fieldMap.field,
    local!fieldMap.value
  ),
  /* cast map back to original record type */
  cast(local!type, local!map)
)
