Question

Swap two rows in readable grid

Forum|Forum|2 years ago
January 19, 2024
25 replies
0 views

Hi, I have readable grid in which i am using arrow icon, so if I click on that arrow so that row should go up and upper row should come down. I can get all data items from current row, but how I will get data from previous row, So I can apply swapping conditiin

rithanir5887

Hello [mention:fc49608a491a4f9f9f9d41ed960420df:e9ed411860ed4f2ba0265705b8793d05] ,

Below code contains logic to move rows up and down.

{
  a!localVariables(
    local!duplicate,
    local!removed,
    local!change,
    local!data: index(
      a!queryRecordType(
        recordType: 'recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company',
        filters: a!queryFilter(
          field: 'recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{19721518-b5ee-4deb-b4b2-5b0d5603d6ba}isActive',
          operator: "=",
          value: true
        ),
        pagingInfo: a!pagingInfo(startIndex: 1, batchSize: 100)
      ),
      "data",
      null
    ),
    {
      a!gridLayout(
        label: "Editable Grid",
        labelPosition: "ABOVE",
        headerCells: {
          a!gridLayoutHeaderCell(label: "Company Name"),
          a!gridLayoutHeaderCell(label: "Postcode"),
          a!gridLayoutHeaderCell(label: "City"),
          a!gridLayoutHeaderCell(label: "State "),
          a!gridLayoutHeaderCell(label: "Remove"),
          a!gridLayoutHeaderCell(label: "Move Up"),
          a!gridLayoutHeaderCell(label: "Move Down")
        },
        columnConfigs: {},
        rows: a!forEach(
          items: local!data,
          expression: a!gridRowLayout(
            contents: {
              a!textField(
                value: fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{c048e290-9f07-4fe7-a919-71b572004f35}companyName'],
                saveInto: fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{c048e290-9f07-4fe7-a919-71b572004f35}companyName']
              ),
              a!textField(
                value: fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{07050c26-84c9-4749-8aa2-54675c403e0e}companyAddressPostCode'],
                saveInto: fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{07050c26-84c9-4749-8aa2-54675c403e0e}companyAddressPostCode']
              ),
              a!textField(
                value: fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{9070d09a-ffd1-485b-9ac3-159cf5bed7ed}companyAddressCity'],
                saveInto: fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{9070d09a-ffd1-485b-9ac3-159cf5bed7ed}companyAddressCity']
              ),
              a!textField(
                value: fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{80559642-a863-41e2-ad38-129e72546134}companyAddressState'],
                saveInto: fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{80559642-a863-41e2-ad38-129e72546134}companyAddressState']
              ),
              a!richTextDisplayField(
                value: a!richTextIcon(
                  icon: if(
                    fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{19721518-b5ee-4deb-b4b2-5b0d5603d6ba}isActive'],
                    "times",
                    "check"
                  ),
                  caption: "click to add or remove company",
                  link: a!dynamicLink(
                    saveInto: if(
                      fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{19721518-b5ee-4deb-b4b2-5b0d5603d6ba}isActive'],
                      {
                        a!save(
                          fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{19721518-b5ee-4deb-b4b2-5b0d5603d6ba}isActive'],
                          false()
                        )
                      },
                      {
                        a!save(
                          fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{19721518-b5ee-4deb-b4b2-5b0d5603d6ba}isActive'],
                          true()
                        )
                      }
                    )
                  ),
                  color: if(
                    fv!item['recordType!{9e939d67-33c2-43f5-8030-51fe874a4980}PS Company.fields.{19721518-b5ee-4deb-b4b2-5b0d5603d6ba}isActive'],
                    "NEGATIVE",
                    "POSITIVE"
                  )
                )
              ),
              a!richTextDisplayField(
                value: a!richTextIcon(
                  showWhen: not(fv!isFirst),
                  icon: "arrow-up",
                  link: a!dynamicLink(
                    value: fv!item,
                    saveInto: {
                      local!removed,
                      a!save(
                        local!change,
                        index(local!data, fv!index - 1, null)
                      ),
                      a!save(
                        local!data,
                        insert(local!data, fv!item, fv!index - 1)
                      ),
                      a!save(local!data, remove(local!data, fv!index)),
                      a!save(
                        local!data,
                        a!update(local!data, fv!index, local!change)
                      )
                    }
                  )
                )
              ),
              a!richTextDisplayField(
                value: a!richTextIcon(
                  showWhen: not(fv!isLast),
                  icon: "arrow-down",
                  link: a!dynamicLink(
                    value: fv!item,
                    saveInto: {
                      local!removed,
                      a!save(local!data, remove(local!data, fv!index)),
                      a!save(
                        local!data,
                        insert(local!data, local!removed, fv!index + 1)
                      )
                    }
                  )
                )
              ),

            }
          )
        )
      ),
      a!linkField(
        links: a!dynamicLink(
          label: "Add New Company",
          saveInto: {
            a!save(
              target: local!data,
              value: { append(local!data, "") }
            )
          }
        )
      )
    }
  )
}

harshitb6843

The OP must be using a gridField() and not a gridLayout()

I have readable grid

rithanir5887

Yes. I have worked on this logic already but for editable grid. I gave it for reference purpose just to move rows up and down.

jayaprakashr0001

Hi ,

use the below code it might help.

What is the use case for this?

a!localVariables(
  local!data:{
    a!map(
      name:"Test",
      city:"ABC"
    ),
    a!map(
      name:"Test1",
      city:"QWE"
    ),
    a!map(
      name:"Test2",
      city:"DFG"
    ),a!map(
      name:"Test3",
      city:"ZXC"
    ),a!map(
      name:"Test4",
      city:"YUI"
    )
  },
  local!temp,
  local!index,
  a!gridField(
    label: "Employee Data",
    data: local!data,
    columns: {
      a!gridColumn(
        label: "Name",
        value: fv!row.name
      ),
      a!gridColumn(
        label: "Name",
        value: fv!row.city
      ),
      a!gridColumn(
        label: "Name",
        value: a!richTextDisplayField(
          value: {
            a!richTextIcon(
              icon:"arrow-up",
              link: a!dynamicLink(
                saveInto: {
                  a!save(local!data, remove(local!data, fv!identifier)),
                  a!save(
                    local!data,
                    insert(local!data, fv!row, fv!identifier - 1)
                  )
                }
              )
            )
          }
        )
      ),
      a!gridColumn(
        label: "Name",
        value: a!richTextDisplayField(
          value: {
            a!richTextIcon(
              icon:"arrow-down",
              link: a!dynamicLink(
                saveInto: {
                  a!save(local!data, remove(local!data, fv!identifier)),
                  a!save(
                    local!data,
                    insert(local!data, fv!row, fv!identifier + 1)
                  )
                }
              )
            )
          }
        )
      )
    }
  )
)

harshitb6843

You can us these code blocks in your

Down Arrow

a!save(
  ri!data,
  a!update(
    ri!data,
    {
      wherecontains(fv!row, ri!data),
      wherecontains(fv!row, ri!data) + 1
    },
    {
      ri!data[wherecontains(fv!row, ri!data) + 1],
      fv!row
    }
  )
)

Up Arrow

a!save(
  ri!data,
  a!update(
    ri!data,
    {
      wherecontains(fv!row, ri!data),
      wherecontains(fv!row, ri!data) - 1
    },
    {
      ri!data[wherecontains(fv!row, ri!data) - 1],
      fv!row
    }
  )
)

amaans4178

I believe instead of using this

wherecontains(fv!row, ri!data)

we should go with this

fv!identfier

for finding the index of current item

harshitb6843

Have been using it for ages. Did not find any issue :)

stefanhelzle0001

Find below my generic expression to swap two items in a list.

if(
  and(
    not(rule!PCO_IsVoid(ri!list)),
    ri!index1 > 0,
    ri!index1 <= count(ri!list),
    ri!index2 > 0,
    ri!index2 <= count(ri!list),
    ri!index1 <> ri!index2
  ),
  updatearray(
    ri!list,
    {ri!index1, ri!index2},
    {ri!list[ri!index2], ri!list[ri!index1]}
  ),
  ri!list
)

harshitb6843

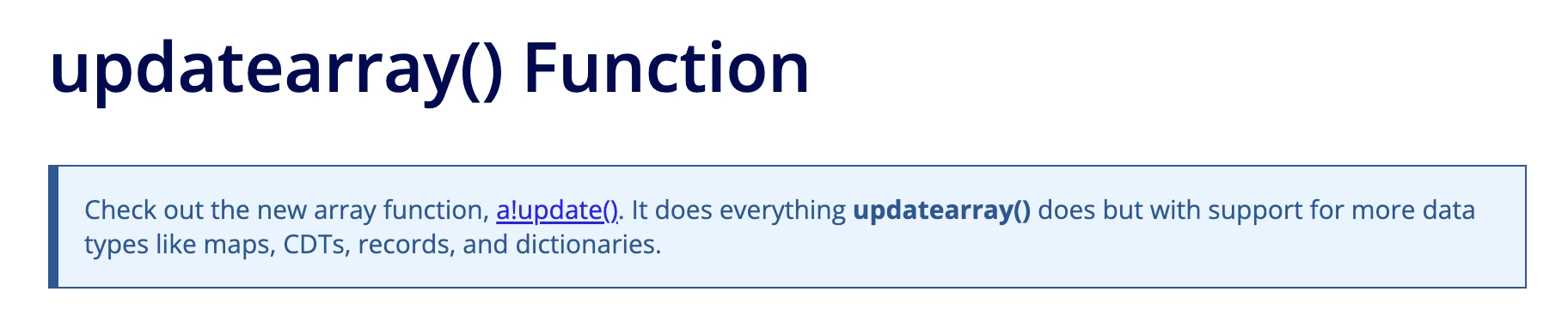

As Appian suggests, now you should replace it with a!update()

stefanhelzle0001

Thanks. Done :-)

K

kratym0199

HI [mention:fc49608a491a4f9f9f9d41ed960420df:e9ed411860ed4f2ba0265705b8793d05]

Use the below code in saveinto parameter of your dynamic link for moving up

 a!save(
                              local!data,
                              insert(local!data, fv!item, fv!index - 1)
                            ),
                            a!save(
                              local!data,
                              remove(local!data, fv!index + 1)
                            )

Use the below code in saveinto parameter of your dynamic link for moving down

a!save(
                              local!data,
                              insert(local!data, fv!item, fv!index + 2)
                            ),
                            a!save(
                              local!data,
                              remove(local!data, fv!index)
                            )

S

shubhamc0905Author

I solved the problem by own. This is the logic which I was required.

a!gridColumn(
label: "",
value: a!richTextDisplayField(
value: a!richTextIcon(
icon: "arrow-down",
caption: "Move down",
link: a!dynamicLink(
saveInto: {
a!save(fv!currentPage.data[fv!identifier],fv!currentPage.data[fv!identifier+1]),
a!save(fv!currentPage.data[fv!identifier+1],fv!row),
},

),
showWhen: fv!currentPage.startIndex
)
)
)

amaans4178
