RPA not able to identify dropdown component

  • March 23, 2023
  • 10 replies
  • 0 views

When I am trying to fill a dropdown component in an Appian form using Appian RPA I am getting the following error in execution log of the RPA

The element (By.xpath: /html/body/div[1]/div[1]/main/div/div/div[1]/div/div/div/div/div/div[1]/div/div/div/div/div[2]/div[2]/div/div/div[2]/div[1]/div[2]/div/div[1]/div/div[2]/div/div/span) could not be interacted with because the component is currently disabled or hidden.

Any help regarding this would be highly appreciated.

10 replies

S
sanchitg0002
March 23, 2023

Check the values for disabled and showWhen in dropdown component of your form.

D
david.catalan
March 23, 2023

To interact with the component inside the dropdown, possibly you will need to expand the dropdown to make the component visible.

Normally, if the dropdown is collapsed, the values are not visible for the RPA process.

Additionally, try to check the "Scroll to element before interaction" option described on the documentation docs.appian.com/.../browser-module.html

T
tarunv0003Author
March 24, 2023

Hi David,


We are expanding the dropdown and bot is clicking on dropdown but it not selecting the value.

Thanks for reply

D
david.catalan
March 24, 2023

Hi:

A couple of additional suggestions.

Did you try to interact with the dropdown using "Select dropdown choice by visible text" interaction?. This interaction performs the action directly against the whole dropdown web element ( https://docs.appian.com/suite/help/23.1/rpa-8.9/modules/browser-module.html#interact-with-element )

On the other side, I am not clear if you used the Appian Task Recorder to record the interaction. If not, could you try it? The Appian Task Recorder creates directly the"Select dropdown choice by visible text"  interaction. Additionally, I think that the selector suggested by the Appian Task Recorder is more accurate that the xpath selector you included in the case.

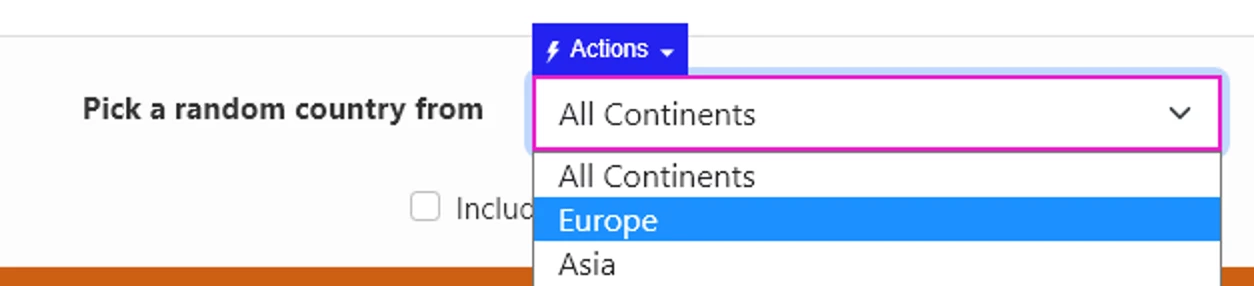

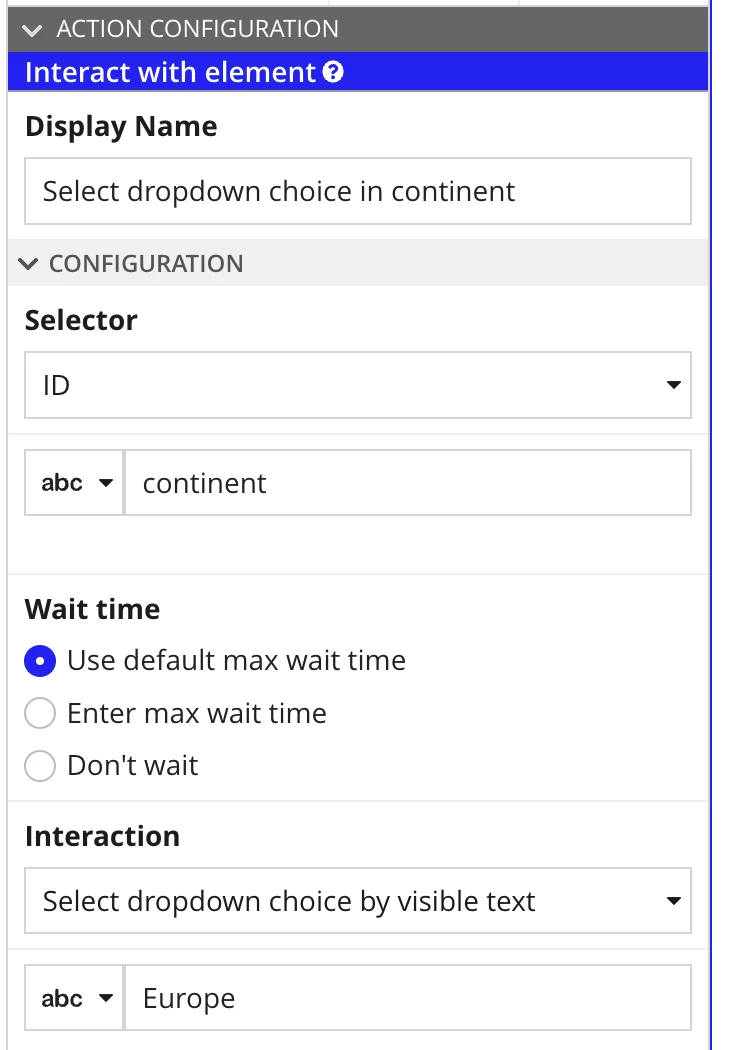

I add below an example of how I recorded the action in the Appian Task Recorder, and how the action was generated on the List Flow

Finally, if the website you are automating is public, I would appreciate if you could indicate the URL to try to help you better.
