Dropdown Updation

  • February 11, 2022
  • 6 replies
  • 0 views

I have a scenario, where there are 2 dropdown fields namely "Region" and "Country"

Choice Labels and Choice Values for "Region" dropdown field is referred to a constant (cons!LCV1_REG) and it has an array of values - Asia, Europe, Australia

Choice Labels and Choice Values for "Country" dropdown field is referred to a constant (cons!LCV!_COUN) and it has an array of values - Japan, India, Sri Lanka, Russia, Germany France, New Zealand, Samoa, Tonga

I created a decision rule (rule!LCV1_decidet) where my Region - Asia is equal to Country - Japan, India, Sri Lanka and my Region - Europe is equal to Country - Russia, Germany, France and my Region - Australia  is equal to Country - New Zealand, Tonga, Samoa

I created an interface for the same.

So lets say I have selected Region = Asia and I get a list of Countries = Japan, India, Sri Lanka. Now if I suddenly go and select another Region, it gives me an error saying that the Country value was not found.

I want my Country dropdown field to reset every time I select a Region, irrespective of a Country selected before.

I have attached the code below for the interface,

a!localVariables(
  local!region: cons!LCV1_REG,
  local!country: rule!LCV1_decide(region: ri!region),
  {
    a!columnsLayout(
      columns: {
        a!columnLayout(
          contents: {
            a!dropdownField(
              label: "Regions",
              labelPosition: "ABOVE",
              placeholder: "--- Select a Value ---",
              choiceLabels: local!region,
              choiceValues: local!region,
              value: ri!region,
              saveInto: ri!region,
              searchDisplay: "AUTO",
              validations: {}
            )
          }
        ),
        a!columnLayout(
          contents: {
            a!dropdownField(
              label: "Countries",
              labelPosition: "ABOVE",
              placeholder: "--- Select a Value ---",
              choiceLabels: local!country,
              choiceValues: local!country,
              value: ri!country,
              saveInto: ri!country,
              searchDisplay: "AUTO",
              disabled: isnull(ri!region),
              validations: {}
            )
          }
        )
      }
    )
  }
)

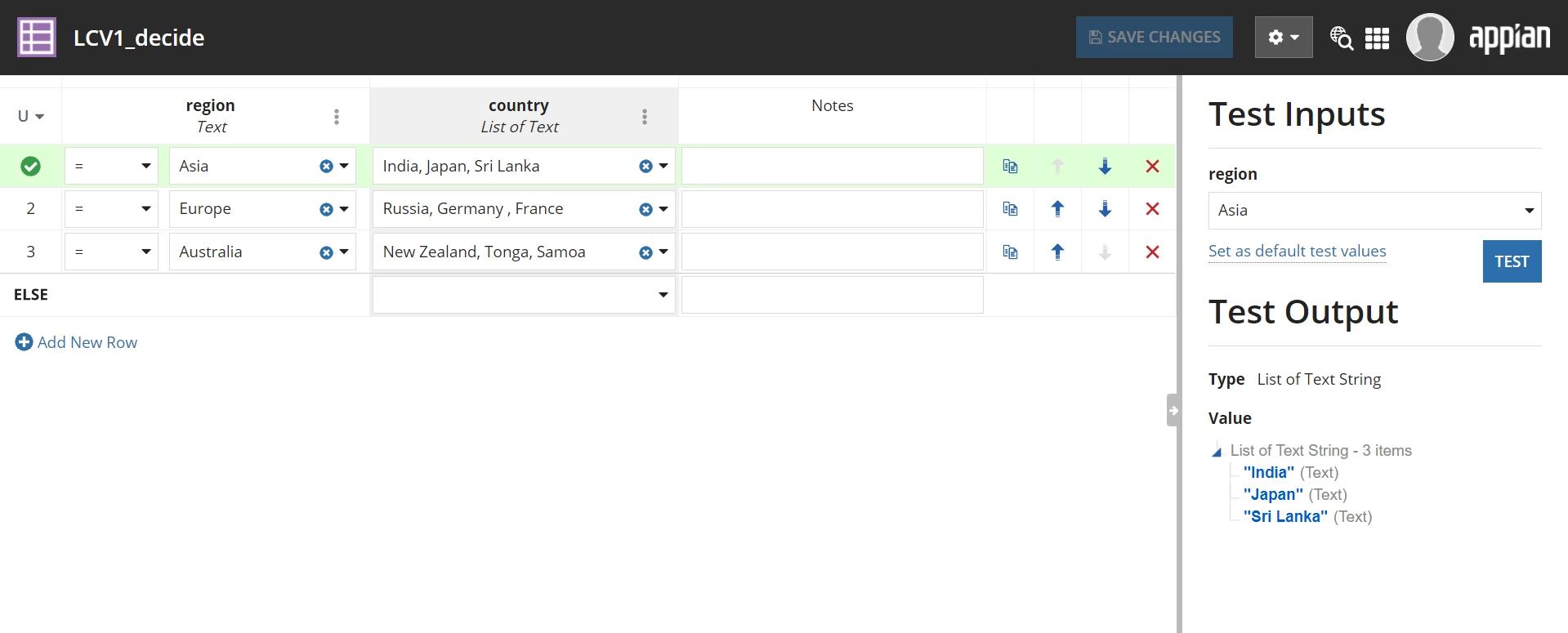

The below screenshot is of the decision rule

Can someone help me in this scenario?

Best answer by gopalk2865

hi leonclintonc0001,

you would need to make "ri!country" field null every time you change region. please see below code and try

a!dropdownField(
              label: "Regions",
              labelPosition: "ABOVE",
              placeholder: "--- Select a Value ---",
              choiceLabels: local!region,
              choiceValues: local!region,
              value: ri!region,
              saveInto: {
              ri!region,
              a!save(ri!country,null)
              },
              searchDisplay: "AUTO",
              validations: {}
            )

6 replies

stewart.burchell
February 11, 2022

You can make the the local!country a refreshVariable, and configure it to refresh every time you change the selected Region.

leonclintonc0001
February 11, 2022

Yes I tried this as well, thank you Stewart !!!

gopalk2865
Participating Frequently
February 11, 2022

hi leonclintonc0001,

you would need to make "ri!country" field null every time you change region. please see below code and try

a!dropdownField(
              label: "Regions",
              labelPosition: "ABOVE",
              placeholder: "--- Select a Value ---",
              choiceLabels: local!region,
              choiceValues: local!region,
              value: ri!region,
              saveInto: {
              ri!region,
              a!save(ri!country,null)
              },
              searchDisplay: "AUTO",
              validations: {}
            )

leonclintonc0001
February 11, 2022

Hey Gopalk, your code worked for me. Thank you so much !!!

peter.lewis
Employee
February 11, 2022

It looks like you found the answer, but I also wanted to share a similar recipe in the docs: https://docs.appian.com/suite/help/latest/recipe-configure-cascading-dropdowns.html. There's some really nice recipes there that have code you can copy / paste if you want to try some common design patterns.

leonclintonc0001
February 11, 2022

That helps as well. I am open to all kinds of solutions from the members of this community. Thank you Peter !!!
