March 2, 2024
Question

piechart to show Data

  • March 2, 2024
  • 2 replies
  • 0 views

Hi,

I am trying to show data on piechart, the field make has different data.

I want to segregate the data into let's Ford and non Ford.

How can I do that?

{
  a!pieChartField(
    data: 'recordType!{aa4ce38f-1a9d-4827-af51-e2ccb80a2c8b}AS Vehicle',
    config: a!pieChartConfig(
      primaryGrouping: a!grouping(
        field: 'recordType!{aa4ce38f-1a9d-4827-af51-e2ccb80a2c8b}AS Vehicle.fields.{7aa3dcda-863a-4271-9034-85821a2bd453}make',
        alias: "vehicleMake_primaryGrouping"
      ),
      measures: {
        a!measure(
          function: "COUNT",
          field: 'recordType!{aa4ce38f-1a9d-4827-af51-e2ccb80a2c8b}AS Vehicle.fields.{595da20e-a849-4c36-a57e-d569453c622f}vehicleID',
          alias: "vehicleId_count_measure1"
        )
      },
      sort: {
        a!sortInfo(
          field: "vehicleId_count_measure1",
          ascending: false
        )
      },
      dataLimit: 100
    ),
    label: "Vehicles by Make",
    labelPosition: "ABOVE",
    showDataLabels: true,
    showAsPercentage: true,
    colorScheme: "RAINFOREST",
    style: "DONUT",
    seriesLabelStyle: "LEGEND",
    height: "MEDIUM",
    refreshAfter: "RECORD_ACTION"
  )
}

2 replies

stefanhelzle0001
stefanhelzle0001
Brainy
March 2, 2024

Can you share a screenshot of that chart?

Did you try the reports builder?

karthikr067273
karthikr067273
March 2, 2024

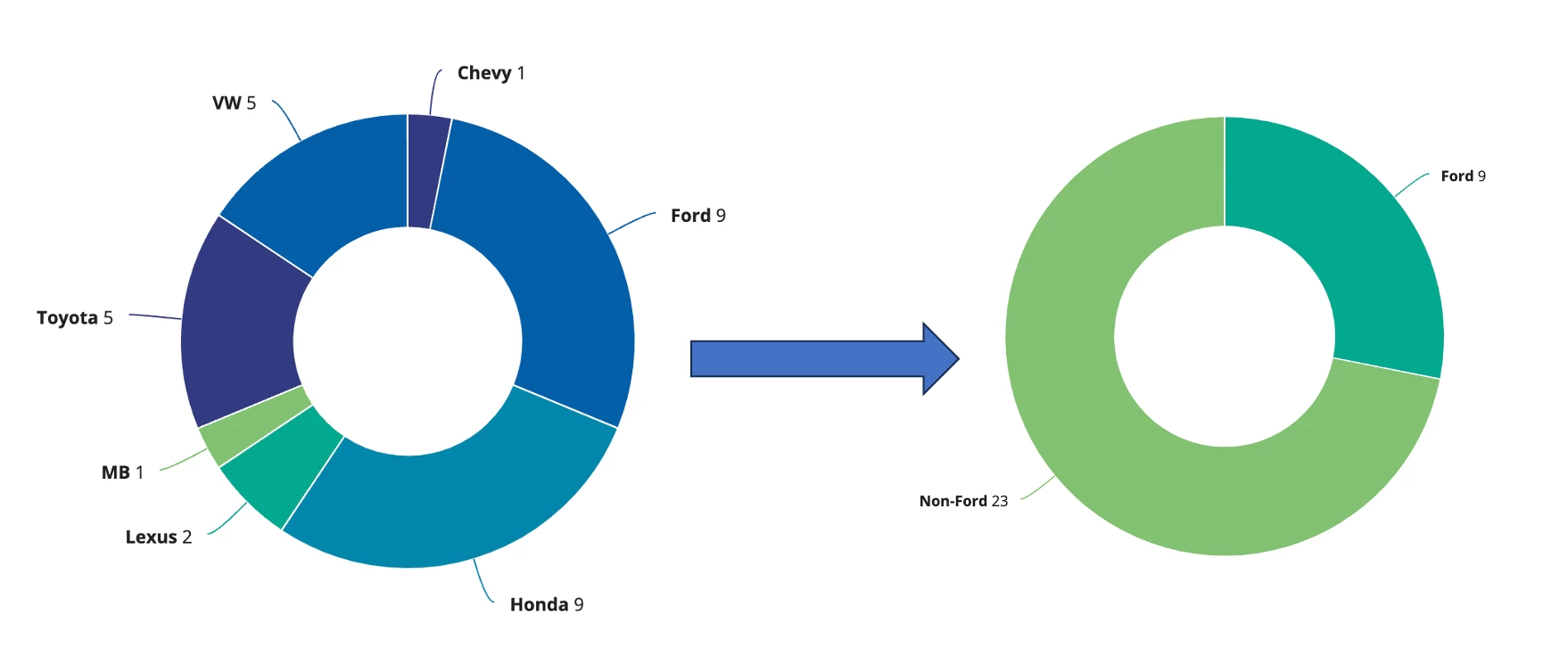

I hope you want to achieve the below requirement,

You can not achieve this with your code. You have to write something like below,

a!localVariables(
  local!fordCount: a!queryRecordType(
    recordType: 'recordType!{aa4ce38f-1a9d-4827-af51-e2ccb80a2c8b}AS Vehicle',
    fields: {},
    filters: a!queryLogicalExpression(
      operator: "AND",
      filters: {
        a!queryFilter(
          field: 'recordType!{aa4ce38f-1a9d-4827-af51-e2ccb80a2c8b}AS Vehicle.fields.{7aa3dcda-863a-4271-9034-85821a2bd453}vehicleMake',
          operator: "=",
          value: "Ford"
        )
      },
      ignoreFiltersWithEmptyValues: true
    ),
    pagingInfo: a!pagingInfo(
      startIndex: 1,
      batchSize: 100
    ),
    fetchTotalCount: true()
  ).totalCount,
  local!nonFordCount: a!queryRecordType(
    recordType: 'recordType!{aa4ce38f-1a9d-4827-af51-e2ccb80a2c8b}AS Vehicle',
    fields: {},
    filters: a!queryLogicalExpression(
      operator: "AND",
      filters: {
        a!queryFilter(
          field: 'recordType!{aa4ce38f-1a9d-4827-af51-e2ccb80a2c8b}AS Vehicle.fields.{7aa3dcda-863a-4271-9034-85821a2bd453}vehicleMake',
          operator: "<>",
          value: "Ford"
        )
      },
      ignoreFiltersWithEmptyValues: true
    ),
    pagingInfo: a!pagingInfo(
      startIndex: 1,
      batchSize: 100
    ),
    fetchTotalCount: true()
  ).totalCount,
  {
    a!pieChartField(
      label: "Pie Chart",
      labelPosition: "ABOVE",
      series: {
        a!chartSeries(label: "Ford", data: local!fordCount),
        a!chartSeries(label: "Non-Ford", data: local!nonFordCount)
      },
      showDataLabels: true,
      allowImageDownload: true,
      colorScheme: "RAINFOREST",
      style: "DONUT",
      seriesLabelStyle: "ON_CHART",
      height: "MEDIUM"
    )
  }
)

I hope this will be helpful for you.
