Problem with a!queryFilter

  • August 30, 2023
  • 4 replies
  • 0 views

Hi! I´m trying to make a list of elements (local!ListadoMateriales) to use in a dropdown. To make this list, I´m querying a database (CPF_LineasPedidos) and applying a filter (only materials where the idPedido is equal to the selected in a previous interface)

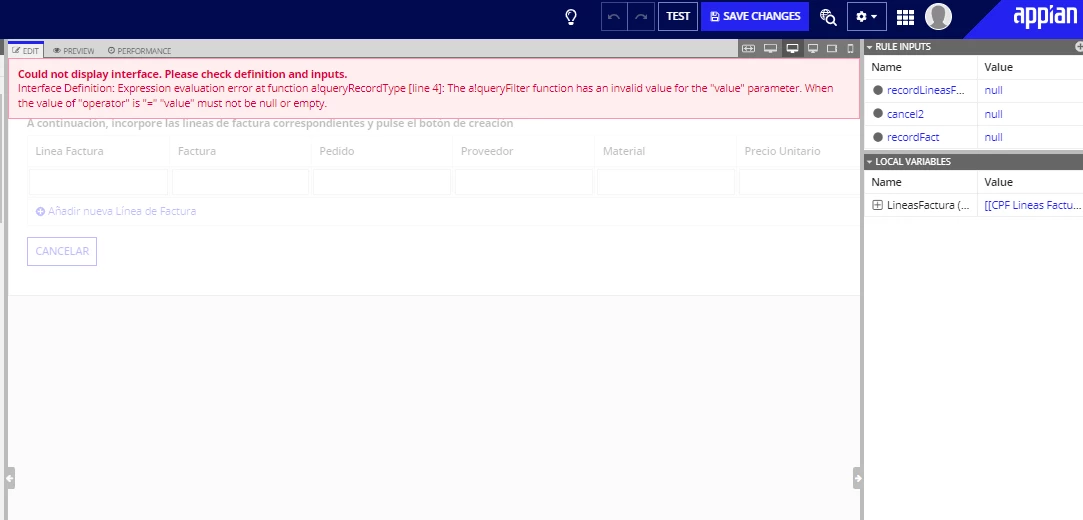

The fact here is that my filter is failing (the value must not be null or empty), I think that the "idPedido" value is not flowing from the process model into my new interface

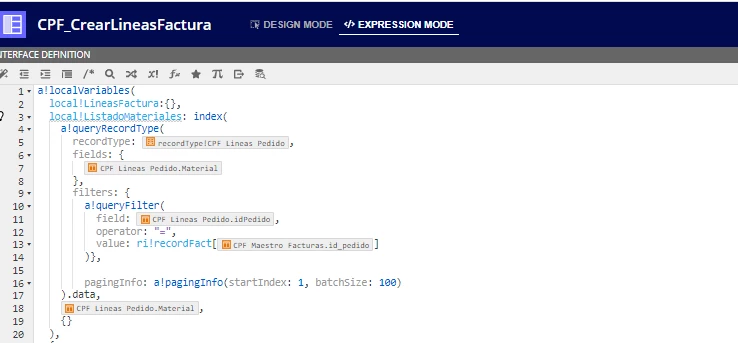

1. Capture of the code. The ri!recordFact refers to the database in which I have the idPedido

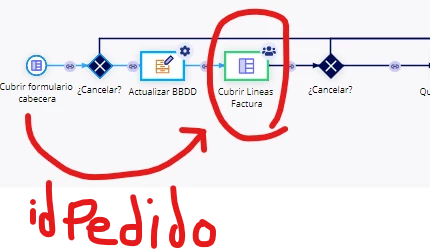

This is what I want to do:

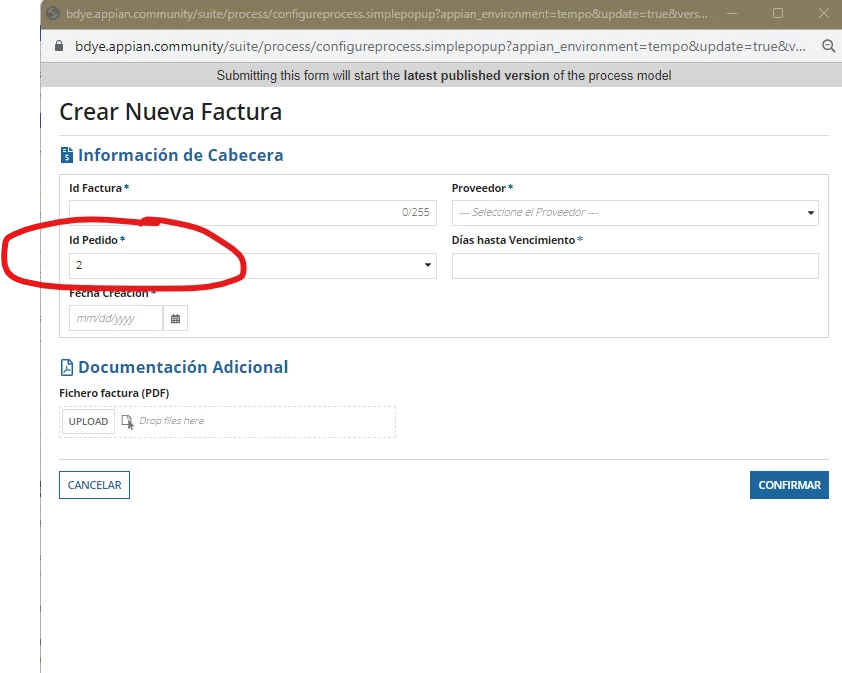

First interface (idPedido selected):

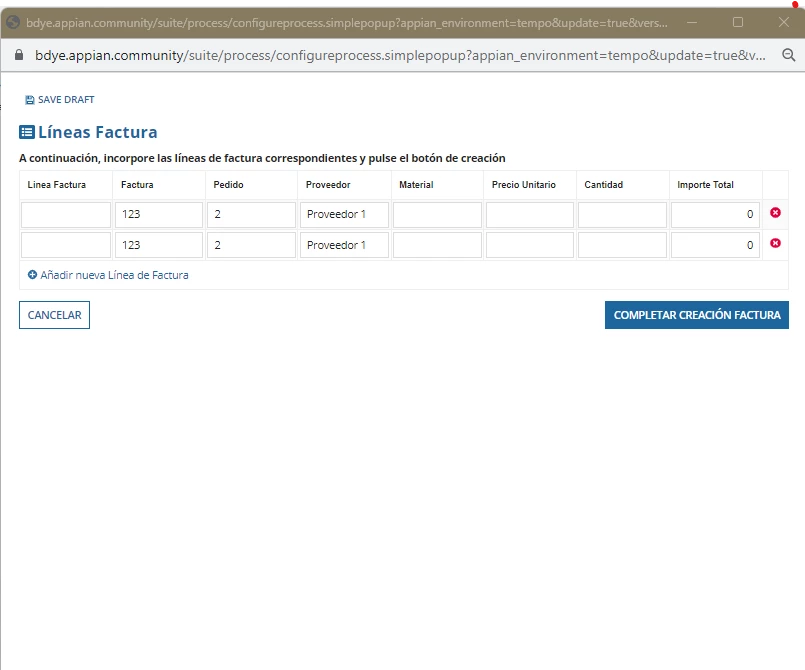

Second Interface (the one I´m editing, referred with the code in the end of the post). I want the list to make a dropdown in the "Material" column values. I add that the values Factura, Pedido and Proveedor are SAVED from the last interface referring them inside the function append (line 206)

Thanks a lot!

This is my code:

a!localVariables(
  local!LineasFactura:{},
  local!ListadoMateriales: index(
    a!queryRecordType(
      recordType: 'recordType!{495578a9-1b23-4253-8145-6418faabe727}CPF Lineas Pedido',
      fields: {
        'recordType!{495578a9-1b23-4253-8145-6418faabe727}CPF Lineas Pedido.fields.{69e9a834-b2fb-4f35-a36d-3c526c97f4ac}Material'
      },
      filters: {
        a!queryFilter(
          field: 'recordType!{495578a9-1b23-4253-8145-6418faabe727}CPF Lineas Pedido.fields.{71427dbb-12db-4f83-bd99-f625bf9af271}idPedido',
          operator: "=",
          value: ri!recordFact['recordType!{51d44df6-c727-4443-8114-aef8a7509b41}CPF Maestro Facturas.fields.{e8009662-ca1c-43da-9c72-2840463214be}id_pedido']
        )},

        pagingInfo: a!pagingInfo(startIndex: 1, batchSize: 100)
    ).data,
    'recordType!{495578a9-1b23-4253-8145-6418faabe727}CPF Lineas Pedido.fields.{69e9a834-b2fb-4f35-a36d-3c526c97f4ac}Material',
    {}
  ),
  {
    a!sectionLayout(
      label: "LÃ%ADneas Factura",
      labelIcon: "list-alt-solid",
      contents: {
        a!gridLayout(
          label: "A continuación, incorpore las lÃ%ADneas de factura correspondientes y pulse el botón de creación",
          headerCells: {
            a!gridLayoutHeaderCell(label: "Linea Factura"),
            a!gridLayoutHeaderCell(label: "Factura"),
            a!gridLayoutHeaderCell(label: "Pedido"),
            a!gridLayoutHeaderCell(label: "Proveedor"),
            a!gridLayoutHeaderCell(label: "Material"),
            a!gridLayoutHeaderCell(label: "Precio Unitario"),
            a!gridLayoutHeaderCell(label: "Cantidad"),
            a!gridLayoutHeaderCell(label: "Importe Total"),
            a!gridLayoutHeaderCell()
          },
          columnConfigs: {
            a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
            a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
            a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
            a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
            a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
            a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
            a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
            a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
            a!gridLayoutColumnConfig(width: "ICON")
          },
          rows: a!forEach(
            items: local!LineasFactura,
            expression: a!gridRowLayout(
              contents: {
                a!textField(
                  value: fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{181742a7-4305-4134-b05e-4eebc9c56292}idLineaFactura'],
                  saveInto: {
                    fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{181742a7-4305-4134-b05e-4eebc9c56292}idLineaFactura']
                  }
                ),
                a!textField(
                  value: fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{9c440183-9c71-423b-a300-eb4c3ea747fb}idFactura'],
                  saveInto: {
                    fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{9c440183-9c71-423b-a300-eb4c3ea747fb}idFactura']
                  }
                ),
                a!textField(
                  value: fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{60774c8e-9b47-486f-9fea-b32c525c05fd}idPedido'],
                  saveInto: {
                    fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{60774c8e-9b47-486f-9fea-b32c525c05fd}idPedido']
                  }
                ),
                a!textField(
                  value: fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{844be35b-6de5-434e-9c69-e7c7b8a148dd}proveedor'],
                  saveInto: {
                    fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{844be35b-6de5-434e-9c69-e7c7b8a148dd}proveedor']
                  }
                ),
                a!textField(
                  value: fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{019eb28b-727b-4e2c-8160-1bcf8a747ef1}material'],
                  saveInto: {
                    fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{019eb28b-727b-4e2c-8160-1bcf8a747ef1}material']
                  }
                ),
                a!floatingPointField(
                  value: fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit'],
                  saveInto: {
                    fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit'],
                    a!save(
                      fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{53f231a2-9bf7-40a1-af07-74373fa7bd9f}importe'],
                      if(
                        or(
                          isnull(
                            fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad']
                          ),
                          isnull(
                            fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit']
                          )
                        ),
                        0,
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad'] * fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit']
                      )
                    )
                  },
                  required: true,
                  validations: {
                    if(
                      a!isNotNullOrEmpty(
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit']
                      ) = false,
                      "",
                      if(
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit'] < 0,
                        "El precio unitario debe ser superior a cero",
                        ""
                      )
                    )
                  }
                ),
                a!integerField(
                  value: fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad'],
                  saveInto: {
                    fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad'],
                    a!save(
                      fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{53f231a2-9bf7-40a1-af07-74373fa7bd9f}importe'],
                      if(
                        or(
                          isnull(
                            fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad']
                          ),
                          isnull(
                            fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit']
                          )
                        ),
                        0,
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad'] * fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit']
                      )
                    )
                  },
                  required: true,
                  validations: {
                    if(
                      a!isNotNullOrEmpty(
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad']
                      ) = false,
                      "",
                      if(
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad'] < 1,
                        "La cantidad debe ser superior a cero",
                        ""
                      )
                    )
                  }
                ),
                a!floatingPointField(
                  value: if(
                    or(
                      isnull(
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad']
                      ),
                      isnull(
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit']
                      )
                    ),
                    0,
                    fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{b1b5fc0b-5be4-45be-8342-381cdc56017d}cantidad'] * fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{eda9bda7-ae57-44e7-a651-d097c8581021}precioUnit']
                  ),
                  saveInto: {
                    fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{53f231a2-9bf7-40a1-af07-74373fa7bd9f}importe']
                  },
                  required: true,
                  validations: {
                    if(
                      a!isNotNullOrEmpty(
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{53f231a2-9bf7-40a1-af07-74373fa7bd9f}importe']
                      ) = false,
                      "",
                      if(
                        fv!item['recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{53f231a2-9bf7-40a1-af07-74373fa7bd9f}importe'] < 0,
                        "El importe debe ser superior a cero",
                        ""
                      )
                    )
                  },
                  align: "RIGHT"
                ),
                a!richTextDisplayField(
                  value: {
                    a!richTextIcon(
                      icon: "times-circle",
                      link: a!dynamicLink(
                        value: remove(local!LineasFactura, fv!index),
                        saveInto: local!LineasFactura
                      ),
                      linkstyle: "STANDALONE",
                      color: "NEGATIVE"
                    )
                  }
                )
              }
            )
          ),

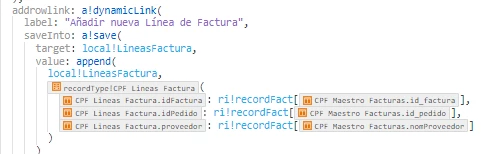

          addrowlink: a!dynamicLink(
            label: "Añadir nueva LÃ%ADnea de Factura",
            saveInto: a!save(
              target: local!LineasFactura,
              value: append(
                local!LineasFactura,
                'recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura'(
                  'recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{9c440183-9c71-423b-a300-eb4c3ea747fb}idFactura': ri!recordFact['recordType!{51d44df6-c727-4443-8114-aef8a7509b41}CPF Maestro Facturas.fields.{6f993c32-7f64-424a-859f-d779194c4a18}id_factura'],
                  'recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{60774c8e-9b47-486f-9fea-b32c525c05fd}idPedido': ri!recordFact['recordType!{51d44df6-c727-4443-8114-aef8a7509b41}CPF Maestro Facturas.fields.{e8009662-ca1c-43da-9c72-2840463214be}id_pedido'],
                  'recordType!{6e637180-b344-49d2-a1f7-f87eed0041ba}CPF Lineas Factura.fields.{844be35b-6de5-434e-9c69-e7c7b8a148dd}proveedor': ri!recordFact['recordType!{51d44df6-c727-4443-8114-aef8a7509b41}CPF Maestro Facturas.fields.{c2a60669-567e-41b8-acdd-29729912b3e5}nomProveedor']
                )
              )
            )
          )
        )
      }
    ),
    a!buttonLayout(
      primaryButtons: {
        a!buttonWidget(
          label: "Completar Creación Factura",
          saveInto: a!save(ri!recordLineasFact, local!LineasFactura
          ),
          submit: true,
          style: "PRIMARY",
          validate: true
        )
      },
      secondaryButtons: {
        a!buttonWidget(
          label: "Cancelar",
          value: true,
          saveInto: ri!cancel2,
          submit: true,
          style: "NORMAL",
          validate: false
        )
      }
    )
  }
)

    Best answer by mikes0011
    and how could I put a test value inside a concrete field of my null rule input?

    I hope you haven't been ignoring the "test" button on the interface editor, where you can either construct or query data into your different rule inputs, and save as a default testing value?!?

    4 replies

    mikes0011
    mikes0011
    Brainy
    August 30, 2023

    The error message says the value you're attempting to filter on based on ri!recordFact needs to be not null... while at the same time you've left ri!recordFact null (at least in your interface editor).  For the purposes of creating / editing / testing it at least, you'd need to set a test value for this rule input if your assumption is that one will be passed-in from the process.

    As far as whether you're actually passing in a value from the process - we'd need to see your process instance data and the task setup to see how you're attempting to pass the data into the task form, which you didn't include here.

    The Expression Guru
    C
    carlosp5114Author
    August 30, 2023

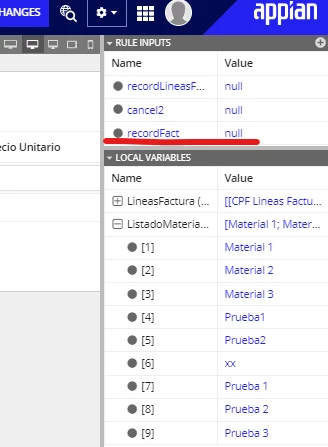

    Thanks Mike, and how could I put a test value inside a concrete field of my null rule input?

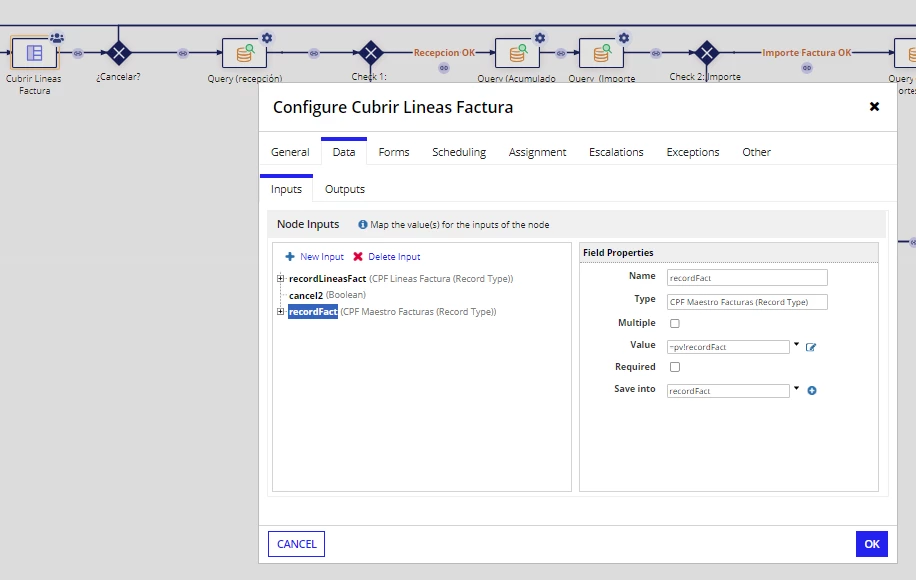

    On the other hand, I was trying to pass the recordFact values in the user input task (data --> inputs)

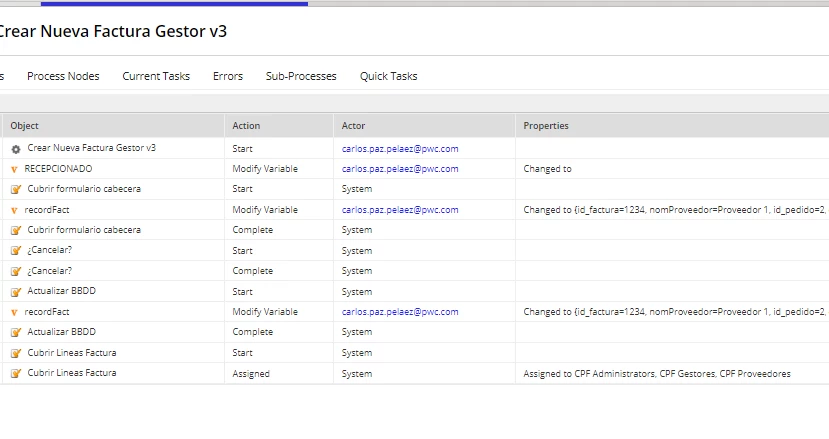

    When I run the process model, the values are correctly changed in "RecordFact" (in this case, idPedido changed to "2"):

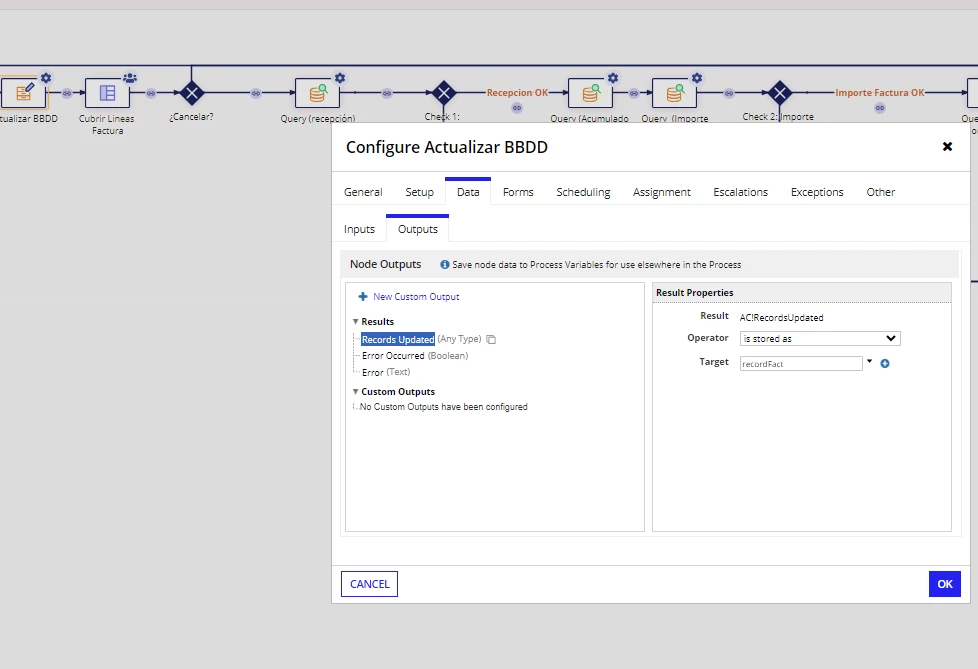

    WriteRecords SmartService

    Process Instances

    mikes0011
    mikes0011Answer
    Brainy
    August 30, 2023
    and how could I put a test value inside a concrete field of my null rule input?

    I hope you haven't been ignoring the "test" button on the interface editor, where you can either construct or query data into your different rule inputs, and save as a default testing value?!?

    The Expression Guru
