Hi Everyone, I need to Implement one grid Structure that would be like

the grid would be dynamic grid, the request Ids may depend on cif number, For Example (CIf-117907 have 5 requests (123456,12456,13456,134566,1244555) like that.

How Would I do that if someone can provide solution that would be more helpful, If more details required please let me know

Thanks.

somasundaram.d

Can you please elaborate more

S

siddagangus0001Author

ok, I need to implement one grid with all request Ids related to the cif. One cif may have one one request,other cif may have multiple request. The grid structure as shown above and dynamic grid. examples( cif-112233 may have 123456,786535 requests and other cif may have cif-345678 ,requests(432167,654328,876543,7655433) like so on

S

siddagangus0001Author

)

a!localVariables(
  local!approvedCAs: rule!CR_QE_getApprovedCAsByFilters(
    cif_int: ri!cif_int,
    requestId_int: ri!requestId_int
  ),
  local!selectedButton: joinarray(
    {
      index(
        ri!crModuleStatus_cdt,
        "requestId_int",
        {}
      ) & if(
        or(
          rule!APN_isBlank(
            index(
              ri!crModuleStatus_cdt,
              "versionNo_int",
              {}
            )
          ),
          rule!APN_isZero(
            index(
              ri!crModuleStatus_cdt,
              "versionNo_int",
              {}
            )
          )
        ),
        "",
        "." & index(
          ri!crModuleStatus_cdt,
          "versionNo_int",
          {}
        )
      ),
      index(
        ri!crModuleStatus_cdt,
        "actionType_txt",
        {}
      ),
      index(
        ri!crModuleStatus_cdt,
        "approvedOn_dt",
        {}
      )
    },
    " - "
  ),
  {
    rule!CR_APP_RT_displayApproverInfoNote(
      message_txt: "Select workflow to see the Request data"
    ),
    a!sideBySideLayout(
      items: {
        a!sideBySideItem(
          item: a!buttonArrayLayout(
            buttons: {
              a!forEach(
                items: joinarray(
                  {
                    index(
                      ri!crModuleStatus_cdt,
                      "requestId_int",

                      {}
                    ) & if(
                      or(
                        rule!APN_isBlank(
                          index(
                            ri!crModuleStatus_cdt,
                            "versionNo_int",
                            {}
                          )
                        ),
                        rule!APN_isZero(
                          index(
                            ri!crModuleStatus_cdt,
                            "versionNo_int",
                            {}
                          )
                        )
                      ),
                      "",
                      "." & index(
                        ri!crModuleStatus_cdt,
                        "versionNo_int",
                        {}
                      ),

                    ),
                    index(
                      ri!crModuleStatus_cdt,
                      "actionType_txt",
                      {}
                    ),
                    index(
                      ri!crModuleStatus_cdt,
                      "approvedOn_dt",
                      {}
                    )
                  },
                  " - "
                ),
                expression: {
                  a!buttonWidget(
                    label: fv!item,
                    value: fv!item,
                    saveInto: local!selectedButton,
                    size: if(
                      local!selectedButton = fv!item,
                      "STANDARD",
                      "SMALL"
                    ),
                    style: if(
                      local!selectedButton = fv!item,
                      "PRIMARY",
                      "LINK"
                    )
                  )
                }
              )
            },
            align: "START",
            showWhen: ri!workFlow_bool
          )
        ),
        a!sideBySideItem(
          item: a!buttonArrayLayout(
            buttons: {
              a!buttonWidget(
                label: "Completed Requests",
                style: "PRIMARY"
              )
            },
            align: "START",

          )
        ),

      }
    )
  }
)

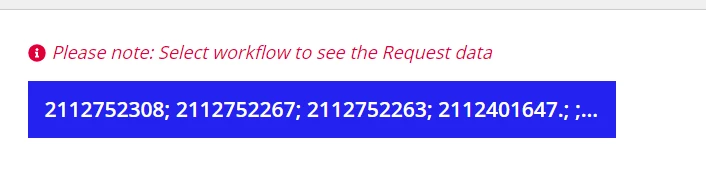

And the result I am getting as this But Result should be in seperate button /action ,How would I achieve this?

mikes0011

Brainy

I usually implement such things with multiple entries listed in one column cell - one example is what Shubham provided already, though often I simply display each entry on its own line (and if there can potentially be many many entries, i'll only show the first few unless the user clicks an internal dynamic link to expand the selection).

Y

yogip3177

As suggested by Mike, you can display a list:

a!localVariables(
  local!data: {
    a!map(cif: 1, requestId: { 1000, 1001, 1002 }),
    a!map(cif: 2, requestId: { 2000 })
  },
  a!gridField(
    label: "Read-only Grid",
    labelPosition: "ABOVE",
    data: local!data,
    columns: {
      a!gridColumn(label: "CIF", value: fv!row.cif),
      a!gridColumn(
        label: "CIF",
        value: a!richTextDisplayField(
          value: a!richTextBulletedList(items: fv!row.requestId)
        )
      )
    }
  )
)

S

siddagangus0001Author

a!localVariables(
  local!selectedButton,
  local!moduleStatus: a!map(
    request: rule!CR_QE_getApprovedCAsByFilters(
      requestId_int: ri!requestId_int,
      cif_int: ri!cif_int,
      status_txt: "APPROVED"
    )
  ),
  {
    a!buttonArrayLayout(
      buttons: a!forEach(
        items: local!moduleStatus.request,
        expression: a!buttonWidget(
          label: joinarray(
            {
              fv!item.requestId_int & fv!item.actionType_txt & fv!item.approvedOn_dt
            },
            " - "
          ),
          value: joinarray(
            {
              fv!item.requestId_int & fv!item.actionType_txt & fv!item.approvedOn_dt
            },
            " - "
          ),
          saveInto: local!selectedButton
        )
      ),
      marginAbove: "MORE"
    ),
    a!gridLayout(
      headerCells: {
        a!gridLayoutHeaderCell(label: "DropDown")
      },
      columnConfigs: a!gridLayoutColumnConfig(width: "NARROW"),
      rows: a!gridRowLayout(
        contents: a!dropdownField(
          label: "",
          placeholder: "Please Select Values",
          choiceLabels: cons!CR_APP_REQUEST_SECTION_NAMES,
          choiceValues: cons!CR_APP_REQUEST_SECTION_NAMES,
          value: "",
          saveInto: ""
        )
      )
    )
  }
)

Hi Thanks for your help and On top of that code trying to achieve dropdown on selecting each request,let me know your input on this please.
